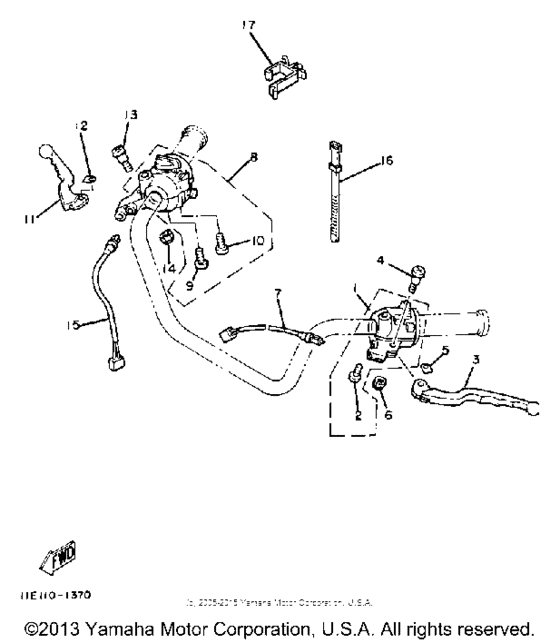

Handle switch & lever Diagram Yamaha SR185
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 185
- Model
- SR185
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-W8291-00-00
Lever Holder Asy L
|
5H0-W8291-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3MW-82910-00-00
Lever Holder Assy (Left)
|
3MW-82910-00-00 |
— | ||
|
2
|
2
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
2
|
2
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
2
|
2
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
3
|
3
4G3-83912-00-00 Lever L |
4G3-83912-00-00 |
from US $26.21 |
||
|
4
|
4
4G3-83915-00-00 Screw, Spec''l Shape |
4G3-83915-00-00 |
from US $2.69 |
||
| replacement | |||||
|
4
|
4
90149-05120-00 Screw, Spec''l Shape |
90149-05120-00 |
from US $2.69 |
||
|
5
|
5
3M5-83929-00-00
Plate, Spring
|
3M5-83929-00-00 |
— | ||
|
6
|
6
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
6
|
6
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
7
|
7
3Y6-82917-00-00 Front Stop Switch AssyAS |
3Y6-82917-00-00 |
US $23.80 |
||
|
8
|
8
5H0-W8292-00-00
Lever Holder Assembly R
|
5H0-W8292-00-00 |
— | ||
|
9
|
9
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
9
|
9
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
9
|
9
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
10
|
10
985-01050-40-00
Screw, Pan Head
|
985-01050-40-00 |
— | ||
| replacements | |||||
|
10
|
10
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
10
|
10
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
11
|
11
4G3-83922-00-00 Lever R |
4G3-83922-00-00 |
from US $14.36 |
||
|
12
|
12
3M5-83929-00-00
Plate, Spring
|
3M5-83929-00-00 |
— | ||
|
13
|
13
4G3-83915-00-00 Screw, Spec''l Shape |
4G3-83915-00-00 |
from US $2.69 |
||
| replacement | |||||
|
13
|
13
90149-05120-00 Screw, Spec''l Shape |
90149-05120-00 |
from US $2.69 |
||
|
14
|
14
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
14
|
14
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
15
|
15
5H0-83980-00-00 Front Stop Switch AsAS |
5H0-83980-00-00 |
from US $18.95 |
||
| replacements | |||||
|
15
|
15
5H0-83980-09-00 Front Stop Switch AssyAS |
5H0-83980-09-00 |
from US $28.02 |
||
|
15
|
15
3Y6-82917-00-00 Front Stop Switch AssyAS |
3Y6-82917-00-00 |
US $23.80 |
||
|
16
|
16
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
90464-16025-00 Clamp |
90464-16025-00 |
from US $1.52 |
||
