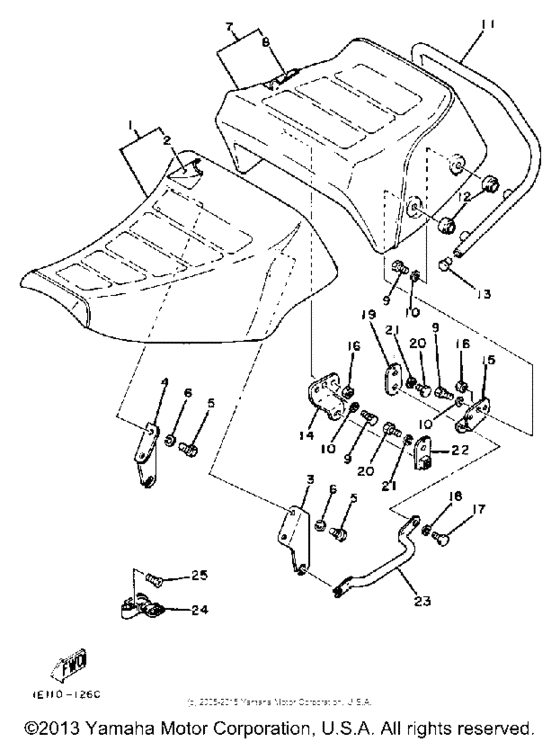

Seat Diagram Yamaha SR185
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 185
- Model
- SR185
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11E-W2471-00-00
Single Seat Assembly
|
11E-W2471-00-00 |
— | ||
|
2
|
2
11E-24731-00-00
Cover, Double Seat
|
11E-24731-00-00 |
— | ||
|
3
|
3
11E-24718-00-00
Bracket, Seat
|
11E-24718-00-00 |
— | ||
|
4
|
4
11E-24728-00-00
Bracket, Seat
|
11E-24728-00-00 |
— | ||
|
5
|
5
97313-06040-00 Bolt (682)682 |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
97095-06040-00 Bolt682 |
97095-06040-00 |
from US $1.39 |
||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
11E-W2477-00-00
Tandem Seat Assembly
|
11E-W2477-00-00 |
— | ||
|
8
|
8
11E-24751-00-00
Cover, Tandem Seat
|
11E-24751-00-00 |
— | ||
|
9
|
9
97011-08016-00 Bolt(2Vy) |
97011-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
11
|
11
11E-24773-00-00
Handle, Seat
|
11E-24773-00-00 |
— | ||
|
12
|
12
1T4-24796-00-00 Cover |
1T4-24796-00-00 |
from US $6.25 |
||
|
13
|
13
90338-15110-00 Plug |
90338-15110-00 |
from US $1.84 |
||
|
14
|
14
11E-24738-00-00
Bracket, Seat
|
11E-24738-00-00 |
— | ||
|
15
|
15
11E-24748-00-00
Bracket, Seat
|
11E-24748-00-00 |
— | ||
|
16
|
16
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
17
|
17
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
17
|
17
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
17
|
17
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
11E-21341-00-00
Bracket, Seat 1
|
11E-21341-00-00 |
— | ||
|
20
|
20
97011-08016-00 Bolt(2Vy) |
97011-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
20
|
20
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
22
|
22
11E-21342-00-00
Bracket, Seat 2
|
11E-21342-00-00 |
— | ||
|
23
|
23
11E-21165-00-00
Handle, Standing
|
11E-21165-00-00 |
— | ||
|
24
|
24
55E-21308-00-00 Helmet Hanger Assy |
55E-21308-00-00 |
from US $59.13 |
||
| replacement | |||||
|
24
|
24
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
25
|
25
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
25
|
25
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
25
|
25
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
