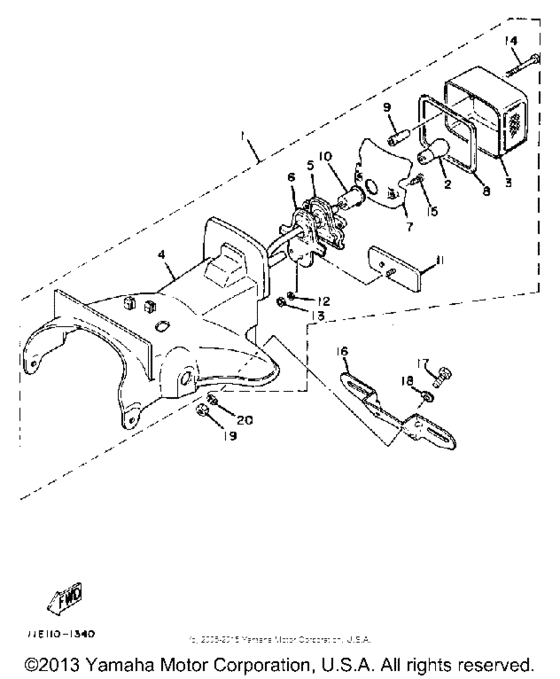

Taillight Diagram Yamaha SR185
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 185
- Model
- SR185
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-84700-60-G6
Taillight Assembly
|
5H0-84700-60-G6 |
— | ||
|
1
|
1
5H0-84700-60-4H
Taillight Assembly
|
5H0-84700-60-4H |
— | ||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
3
|
3
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $47.80 |
||
|
4
|
4
5H0-21611-00-33
Fender, Rear
|
5H0-21611-00-33 |
— | ||
|
5
|
5
5H0-84712-00-00
Seat, Base
|
5H0-84712-00-00 |
— | ||
|
6
|
6
5H0-84713-00-00
Holder, Base Seat
|
5H0-84713-00-00 |
— | ||
|
7
|
7
3Y1-84531-00-00 Reflecter, Tail Light |
3Y1-84531-00-00 |
from US $15.26 |
||
|
8
|
8
3Y1-84545-00-00 Seal |
3Y1-84545-00-00 |
from US $9.49 |
||
| replacement | |||||
|
8
|
8
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $9.78 |
||
|
9
|
9
5H0-84729-00-00
Spacer
|
5H0-84729-00-00 |
— | ||
|
10
|
10
5H0-84719-00-00
Socket Cord
|
5H0-84719-00-00 |
— | ||
|
11
|
11
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
14
|
14
3Y1-84524-00-00 Screw, Lens Fitting |
3Y1-84524-00-00 |
from US $3.40 |
||
|
15
|
15
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
16
|
16
5H0-84751-00-00
Bracket, License
|
5H0-84751-00-00 |
— | ||
|
17
|
17
970-16060-16-00
Bolt
|
970-16060-16-00 |
— | ||
| replacement | |||||
|
17
|
17
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
18
|
18
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
