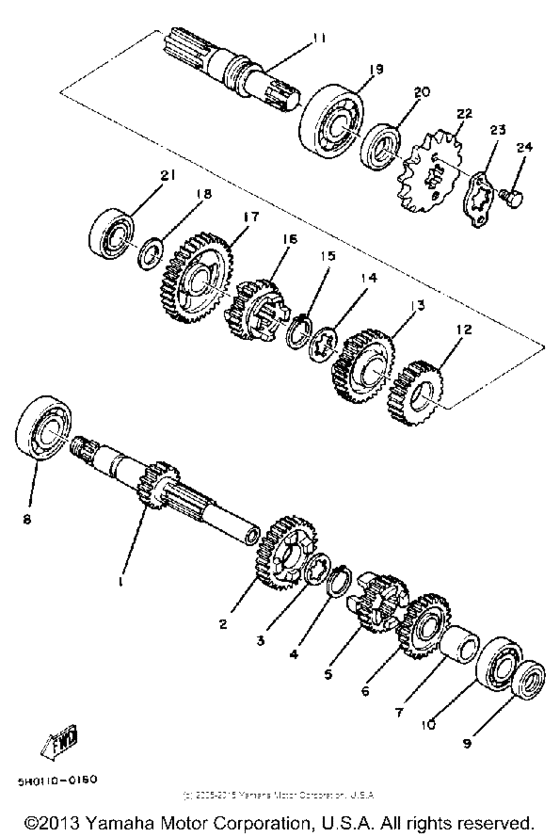

Transmission Diagram Yamaha SR185
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 185
- Model
- SR185
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5H0-17411-01-00
Axle, Main
|
5H0-17411-01-00 |
— | ||
|
2
|
2
5H0-17141-01-00 Gear, 4Th Pinion (29T)4TH PINION 29T |
5H0-17141-01-00 |
US $57.47 |
||
| replacement | |||||
|
2
|
2
5MP-17161-00-00 Gear, 6Th Pinion (29T)4TH PINION 29T |
5MP-17161-00-00 |
from US $57.47 |
||
|
3
|
3
90209-16209-00 Washer |
90209-16209-00 |
from US $1.84 |
||
|
4
|
4
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
5
|
5
5H0-17121-01-00 Gear, 2Nd Pinion (22T)2ND PINION 22T |
5H0-17121-01-00 |
from US $33.72 |
||
|
6
|
6
5H0-17131-01-00
Gear, 3Rd Pinion
3RD PINION |
5H0-17131-01-00 |
— | ||
|
7
|
7
903-87155-E5-00
Collar
|
903-87155-E5-00 |
— | ||
|
8
|
8
933-06204-21-00
Bearing
|
933-06204-21-00 |
— | ||
| replacement | |||||
|
8
|
8
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.53 |
||
|
9
|
9
93101-15101-00 Oil Seal |
93101-15101-00 |
from US $5.81 |
||
|
10
|
10
93306-20211-00 Bearing (B6202) |
93306-20211-00 |
from US $19.13 |
||
|
11
|
11
5H0-17421-01-00
Axle, Drive
|
5H0-17421-01-00 |
— | ||
|
12
|
12
5H0-17231-01-00
Gear, 3Rd Wheel
3RD WHEEL |
5H0-17231-01-00 |
— | ||
|
13
|
13
5H0-17221-01-00
Gear, 2Nd Wheel
2ND WHEEL |
5H0-17221-01-00 |
— | ||
|
14
|
14
90209-18208-00 Washer |
90209-18208-00 |
from US $1.84 |
||
|
15
|
15
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.81 |
||
|
16
|
16
5H0-17241-01-00
Gear, 4Th Wheel (23T)
4TH WHEEL 23T |
5H0-17241-01-00 |
— | ||
|
17
|
17
5H0-17211-01-00 Gear, 1St Wheel1ST WHEEL |
5H0-17211-01-00 |
from US $71.42 |
||
|
18
|
18
90201-154E8-00 Washer, Plate (4L0) |
90201-154E8-00 |
from US $1.84 |
||
|
19
|
19
93306-30424-00 Bearing |
93306-30424-00 |
from US $26.78 |
||
| replacement | |||||
|
19
|
19
933-06304-43-00 Bearing (B6304A3) |
933-06304-43-00 |
from US $21.22 |
||
|
20
|
20
93102-20242-00 Oil Seal |
93102-20242-00 |
from US $8.21 |
||
| replacement | |||||
|
20
|
20
93102-20004-00 Oil Seal |
93102-20004-00 |
from US $9.35 |
||
|
21
|
21
93306-20211-00 Bearing (B6202) |
93306-20211-00 |
from US $19.13 |
||
|
22
|
22
93822-15070-00 Sprocket, Drive 15T15T |
93822-15070-00 |
from US $20.38 |
||
|
23
|
23
5H0-17456-00-00 Holder, Sprocket |
5H0-17456-00-00 |
from US $6.94 |
||
|
24
|
24
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
24
|
24
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
