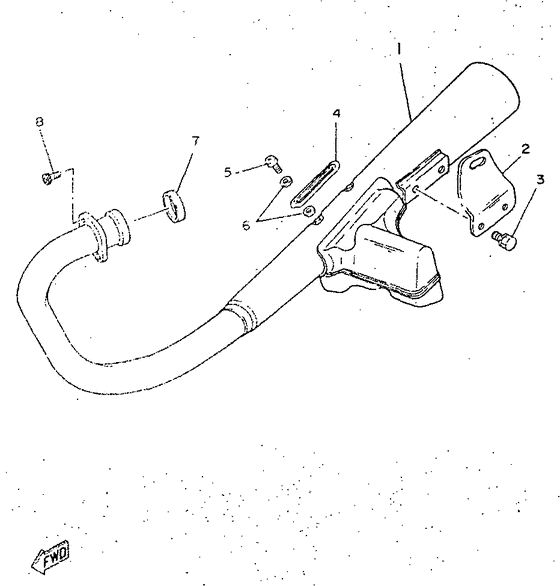

Exhaust Diagram Yamaha SR250 SR250 Classic
- Year
- 1996
- Colour
- Deep Orange Candy 1 (DOC1; 0512)
- Model code
- 21L2
- Sales region
- Greece (999)
- Engine Capacity
- 250
- Model
- SR250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
21L-E4701-00-00
Muffler Comp
|
21L-E4701-00-00 |
— | ||
| replacement | |||||
|
01
|
01
21L-E4710-20-00
Muffler Assy 1
|
21L-E4710-20-00 |
— | ||
|
02
|
02
21L-E4771-00-00
Stay, Muffler 1
|
21L-E4771-00-00 |
— | ||
|
03
|
03
97522-08014-00
Bolt, With Washer
|
97522-08014-00 |
— | ||
| replacement | |||||
|
03
|
03
97522-08414-00
Bolt
|
97522-08414-00 |
— | ||
|
04
|
04
21L-E4718-00-00
Protector, Muffler 1
|
21L-E4718-00-00 |
— | ||
|
05
|
05
98903-06008-00 Screw, Bind (2H9) |
98903-06008-00 |
US $1.42 |
||
| replacement | |||||
|
05
|
05
98980-06008-00 Screw, Bind |
98980-06008-00 |
from US $1.42 |
||
|
06
|
06
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
06
|
06
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
07
|
07
4BE-14613-00-00 Gasket, Exhaust Pipe |
4BE-14613-00-00 |
from US $2.70 |
||
|
08
|
08
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
08
|
08
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
