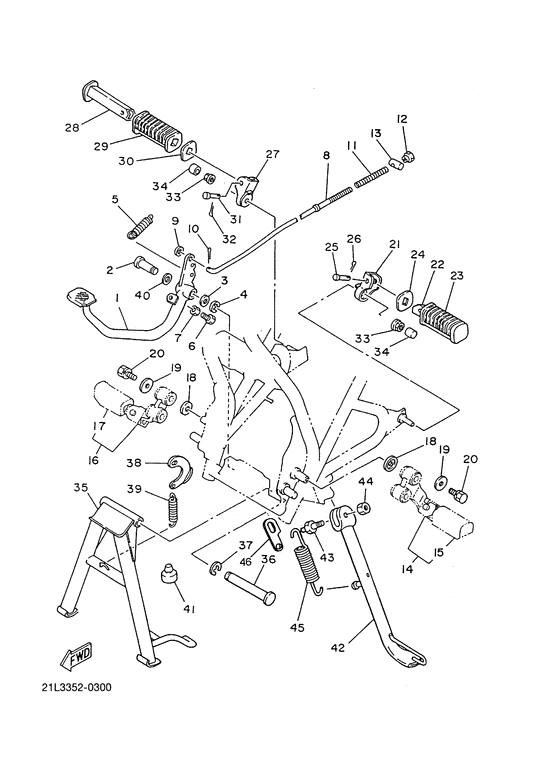

Caballete. estriberas Diagram Yamaha SR250 SR250 Classic
- Year
- 2000
- Model code
- 21L3
- Sales region
- Spain (999)
- Engine Capacity
- 250
- Model
- SR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
21L-F7211-00-90
Pedal, Brake
|
21L-F7211-00-90 |
— | ||
|
02
|
02
21L-F7212-01-00
Shaft, Brake Pedal
|
21L-F7212-01-00 |
— | ||
|
03
|
03
90201-15818-00
Washer, Plate
|
90201-15818-00 |
— | ||
|
04
|
04
93430-12806-00
Circlip
|
93430-12806-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
90506-23045-00 Spring, Tension |
90506-23045-00 |
from US $3.92 |
||
|
06
|
06
90153-06801-00
Screw, Hexagon
|
90153-06801-00 |
— | ||
|
07
|
07
9530N-06600-00 Nut,hex |
9530N-06600-00 |
from US $1.39 |
||
| replacement | |||||
|
07
|
07
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
08
|
08
21L-F7231-01-00
Rod, Brake
|
21L-F7231-01-00 |
— | ||
|
09
|
09
9290L-06200-00 Washer, Plain |
9290L-06200-00 |
from US $1.28 |
||
| replacement | |||||
|
09
|
09
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
10
|
10
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
10
|
10
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
10
|
10
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
11
|
11
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.81 |
||
|
12
|
12
90179-06176-00 Nut (525) |
90179-06176-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
13
|
13
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
14
|
14
21L-F7410-00-00
Front Footrest Assy (Left)
|
21L-F7410-00-00 |
— | ||
|
15
|
15
21L-F7413-00-00
Cover, Footrest
|
21L-F7413-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4L0-27423-00-00 Cover, Footrest |
4L0-27423-00-00 |
from US $36.06 |
||
|
16
|
16
21L-F7420-00-00
Front Footrest Assy (Right)
|
21L-F7420-00-00 |
— | ||
|
17
|
17
21L-F7413-00-00
Cover, Footrest
|
21L-F7413-00-00 |
— | ||
| replacement | |||||
|
17
|
17
4L0-27423-00-00 Cover, Footrest |
4L0-27423-00-00 |
from US $36.06 |
||
|
18
|
18
90209-12808-00
Washer
|
90209-12808-00 |
— | ||
|
19
|
19
90209-08805-00
Washer
|
90209-08805-00 |
— | ||
|
20
|
20
9752L-08416-00
Bolt, with washer
|
9752L-08416-00 |
— | ||
|
21
|
21
21L-F7432-00-00
Bracket 1
|
21L-F7432-00-00 |
— | ||
|
22
|
22
21L-F7431-00-00
Footrest, Rear 1
|
21L-F7431-00-00 |
— | ||
|
23
|
23
21L-F7433-00-00
Cover, Rear Footrest
|
21L-F7433-00-00 |
— | ||
|
24
|
24
90209-18807-00
Washer
|
90209-18807-00 |
— | ||
|
25
|
25
90240-06042-00 Pin, Clevis |
90240-06042-00 |
from US $3.92 |
||
|
26
|
26
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
26
|
26
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
27
|
27
21L-F7442-00-00
Bracket 2
|
21L-F7442-00-00 |
— | ||
|
28
|
28
21L-F7441-00-00
Footrest, Rear 2
|
21L-F7441-00-00 |
— | ||
|
29
|
29
21L-F7433-00-00
Cover, Rear Footrest
|
21L-F7433-00-00 |
— | ||
|
30
|
30
90209-18807-00
Washer
|
90209-18807-00 |
— | ||
|
31
|
31
90240-06042-00 Pin, Clevis |
90240-06042-00 |
from US $3.92 |
||
|
32
|
32
914-01160-12-00
Pin, Cotter
|
914-01160-12-00 |
— | ||
| replacement | |||||
|
32
|
32
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
33
|
33
90185-10840-00
Tuerca
|
90185-10840-00 |
— | ||
| replacement | |||||
|
33
|
33
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
34
|
34
21L-F1399-00-00
Cap
|
21L-F1399-00-00 |
— | ||
|
35
|
35
21L-F7111-00-33
Stand, Main
|
21L-F7111-00-33 |
— | ||
|
36
|
36
21L-F7112-01-00
Shaft, Main Stand
|
21L-F7112-01-00 |
— | ||
|
37
|
37
93430-12806-00
Circlip
|
93430-12806-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
21L-F7115-00-00
Link, Main Stand
|
21L-F7115-00-00 |
— | ||
|
39
|
39
90506-32056-00 Spring, Tension (174-27116-00) |
90506-32056-00 |
from US $5.90 |
||
|
40
|
40
90201-15818-00
Washer, Plate
|
90201-15818-00 |
— | ||
|
41
|
41
21L-F7114-00-00
Stopper, Main Stand
|
21L-F7114-00-00 |
— | ||
|
42
|
42
21L-F7311-00-33
Stand, Side
|
21L-F7311-00-33 |
— | ||
| replacement | |||||
|
42
|
42
21L-F7311-00-00
Stand, Side
|
21L-F7311-00-00 |
— | ||
|
43
|
43
21L-F7317-00-00
Bolt
|
21L-F7317-00-00 |
— | ||
|
44
|
44
90185-08055-00 Nut, Self-Locking |
90185-08055-00 |
from US $1.35 |
||
| replacement | |||||
|
44
|
44
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
45
|
45
21L-F7316-00-00
Spring, side stand
|
21L-F7316-00-00 |
— | ||
|
46
|
46
21L-F7315-00-00
Link, side stand
|
21L-F7315-00-00 |
— | ||
