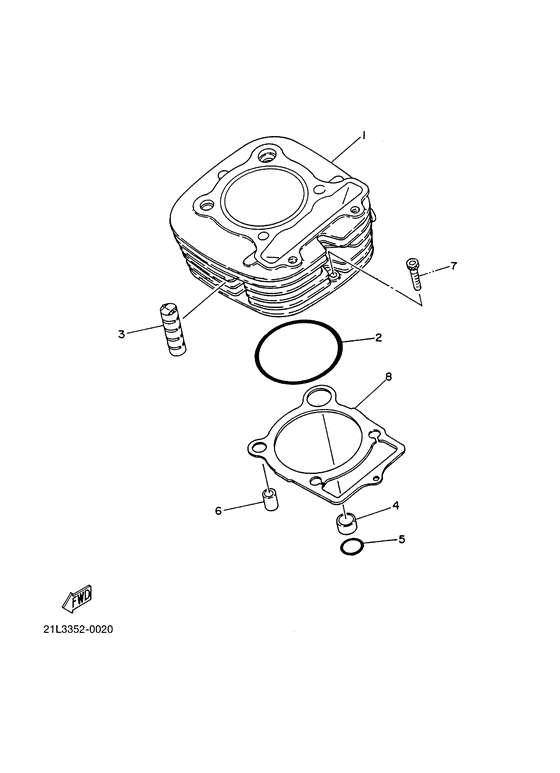

Cilindro Diagram Yamaha SR250 SR250 Classic
- Year
- 2000
- Model code
- 21L3
- Sales region
- Spain (999)
- Engine Capacity
- 250
- Model
- SR250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
21L-11310-00-00
Cylinder
|
21L-11310-00-00 |
— | ||
|
02
|
02
93210-81411-00 O-Ring |
93210-81411-00 |
from US $3.72 |
||
|
03
|
03
3Y1-11162-00-00 Absorber 3 |
3Y1-11162-00-00 |
from US $3.26 |
||
| replacement | |||||
|
03
|
03
583-11127-00-00 Absorber 3 |
583-11127-00-00 |
from US $4.03 |
||
|
04
|
04
90387-16547-00 Collar |
90387-16547-00 |
from US $2.70 |
||
|
05
|
05
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.81 |
||
|
06
|
06
99530-14D16-00
Pin, dowel
|
99530-14D16-00 |
— | ||
|
07
|
07
913-17060-30-00
Bolt
|
913-17060-30-00 |
— | ||
| replacement | |||||
|
07
|
07
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
08
|
08
3NU-11351-01-00 Gasket, Cylinder |
3NU-11351-01-00 |
from US $8.22 |
||
