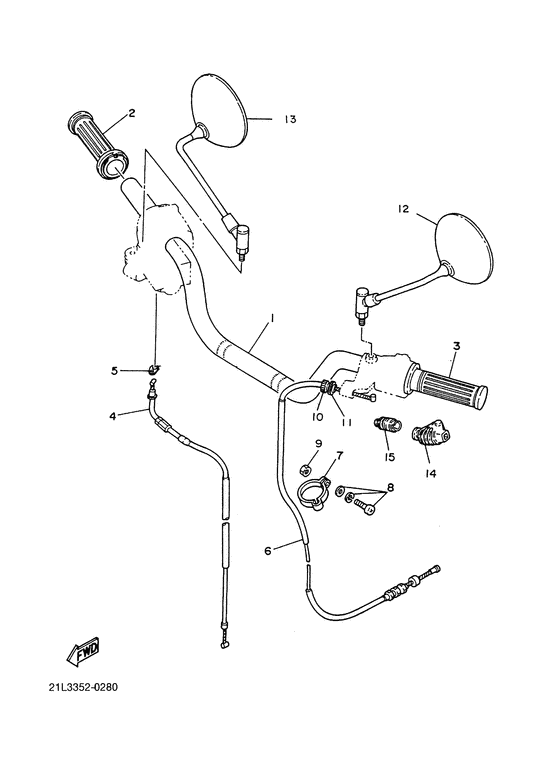

Manillar. cables Diagram Yamaha SR250 SR250 Classic
- Year
- 2000
- Model code
- 21L3
- Sales region
- Spain (999)
- Engine Capacity
- 250
- Model
- SR250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
21L-F6111-A0-00
Handlebar
|
21L-F6111-A0-00 |
— | ||
|
02
|
02
21L-F6240-00-00
Grip Assy
|
21L-F6240-00-00 |
— | ||
|
03
|
03
21L-F6241-00-00
Grip
|
21L-F6241-00-00 |
— | ||
|
04
|
04
21L-F6311-00-00
Cable, Throttle 1
|
21L-F6311-00-00 |
— | ||
|
05
|
05
21L-F6393-00-00
Holder
|
21L-F6393-00-00 |
— | ||
|
06
|
06
21L-F6335-00-00
Cable, clutch
|
21L-F6335-00-00 |
— | ||
|
07
|
07
21L-F6397-00-00
Band
|
21L-F6397-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
9760L-05316-00
Screw, pan head with washer
|
9760L-05316-00 |
— | ||
|
09
|
09
9530L-05600-00
Nut
|
9530L-05600-00 |
— | ||
|
10
|
10
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
10
|
10
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
12
|
12
21L-F6280-20-00
Espejo Retrovisor
|
21L-F6280-20-00 |
— | ||
|
13
|
13
21L-F6290-20-00
Rear view mirror assy (right)
|
21L-F6290-20-00 |
— | ||
|
14
|
14
21L-F6372-01-00
Cover, Handle Lever 1
|
21L-F6372-01-00 |
— | ||
|
15
|
15
21L-F6339-00-00
Boot
|
21L-F6339-00-00 |
— | ||
