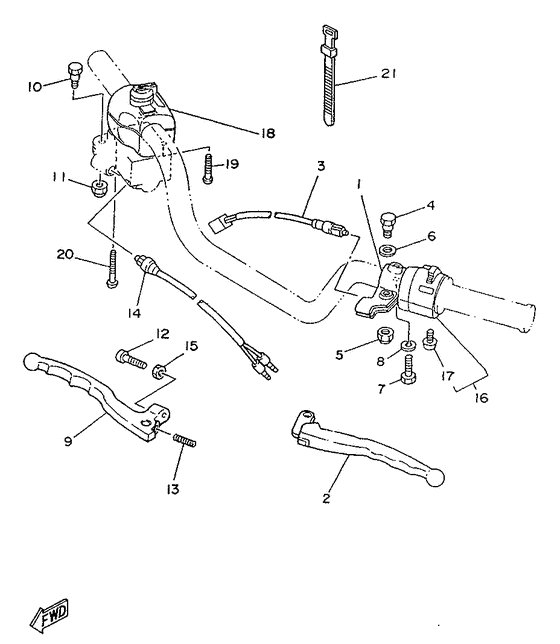

Interruptores de manillar Diagram Yamaha SR250 SR250 Special
- Year
- 1996
- Colour
- Frost Silver (FRS; 009G)
- Model code
- 3TH5
- Sales region
- Spain (999)
- Engine Capacity
- 250
- Model
- SR250SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
21L-H2911-00-00
Holder, Lever 1
|
21L-H2911-00-00 |
— | ||
|
02
|
02
21L-H3912-00-00
Lever 1
|
21L-H3912-00-00 |
— | ||
|
03
|
03
1KJ-H2917-00-00
Switch
|
1KJ-H2917-00-00 |
— | ||
| replacement | |||||
|
03
|
03
5H0-83980-09-00 Front Stop Switch Assy |
5H0-83980-09-00 |
from US $28.02 |
||
|
04
|
04
90109-06410-00 Bolt |
90109-06410-00 |
from US $2.27 |
||
| replacement | |||||
|
04
|
04
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
05
|
05
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
05
|
05
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
06
|
06
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
07
|
07
97306-06025-00 Bolt |
97306-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
07
|
07
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
08
|
08
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
09
|
09
4L0-83922-00-00 Lever Rh |
4L0-83922-00-00 |
from US $23.09 |
||
|
10
|
10
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
11
|
11
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
12
|
12
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
13
|
13
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
14
|
14
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
14
|
14
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
|
15
|
15
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
16
|
16
1KJ-83972-00-00
Switch, Handle 4
|
1KJ-83972-00-00 |
— | ||
| replacement | |||||
|
16
|
16
1KJ-83972-10-00
Switch, Handle 4
|
1KJ-83972-10-00 |
— | ||
|
17
|
17
985-07050-30-00
Screw, Pan Head
|
985-07050-30-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
18
|
18
3TH-83963-01-00
Switch, Handle 3 (Right)
|
3TH-83963-01-00 |
— | ||
| replacement | |||||
|
18
|
18
3TH-83963-10-00
Switch, Handle 3 (Right)
|
3TH-83963-10-00 |
— | ||
|
19
|
19
985-07050-30-00
Screw, Pan Head
|
985-07050-30-00 |
— | ||
| replacement | |||||
|
19
|
19
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
20
|
20
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
21
|
21
5T8-H3936-00-00
Band, Switch Cord
|
5T8-H3936-00-00 |
— | ||
