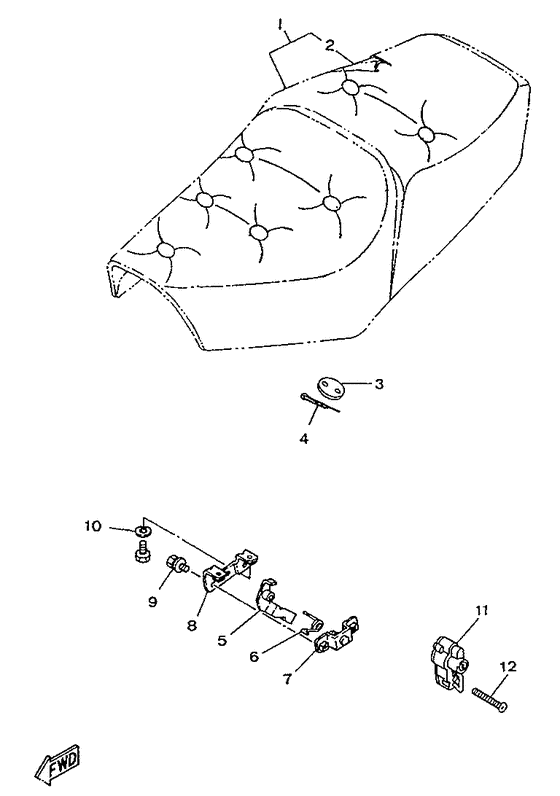

Seat Diagram Yamaha SR250 SR250 Special
- Year
- 1996
- Colour
- Frost Silver (FRS; 009G)
- Model code
- 3TH5
- Sales region
- Spain (999)
- Engine Capacity
- 250
- Model
- SR250SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3TH-F4730-10-00
Double Seat Assy
|
3TH-F4730-10-00 |
— | ||
|
02
|
02
3TH-F470F-00-00
Seat Cover Comp
|
3TH-F470F-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3TH-F4730-10-00
Double Seat Assy
|
3TH-F4730-10-00 |
— | ||
|
03
|
03
3TH-F4725-00-00
Spacer 1
|
3TH-F4725-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
3TH-F478F-00-00
Rod, Connecting
|
3TH-F478F-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
3Y6-24776-00-00 Lever, Seat |
3Y6-24776-00-00 |
US $13.60 |
||
|
06
|
06
90508-20412-00 Spring, Torsion |
90508-20412-00 |
from US $3.68 |
||
|
07
|
07
3Y6-24718-00-00 Bracket, Seat |
3Y6-24718-00-00 |
US $19.55 |
||
|
08
|
08
3Y6-2475H-00-00 Bracket, Seat Lvr 1 |
3Y6-2475H-00-00 |
from US $6.70 |
||
|
09
|
09
97507-06412-00 Bolt, With Washer |
97507-06412-00 |
from US $1.21 |
||
| replacement | |||||
|
09
|
09
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
10
|
10
97506-06412-00
Bolt, With Washer
|
97506-06412-00 |
— | ||
| replacement | |||||
|
10
|
10
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
11
|
11
3Y6-24780-00-00
Seat Lock Assy
|
3Y6-24780-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3Y6-24705-00-00 Seat Lock Assy |
3Y6-24705-00-00 |
from US $76.88 |
||
|
12
|
12
98701-06030-00 Screw Flat Head |
98701-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
98707-06030-00 Screw, Flat Head |
98707-06030-00 |
from US $1.56 |
||
