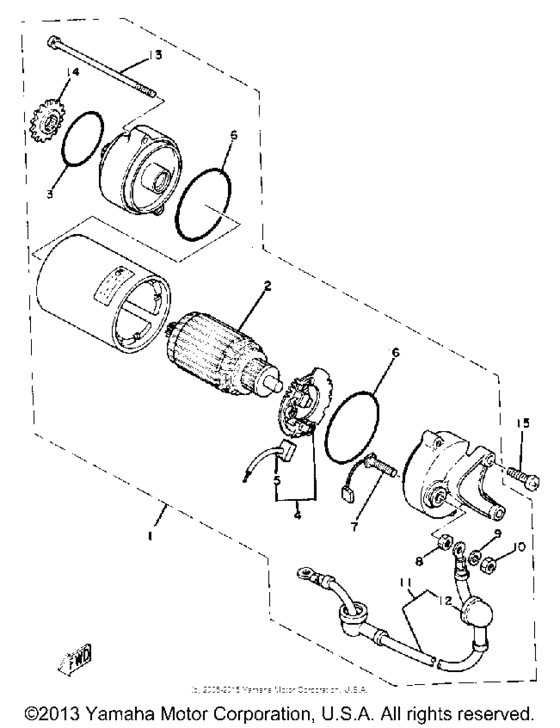

Starting motor Diagram Yamaha SR250 SR250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y6-81800-52-00 Starting Motor Unit |
3Y6-81800-52-00 |
from US $481.49 |
||
| replacement | |||||
|
1
|
1
3Y6-81890-00-00 Starting Motor Unit |
3Y6-81890-00-00 |
from US $481.49 |
||
|
2
|
2
4H7-81850-00-00 Armature Assembly |
4H7-81850-00-00 |
from US $375.52 |
||
|
3
|
3
4H7-81847-01-00 O-Ring |
4H7-81847-01-00 |
from US $12 |
||
|
4
|
4
4H7-81840-01-00 Brush Holder Assy |
4H7-81840-01-00 |
from US $57.01 |
||
|
5
|
5
4H7-81811-00-00 Brush 1 |
4H7-81811-00-00 |
from US $9.94 |
||
|
6
|
6
4H7-81844-00-00 O-Ring |
4H7-81844-00-00 |
from US $12.20 |
||
|
7
|
7
4H7-81812-01-00 Brush Sub-Assy, Star |
4H7-81812-01-00 |
from US $19.96 |
||
| replacement | |||||
|
7
|
7
2JN-81818-50-00 Brush Sub-Assy, Startor |
2JN-81818-50-00 |
from US $15.78 |
||
|
8
|
8
4H7-81872-00-00 Nut, Special |
4H7-81872-00-00 |
from US $2.88 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
10
|
10
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $0.90 |
||
|
11
|
11
3Y6-81815-00-00
Cord, Starter Motor
|
3Y6-81815-00-00 |
— | ||
| replacement | |||||
|
11
|
11
2HR-81815-52-00 Cord, Starter Motor |
2HR-81815-52-00 |
US $141.14 |
||
|
12
|
12
4H7-81871-00-00 Cap |
4H7-81871-00-00 |
US $8.08 |
||
|
13
|
13
4H7-81826-01-00 Bolt |
4H7-81826-01-00 |
from US $11.65 |
||
|
14
|
14
3Y6-15511-00-00 Gear, Starting Mtr |
3Y6-15511-00-00 |
US $44.41 |
||
|
15
|
15
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.20 |
||
