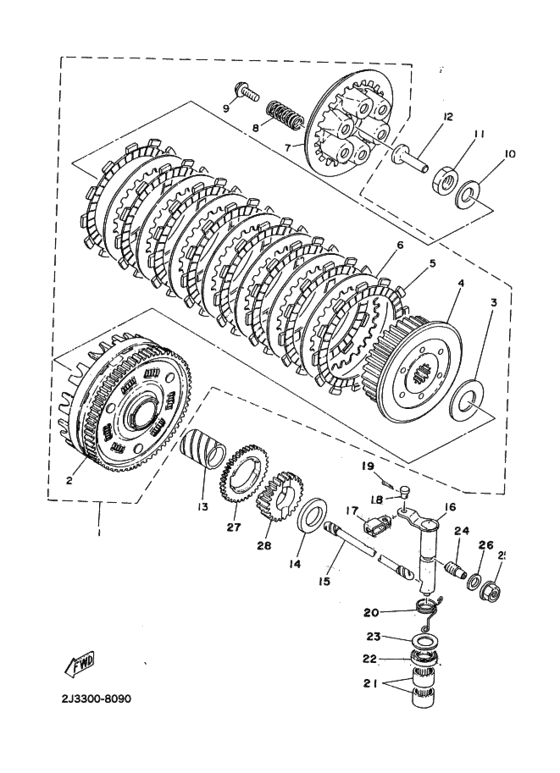

Clutch Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-16301-00-00
Clutch Assembly
|
2J2-16301-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2J2-16150-00-00 Pri Drvn Gear．プライマリドリブンギヤコンプリート ; ７７Ｔ |
2J2-16150-00-00 |
from US $356.45 |
||
|
3
|
3
170-16164-00-00 Plate, Thrust 2．プレート，スラスト ２; |
170-16164-00-00 |
from US $10.51 |
||
|
4
|
4
583-16371-00-00 Boss, Clutch．ボス，クラツチ; |
583-16371-00-00 |
from US $103.48 |
||
|
5
|
5
583-16321-00-00 Plate, Friction．プレート，フリクシヨン; |
583-16321-00-00 |
US $18.84 |
||
| replacement | |||||
|
5
|
5
5Y1-16321-00-00 Plate, Friction．プレート，フリクシヨン; |
5Y1-16321-00-00 |
from US $10.58 |
||
|
6
|
6
360-16325-00-00 Plate, Clutch 2．プレート，クラツチ; |
360-16325-00-00 |
from US $14.17 |
||
| replacement | |||||
|
6
|
6
360-16325-10-00 PLATE CLUTCH 2．プレート，クラツチ; |
360-16325-10-00 |
from US $9.26 |
||
|
7
|
7
498-16351-00-00 Plate, Pressure 1．プレート，プレツシヤ; |
498-16351-00-00 |
from US $60.21 |
||
|
8
|
8
90501-23391-00 Spring, Compression．スプリング，コンプレツシヨン; |
90501-23391-00 |
from US $5.24 |
||
|
9
|
9
90159-06010-00 Screw, With Washer．スクリユ，ウイズワツシヤ; |
90159-06010-00 |
from US $1.56 |
||
|
10
|
10
214-16119-00-00 Spring, Belleville |
214-16119-00-00 |
from US $7.93 |
||
|
11
|
11
90170-18086-00 Nut, Hexagonナツト ; ３６３−１１５５５−００ |
90170-18086-00 |
from US $6.09 |
||
| replacement | |||||
|
11
|
11
90170-18165-00 Nutナツト ; ３６３−１１５５５−００ |
90170-18165-00 |
from US $7.65 |
||
|
12
|
12
174-16356-00-00 Rod, Push 1 |
174-16356-00-00 |
from US $14.59 |
||
|
13
|
13
90560-25153-00 Spacerスペーサ; |
90560-25153-00 |
from US $25.64 |
||
|
14
|
14
363-16154-00-00 Plate, Thrust 1プレート，スラスト １; |
363-16154-00-00 |
from US $12.33 |
||
|
15
|
15
583-16357-01-00 Rod, Push 2 |
583-16357-01-00 |
from US $33.72 |
||
|
16
|
16
583-16382-00-00 Axle, Push Leverアクスル，プツシユレバー; |
583-16382-00-00 |
from US $81.70 |
||
| replacement | |||||
|
16
|
16
583-16381-00-00 Axle, Push Leverアクスル，プツシユレバー; |
583-16381-00-00 |
from US $107.26 |
||
|
17
|
17
214-16389-00-00 Joint |
214-16389-00-00 |
from US $9.49 |
||
|
18
|
18
90240-06005-00 Pin, Clevisピン，ウイズホール ; ２１１−１６３７９−００ |
90240-06005-00 |
from US $5.53 |
||
|
19
|
19
91401-10010-00 Pin, Cotter |
91401-10010-00 |
from US $3.40 |
||
|
20
|
20
90508-12279-00 Spring, Torsionスプリング，トーシヨン; |
90508-12279-00 |
from US $1.70 |
||
|
21
|
21
93315-11720-00 Bearing |
93315-11720-00 |
from US $7.62 |
||
|
22
|
22
93102-17148-00 Oil Sealオイルシール ; ＳＤ−１７−２８−６ |
93102-17148-00 |
from US $7.79 |
||
| replacement | |||||
|
22
|
22
93102-17357-00 Oil Sealオイルシール ; ＳＤ−１７−２８−６ |
93102-17357-00 |
from US $7.79 |
||
|
23
|
23
902-01173-27-00
Washer, Plate
ワツシヤ，プレート; |
902-01173-27-00 |
— | ||
| replacement | |||||
|
23
|
23
90201-18262-00 Washer, Plateワツシヤ，プレート; |
90201-18262-00 |
from US $1.84 |
||
|
24
|
24
364-16343-00-00 Screw, Adjusting |
364-16343-00-00 |
from US $9.07 |
||
|
25
|
25
583-16344-00-00 Nut, Adjusting |
583-16344-00-00 |
from US $22.39 |
||
|
26
|
26
90201-12172-00 Washer, Plateワツシヤ，プレート ; ３１１−２１７５７−００ |
90201-12172-00 |
from US $1.42 |
||
|
27
|
27
583-13324-00-00 Gear, Pump Driveギヤ，ポンプドライブ ; １２Ｔ |
583-13324-00-00 |
from US $46.28 |
||
|
28
|
28
583-15631-00-00 Gear, Kick Pinionギヤ，キツクピニオン ; １９Ｔ |
583-15631-00-00 |
from US $96.44 |
||
