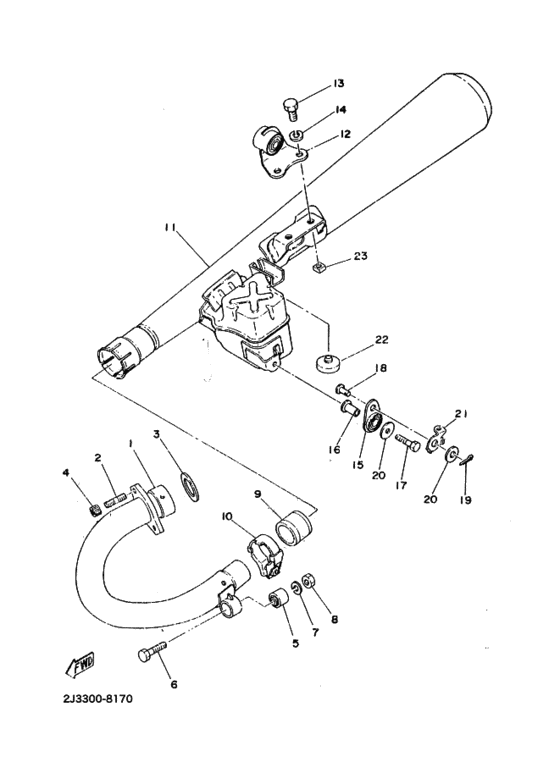

Exhaust Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-14611-01-00
Pipe,exhaust L
パイプ，エキゾースト; |
2J2-14611-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99031-04-00
Pipe, Exhaust 1
パイプ，エキゾースト; |
999-99031-04-00 |
— | ||
|
2
|
2
95621-08615-00 Bolt, Stud |
95621-08615-00 |
from US $3.01 |
||
| replacement | |||||
|
2
|
2
95617-08615-00 Bolt, Stud |
95617-08615-00 |
from US $5.81 |
||
|
3
|
3
90430-38054-00 Gasket, Exhaust Pipeガスケツト ; ２５６−１１６１３−００ |
90430-38054-00 |
from US $6.66 |
||
| replacement | |||||
|
3
|
3
3GD-14613-00-00 Gasket, Exhaust Pipeガスケツト ; ２５６−１１６１３−００ |
3GD-14613-00-00 |
from US $5.96 |
||
|
4
|
4
90179-08004-00 Nut |
90179-08004-00 |
from US $7.37 |
||
|
5
|
5
2J2-14737-01-00 Damper, Mufflerダンハ，マフラ; |
2J2-14737-01-00 |
from US $8.17 |
||
| replacement | |||||
|
5
|
5
2J2-14737-02-00 Damper, Mufflerダンハ，マフラ; |
2J2-14737-02-00 |
from US $14.09 |
||
|
6
|
6
97321-08045-00 Boltボルト，ヘキサゴン; |
97321-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
6
|
6
97013-08045-00 Boltボルト，ヘキサゴン; |
97013-08045-00 |
from US $4.11 |
||
|
7
|
7
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
8
|
8
95311-08600-00 Nut |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
8
|
8
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
9
|
9
2J2-14714-00-00 Gasket, Mufflerガスケツト，マフラジヨイント; |
2J2-14714-00-00 |
from US $21.39 |
||
| replacement | |||||
|
9
|
9
3GW-14714-00-00 Gasket, Mufflerガスケツト，マフラジヨイント; |
3GW-14714-00-00 |
from US $21.39 |
||
|
10
|
10
2J2-14788-00-00 Band, Silencerハンド，サイレンサ; |
2J2-14788-00-00 |
from US $10.48 |
||
| replacement | |||||
|
10
|
10
2J2-14788-01-00 Band, Silencerハンド，サイレンサ; |
2J2-14788-01-00 |
from US $10.48 |
||
|
11
|
11
2J2-14701-01-00
Muffler Comp
マフラコンプリート; |
2J2-14701-01-00 |
— | ||
| replacement | |||||
|
11
|
11
2J2-14711-80-00
Muffler L
マフラコンプリート; |
2J2-14711-80-00 |
— | ||
|
12
|
12
2J2-14771-01-00 Stay, Muffler 1ステー，マフラ ２; |
2J2-14771-01-00 |
from US $48.01 |
||
| replacements | |||||
|
12
|
12
3HT-14771-00-00 Stay, Muffler 1ステー，マフラ ２; |
3HT-14771-00-00 |
from US $48.01 |
||
|
12
|
12
3HT-14771-01-00 Stay, Muffler 1ステー，マフラ ２; |
3HT-14771-01-00 |
US $47.47 |
||
|
13
|
13
97326-10020-00 Boltボルト，ヘキサゴン; |
97326-10020-00 |
from US $3.12 |
||
| replacement | |||||
|
13
|
13
97017-10020-00 Boltボルト，ヘキサゴン; |
97017-10020-00 |
from US $3.12 |
||
|
14
|
14
92906-10100-00 Washer, Springワツシヤ，スプリング; |
92906-10100-00 |
from US $1.21 |
||
| replacement | |||||
|
14
|
14
92907-10100-00 Washer, Springワツシヤ，スプリング; |
92907-10100-00 |
from US $1.21 |
||
|
15
|
15
2J2-14791-00-00 Stay, Mufflerステー，マフラ １; |
2J2-14791-00-00 |
from US $25.06 |
||
|
16
|
16
90387-08664-00 Collarカラー; |
90387-08664-00 |
from US $6.80 |
||
|
17
|
17
97321-08035-00 Boltボルト，ヘキサゴン; |
97321-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
17
|
17
97013-08035-00 Boltボルト，ヘキサゴン; |
97013-08035-00 |
from US $4.53 |
||
|
18
|
18
91701-08018-00 Pin, Clevisピン，ウイズホール; |
91701-08018-00 |
from US $1.70 |
||
|
19
|
19
914-01250-15-00
Pin. Cotter
|
914-01250-15-00 |
— | ||
| replacement | |||||
|
19
|
19
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
20
|
20
90201-08649-00 Washer, Plateワツシヤ，プレート; |
90201-08649-00 |
from US $1.28 |
||
|
21
|
21
90465-08134-00 Clamp |
90465-08134-00 |
from US $4.73 |
||
|
22
|
22
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
23
|
23
95701-10100-00 Nut, With Washer |
95701-10100-00 |
US $1.07 |
||
| replacements | |||||
|
23
|
23
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
23
|
23
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
