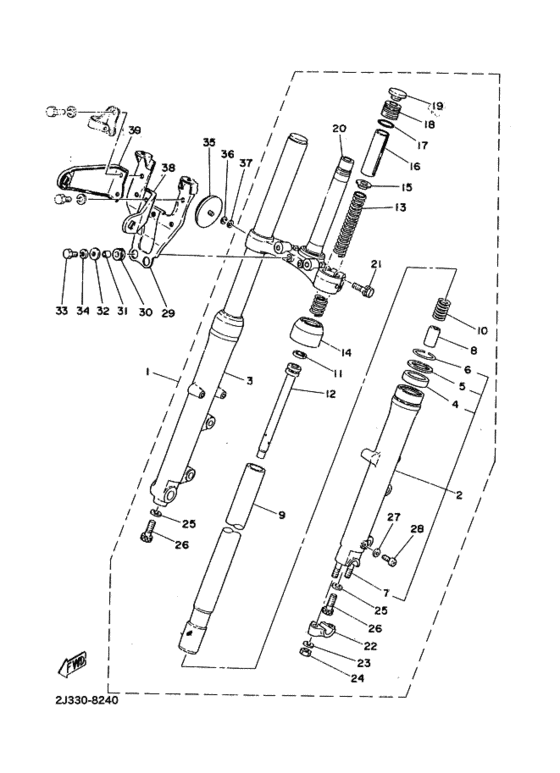

Front fork Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-23101-01-00
Front Fork Assembly
フロントフオークアセンブリ; |
2J2-23101-01-00 |
— | ||
|
2
|
2
2F0-23126-00-00
Tube, Outer 1
．チユーブ，アウタ １; Ｌ．Ｈ |
2F0-23126-00-00 |
— | ||
|
3
|
3
2F0-23136-00-00
Tube, Outer 2
．チユーブ，アウタ ２; Ｒ．Ｈ |
2F0-23136-00-00 |
— | ||
|
4
|
4
1T3-23145-00-00 Oil Seal．．オイルシール; |
1T3-23145-00-00 |
from US $5.96 |
||
| replacement | |||||
|
4
|
4
93110-35019-00 Oil Seal．．オイルシール; |
93110-35019-00 |
from US $14.59 |
||
|
5
|
5
341-23146-50-00 Washer, Oil Seal．．ワツシヤ，オイルシール; |
341-23146-50-00 |
from US $10.58 |
||
|
6
|
6
341-23156-50-00 Clip, Oil Seal．．クリツプ，オイルシール; |
341-23156-50-00 |
from US $19.69 |
||
|
7
|
7
90116-08261-00 Bolt, Stud．．ボルト，スタツト; レフトのみ |
90116-08261-00 |
from US $1.33 |
||
|
8
|
8
1W1-23173-L0-00 Taper Spindle．ピース，オイルロツク; |
1W1-23173-L0-00 |
from US $24.65 |
||
|
9
|
9
2F0-23110-00-00 Inner Tube 1．フオークチユーブ，インナ; |
2F0-23110-00-00 |
from US $253.21 |
||
|
10
|
10
2F0-23151-00-00
Spring, Rebound
．スプリング，リバウンド; |
2F0-23151-00-00 |
— | ||
|
11
|
11
2F0-23157-00-00 Ring, Piston Frtfrk．リング，フロントフオークピストン; |
2F0-23157-00-00 |
from US $7.74 |
||
|
12
|
12
2F0-23170-00-00
Cylinder, Frtfrk
．シリンダコンプリート，フロントフオーク; |
2F0-23170-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
．シリンダコンプリート，フロントフオーク; |
999-99999-99-00 |
— | ||
|
13
|
13
2J2-23141-00-00
Spring, Front Fork
．スプリング，フロントフオーク; |
2J2-23141-00-00 |
— | ||
|
14
|
14
1T3-23144-50-00 Seal, Dust．シール，ダスト; |
1T3-23144-50-00 |
from US $32.09 |
||
|
15
|
15
256-23142-60-00
Seat, Spring Upper
．シート，スプリングアツパ; |
256-23142-60-00 |
— | ||
|
16
|
16
341-23118-50-00
Spacer
．スペーサ; |
341-23118-50-00 |
— | ||
| replacement | |||||
|
16
|
16
33Y-23118-00-00
Spacer
．スペーサ; |
33Y-23118-00-00 |
— | ||
|
17
|
17
1T3-23114-50-00 Gasket．Ｏ−リング; |
1T3-23114-50-00 |
US $6.38 |
||
| replacement | |||||
|
17
|
17
2F0-23114-00-00 Gasket．Ｏ−リング; |
2F0-23114-00-00 |
from US $6.38 |
||
|
18
|
18
1T3-23111-50-00 Bolt, Cap．ボルト，キヤツプ; |
1T3-23111-50-00 |
from US $41.74 |
||
|
19
|
19
1T3-23168-50-00 Cap, Front Fork．キヤツプ，フロントフオーク; |
1T3-23168-50-00 |
from US $9.90 |
||
|
20
|
20
2J2-23340-00-33 Under Bracket Comp．アンダーブラケツトコンプリート; ヤマハブラツク |
2J2-23340-00-33 |
from US $242.39 |
||
| replacement | |||||
|
20
|
20
2J4-23340-30-33 Under Bracket．アンダーブラケツトコンプリート; ヤマハブラツク |
2J4-23340-30-33 |
US $242.39 |
||
|
21
|
21
90119-08012-00 Bolt, With Washer．ボルト; |
90119-08012-00 |
from US $7.37 |
||
| replacement | |||||
|
21
|
21
18G-23128-00-00 Bolt, With Washer．ボルト; |
18G-23128-00-00 |
from US $7.37 |
||
|
22
|
22
341-23167-50-00 Holder, Axle．ボルダ，アクスル; |
341-23167-50-00 |
from US $46.97 |
||
|
23
|
23
90201-08544-00 Washer, Plate．ワツシヤ，プレート; |
90201-08544-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
92990-08600-00 Washer, Plate．ワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
24
|
24
90185-08054-00 Nut, Self-Locking．ナツト; |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
24
|
24
95617-08100-00 Nut, U．ナツト; |
95617-08100-00 |
from US $3.26 |
||
|
24
|
24
901-85080-89-00
Nut, Self-Locking
．ナツト; |
901-85080-89-00 |
— | ||
|
25
|
25
509-23158-L0-00 Gasket．ガスケツト; |
509-23158-L0-00 |
from US $3.54 |
||
|
26
|
26
278-23181-50-00
Bolt, Hexagon Socket Head
．ボルト; |
278-23181-50-00 |
— | ||
| replacement | |||||
|
26
|
26
3D8-23181-00-00 Bolt, Hexagon Socket Head．ボルト; |
3D8-23181-00-00 |
from US $4.82 |
||
|
27
|
27
122-23129-00-00 Gasket, Drain Plug．ガスケツト，ドレンプラグ; |
122-23129-00-00 |
from US $3.26 |
||
|
28
|
28
122-23119-01-00 Plug, Drain．プラグ，ドレン; |
122-23119-01-00 |
US $1.56 |
||
| replacements | |||||
|
28
|
28
98517-04006-00 Screw, Pan Head．プラグ，ドレン; |
98517-04006-00 |
from US $1.28 |
||
|
28
|
28
985-11040-06-00
Screw, Pan Head (98502-04006)
．プラグ，ドレン; |
985-11040-06-00 |
— | ||
|
29
|
29
2J2-23121-04-00 Cover, Upper 1．ステー，ヘツドランプ; ヤマハブラツク |
2J2-23121-04-00 |
from US $41.59 |
||
|
30
|
30
90480-14052-00 Grommet |
90480-14052-00 |
from US $1.35 |
||
|
31
|
31
903-87062-16-00
Collar
カラー; |
903-87062-16-00 |
— | ||
| replacement | |||||
|
31
|
31
90387-060A3-00 Collar (3H5)カラー; |
90387-060A3-00 |
from US $1.70 |
||
|
32
|
32
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
32
|
32
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
33
|
33
97301-06020-00 Boltボルト，ヘキサゴン; |
97301-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
33
|
33
970-17060-20-00 Boltボルト，ヘキサゴン; |
970-17060-20-00 |
from US $1.07 |
||
|
34
|
34
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
34
|
34
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
35
|
35
355-85111-00-00 Reflector, Front 1レフレクタ; |
355-85111-00-00 |
US $11.62 |
||
| replacement | |||||
|
35
|
35
355-85111-01-00 Reflector, Front 1レフレクタ; |
355-85111-01-00 |
from US $11.62 |
||
|
36
|
36
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
37
|
37
92901-05200-00 Washer, Plainワツシヤ，プレーン; |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
37
|
37
92990-05200-00 Washer, Plainワツシヤ，プレーン; |
92990-05200-00 |
from US $1.34 |
||
|
38
|
38
2J2-23131-01-93
Stay, Headlight Upper
ステー，ヘツドランプ ; レフト |
2J2-23131-01-93 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
ステー，ヘツドランプ ; レフト |
999-99999-99-00 |
— | ||
|
39
|
39
2J2-23174-01-93
Stay, Headlight
ステー，ヘツドランプ ; ライト |
2J2-23174-01-93 |
— | ||
