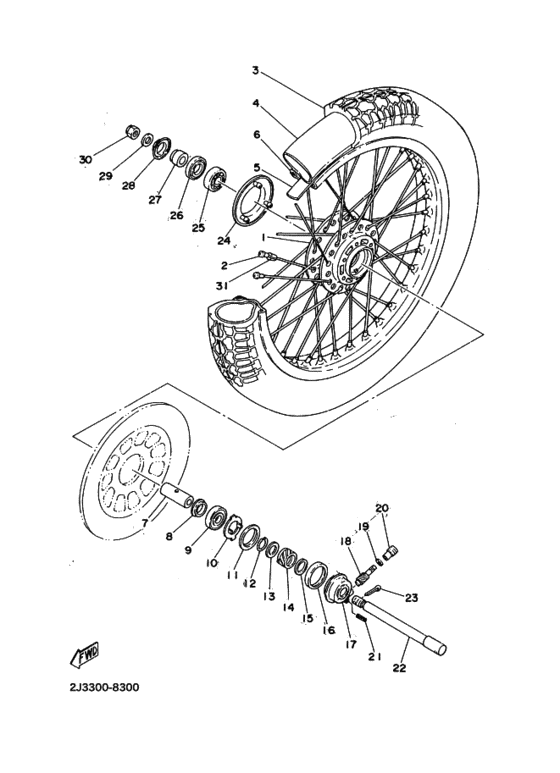

Front wheel Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
341-25111-01-00
Hub, Front
|
341-25111-01-00 |
— | ||
|
2
|
2
341-25104-00-00 Spoke Set, Frontスホークセツト; |
341-25104-00-00 |
from US $136.68 |
||
|
3
|
3
94135-19291-00
Tire (3.50-19)
．タイヤ，フロント ; ３５０−１９−４ＰＲ |
94135-19291-00 |
— | ||
|
4
|
4
94232-19122-00 Tube (3.25-19)．チユーブ，フロント ; ３２５−１９ |
94232-19122-00 |
US $26.24 |
||
| replacement | |||||
|
4
|
4
94210-19224-00 Tube (100/90-19 M/c Tr4 Btl)．チユーブ，フロント ; ３２５−１９ |
94210-19224-00 |
US $35.30 |
||
|
5
|
5
94332-19085-00 Band, Rim (3.25-19)．バント，リム ; ３２５−１９ |
94332-19085-00 |
US $4.39 |
||
| replacement | |||||
|
5
|
5
943-27191-11-00 Band, Rim (2.00-19)．バント，リム ; ３２５−１９ |
943-27191-11-00 |
from US $4.39 |
||
|
6
|
6
94418-19210-00
Rim 1.85X19
．リム，フロント ; １８５−１９ |
94418-19210-00 |
— | ||
|
7
|
7
90560-17126-00 Spacerスペーサ ; ３１１−２５１１７−０１ |
90560-17126-00 |
from US $18.56 |
||
|
8
|
8
152-25115-00-00 Flange, Spacerフランジ，スペーサ; |
152-25115-00-00 |
from US $3.40 |
||
| replacement | |||||
|
8
|
8
146-25315-00-00 Flange, Spacerフランジ，スペーサ; |
146-25315-00-00 |
from US $3.40 |
||
|
9
|
9
93306-30306-00 Bearingベアリング ; Ｂ６３０３ＲＳ |
93306-30306-00 |
from US $28.19 |
||
| replacement | |||||
|
9
|
9
93306-30317-00 Bearingベアリング ; Ｂ６３０３ＲＳ |
93306-30317-00 |
from US $28.19 |
||
|
10
|
10
341-25149-00-00 Clutch, Meterクラツチ，メータ; |
341-25149-00-00 |
from US $3.54 |
||
|
11
|
11
341-25846-00-00 Retainer, Clutchリテーナ，クラツチメータ; |
341-25846-00-00 |
from US $2.98 |
||
|
12
|
12
341-25137-00-00
Ring, Stop
|
341-25137-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
90201-25286-00 Washer, Plate (341-25147-00)ワツシヤ，プレート ; ３１１−２５１４７−００; ２５−２９−１０ |
90201-25286-00 |
from US $3.40 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
ワツシヤ，プレート ; ３１１−２５１４７−００; ２５−２９−１０ |
999-99999-99-00 |
— | ||
|
14
|
14
341-25135-01-00 Gear, Driveギヤ，ドライブ; |
341-25135-01-00 |
US $62.71 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
ギヤ，ドライブ; |
999-99999-99-00 |
— | ||
|
15
|
15
90201-25490-00 Washer, Plateワツシヤ，プレート ; １５２−１７２２６−００; ２５−３２−１０ |
90201-25490-00 |
from US $3.29 |
||
|
16
|
16
93105-45017-00 Oil Sealオイルシール ; ＳＤＤ−１５−５６−６ |
93105-45017-00 |
from US $11.05 |
||
|
17
|
17
341-25191-01-00
Housing, Gear
ハウジング，ギヤユニツト; |
341-25191-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
ハウジング，ギヤユニツト; |
999-99999-99-00 |
— | ||
|
18
|
18
306-25138-00-00
Gear, Meter (10T)
ギヤ，メータ; |
306-25138-00-00 |
— | ||
|
19
|
19
102-18416-00-00
Shim, Rod
シム; |
102-18416-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
シム; |
999-99999-99-00 |
— | ||
|
20
|
20
306-25136-00-00
Bush
プツシング; |
306-25136-00-00 |
— | ||
|
21
|
21
91609-20014-00 Pin, Spring |
91609-20014-00 |
from US $2 |
||
|
22
|
22
341-25181-01-00 Axle, Wheelシヤツト，ホイール; |
341-25181-01-00 |
from US $80.15 |
||
| replacement | |||||
|
22
|
22
999-99040-72-00 Axle, Wheelシヤツト，ホイール; |
999-99040-72-00 |
from US $72.28 |
||
|
23
|
23
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
23
|
23
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
24
|
24
1L9-25847-00-00
Cover, Housing
カバー，ハウジング; |
1L9-25847-00-00 |
— | ||
|
25
|
25
93306-30307-00 Bearingベアリング ; Ｂ６３０３ |
93306-30307-00 |
from US $28.19 |
||
| replacement | |||||
|
25
|
25
93306-30317-00 Bearingベアリング ; Ｂ６３０３ |
93306-30317-00 |
from US $28.19 |
||
|
26
|
26
93102-28022-00 Oil Sealオイルシール ; ＳＤ−２８−４７−７ |
93102-28022-00 |
from US $4.64 |
||
|
27
|
27
90387-17433-00
Collar
カラー ; ３１１−２５１８３−００ |
90387-17433-00 |
— | ||
|
28
|
28
341-25118-00-00
Cover, Hub Dust
カバー，ハブダスト; |
341-25118-00-00 |
— | ||
|
29
|
29
92901-14200-00 Washer, Plainワツシヤ，プレーン; |
92901-14200-00 |
US $1.42 |
||
| replacement | |||||
|
29
|
29
92990-14200-00 Washer, Plainワツシヤ，プレーン; |
92990-14200-00 |
from US $1.42 |
||
|
30
|
30
90171-14006-00 Nut, Castle |
90171-14006-00 |
US $9.07 |
||
| replacement | |||||
|
30
|
30
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
31
|
31
156-25398-00-00
Balancer, Wheel (15G)
バランサ，ホイール; 必要数 |
156-25398-00-00 |
— | ||
| replacement | |||||
|
31
|
31
3HT-25398-00-00 Balancer, Wheel (15G)バランサ，ホイール; 必要数 |
3HT-25398-00-00 |
from US $8.08 |
||
