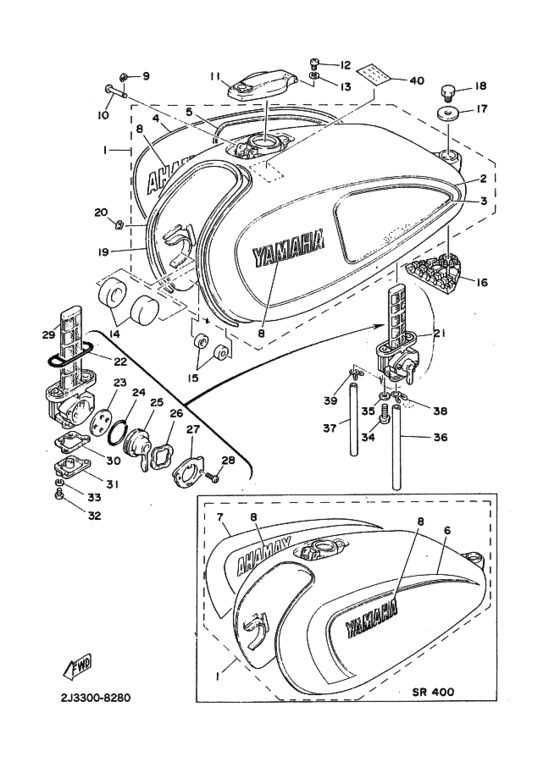

Fuel tank Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-24110-01-05
Fuel Tank Comp
フユエルタンクコンプリート; マコーマルーン |
2J2-24110-01-05 |
— | ||
|
6
|
6
2H6-24244-00-00
Graphic, Fuel Tank 1
．グラフイツク，フユエルタンク ; レフト |
2H6-24244-00-00 |
— | ||
|
7
|
7
2H6-24245-00-00
Graphic, Fuel Tank 2
．グラフイツク，フユエルタンク ; ライト |
2H6-24245-00-00 |
— | ||
|
8
|
8
2F1-24161-00-00 Emblem, Yamaha．エンブレム，フユエルタンク; |
2F1-24161-00-00 |
US $11.33 |
||
| replacement | |||||
|
8
|
8
99245-00140-00 Emblem, Yamaha．エンブレム，フユエルタンク; |
99245-00140-00 |
from US $11.33 |
||
|
9
|
9
93430-02001-00 Circlipサークリツプ ; Ｅ ２ |
93430-02001-00 |
from US $1.84 |
||
|
10
|
10
90249-03123-00
Pin, Special Shape
|
90249-03123-00 |
— | ||
|
11
|
11
2J2-24602-01-00
Cap Assy
タンクキヤツプアセンブリ; |
2J2-24602-01-00 |
— | ||
| replacements | |||||
|
11
|
11
4R0-24602-01-00
Cap Assembly
タンクキヤツプアセンブリ; |
4R0-24602-01-00 |
— | ||
|
11
|
11
2M0-24602-01-00
Cap Assy
タンクキヤツプアセンブリ; |
2M0-24602-01-00 |
— | ||
|
11
|
11
2M0-24602-00-00
Cap Assy
タンクキヤツプアセンブリ; |
2M0-24602-00-00 |
— | ||
|
12
|
12
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
12
|
12
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
12
|
12
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
13
|
13
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
2J2-24181-00-00 Damper, Locating 1ダンパ，タンクロケーテイング １; |
2J2-24181-00-00 |
from US $7.93 |
||
|
15
|
15
2J2-24183-00-00 Damper, Locating 3ダンパ，タンクロケーテイング ３; |
2J2-24183-00-00 |
US $6.38 |
||
| replacement | |||||
|
15
|
15
2J2-24183-01-00 Damper, Locating 3 (2J2-24183-0ダンパ，タンクロケーテイング ３; |
2J2-24183-01-00 |
from US $6.38 |
||
|
16
|
16
1J7-24182-01-00 Damper, Locating 2ダンパ，タンクロケーテイング ２; |
1J7-24182-01-00 |
from US $18.28 |
||
|
17
|
17
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
17
|
17
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
18
|
18
97301-08014-00 Boltボルト，ヘキサゴン; |
97301-08014-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
97017-08016-00 Boltボルト，ヘキサゴン; |
97017-08016-00 |
from US $1.42 |
||
|
19
|
19
2J2-24189-01-00 Mold, Fuel Tankモール，フユエルタンク; |
2J2-24189-01-00 |
from US $27.32 |
||
| replacement | |||||
|
19
|
19
3EB-24189-00-00
Plate, Mold
モール，フユエルタンク; |
3EB-24189-00-00 |
— | ||
|
20
|
20
90468-03063-00
Clip
|
90468-03063-00 |
— | ||
|
21
|
21
2J2-24500-00-00 Fuel Cock Assy 1フユエルコツクアセンブリ; |
2J2-24500-00-00 |
from US $146.32 |
||
| replacement | |||||
|
21
|
21
2J2-24500-01-00 Fuel Cock Assembly 1フユエルコツクアセンブリ; |
2J2-24500-01-00 |
from US $149.21 |
||
|
22
|
22
1J7-24512-00-00 Gasket．ガスケツト，フランジ; |
1J7-24512-00-00 |
from US $37.72 |
||
|
23
|
23
1J7-24523-00-00
Valve
．ガスケツト，フユエルコツク; |
1J7-24523-00-00 |
— | ||
| replacement | |||||
|
23
|
23
16G-24523-00-00 Valve．ガスケツト，フユエルコツク; |
16G-24523-00-00 |
from US $15.02 |
||
|
24
|
24
1J7-24534-00-00 Seal, Cock．シール，フユエルコツク; |
1J7-24534-00-00 |
from US $15.98 |
||
|
25
|
25
1J7-24524-00-00
Lever, Cock
．レバー，フユエルコツク; |
1J7-24524-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
．レバー，フユエルコツク; |
999-99999-99-00 |
— | ||
|
26
|
26
1J7-24518-00-00
Washer, Wave
．スプリング，プレート; |
1J7-24518-00-00 |
— | ||
|
27
|
27
1J7-24525-00-00
Plate, Lvr Fitting
．フレート，レバーフイツテイング; |
1J7-24525-00-00 |
— | ||
|
28
|
28
98501-03010-00 Screw, Pan Head．スクリユ，オーバルヘツド; |
98501-03010-00 |
from US $1.98 |
||
| replacement | |||||
|
28
|
28
98580-03010-00 Screw Pan Head．スクリユ，オーバルヘツド; |
98580-03010-00 |
from US $1.98 |
||
|
29
|
29
1J7-24514-02-00
Net, Filter 1
．フイルタ; |
1J7-24514-02-00 |
— | ||
|
30
|
30
1J7-24522-00-00 Gasket．ガスケツト，ドレンカバー; |
1J7-24522-00-00 |
from US $37.72 |
||
|
31
|
31
1L9-24521-00-00
Cup, Filter
．カバー，ドレン; |
1L9-24521-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
．カバー，ドレン; |
999-99999-99-00 |
— | ||
|
32
|
32
98501-04012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
32
|
32
98517-04012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04012-00 |
from US $1.07 |
||
|
32
|
32
985-11040-12-00 Screw, Panhead (4U5)．スクリユ，パンヘツド; |
985-11040-12-00 |
from US $1.07 |
||
|
33
|
33
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
34
|
34
90149-06008-00 Screwスクリユ ; ３６６−２１１１３−００ |
90149-06008-00 |
from US $1.70 |
||
|
35
|
35
902-02060-10-00
Washer Plate 178147660000
ワツシヤ ; １７８−１１７６６−００ |
902-02060-10-00 |
— | ||
| replacement | |||||
|
35
|
35
902-02051-87-00 Washer, Plateワツシヤ ; １７８−１１７６６−００ |
902-02051-87-00 |
from US $1.28 |
||
|
36
|
36
90445-10137-00 Hoseホース ; ６−１６０ |
90445-10137-00 |
from US $6.52 |
||
| replacement | |||||
|
36
|
36
904-45101-44-00 Hose (L450)ホース ; ６−１６０ |
904-45101-44-00 |
from US $4.64 |
||
|
37
|
37
904-45072-19-00
Hose (L200)
ホース ; ４２−１００ |
904-45072-19-00 |
— | ||
| replacements | |||||
|
37
|
37
904-45072-G8-00 Hose (L310)ホース ; ４２−１００ |
904-45072-G8-00 |
from US $10.91 |
||
|
37
|
37
90445-07176-00 Hose (L200)ホース ; ４２−１００ |
90445-07176-00 |
from US $1.82 |
||
|
38
|
38
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
38
|
38
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
39
|
39
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
|
40
|
40
304-24164-01-00 Emblem 4エンブレム，コーシヨン; |
304-24164-01-00 |
US $3.54 |
||
| replacement | |||||
|
40
|
40
3XC-2118K-10-00 Label, Cautionエンブレム，コーシヨン; |
3XC-2118K-10-00 |
US $3.54 |
||
