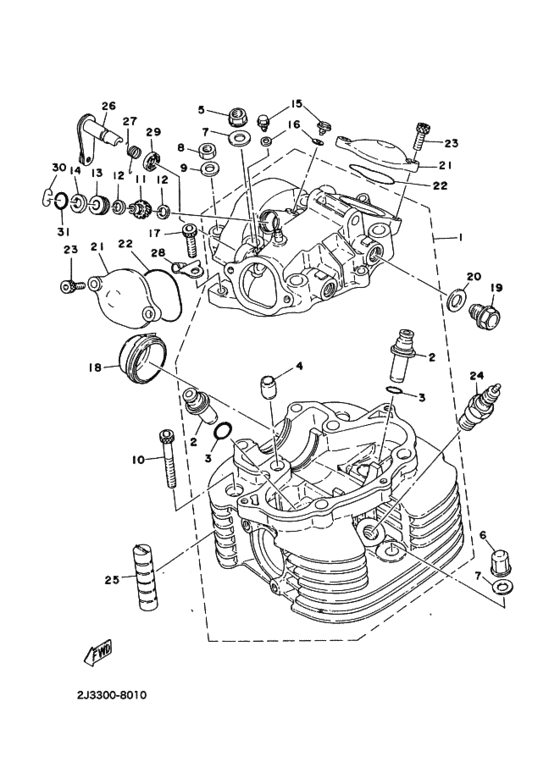

ｼﾘﾝﾀﾞﾍﾂﾄﾞ. ｼﾘﾝﾀﾞﾍﾂﾄﾞｶﾊﾞｰ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-11110-00-00
Cylinder Head Assy
|
2J2-11110-00-00 |
— | ||
| replacements | |||||
|
1
|
1
2J2-11101-00-00
Cylinder Head Assembly
|
2J2-11101-00-00 |
— | ||
|
1
|
1
2J2-11101-06-00
Cylinder Head Assy
|
2J2-11101-06-00 |
— | ||
|
2
|
2
583-11133-11-00 Gde, Intk Vlv 1 O/s．ガイド，バルブ ; １オーバサイズ; オプシヨナルパーツ |
583-11133-11-00 |
from US $87.82 |
||
|
3
|
3
93210-14299-00 O-Ring．．．Ｏ−リング ; １５−１３８ |
93210-14299-00 |
from US $4.11 |
||
|
4
|
4
91810-16016-00 Pin, Dowel．．ピン，ダウエル ; １０５−１４−１６ |
91810-16016-00 |
US $1.56 |
||
| replacement | |||||
|
4
|
4
99530-14016-00 Pin, Dowel．．ピン，ダウエル ; １０５−１４−１６ |
99530-14016-00 |
from US $1.56 |
||
|
5
|
5
90179-10204-00 Nut |
90179-10204-00 |
US $4.39 |
||
| replacement | |||||
|
5
|
5
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.39 |
||
|
6
|
6
90179-10207-00 Nut |
90179-10207-00 |
US $4.39 |
||
| replacement | |||||
|
6
|
6
90176-10075-00 Nut, Crown |
90176-10075-00 |
from US $4.39 |
||
|
7
|
7
90201-10124-00 Washer, Plateワツシヤ，プレート ; ３７１−１１１７５−００ |
90201-10124-00 |
from US $1.70 |
||
|
8
|
8
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
8
|
8
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
9
|
9
90201-08649-00 Washer, Plateワツシヤ，プレート; |
90201-08649-00 |
from US $1.28 |
||
|
10
|
10
913-16060-55-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-55-00 |
— | ||
| replacement | |||||
|
10
|
10
91317-06055-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91317-06055-00 |
from US $1.42 |
||
|
11
|
11
1E6-17841-00-00 Gear, Drivenギヤ，ドリブン; |
1E6-17841-00-00 |
from US $31.59 |
||
|
12
|
12
90201-08587-00 Washer, Plateワツシヤ，プレート; |
90201-08587-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90201-08085-00 Washer, Plateワツシヤ，プレート; |
90201-08085-00 |
from US $1.34 |
||
|
13
|
13
1E6-17843-00-00 Bush, Drvn Gr Outerプツシング; |
1E6-17843-00-00 |
from US $10.66 |
||
|
14
|
14
93104-08055-00 Oil Seal．オイルシール ; ＳＯ−８−１７８−５ |
93104-08055-00 |
from US $4.82 |
||
| replacement | |||||
|
14
|
14
93102-08307-00 Oil Seal (30X)．オイルシール ; ＳＯ−８−１７８−５ |
93102-08307-00 |
from US $4.30 |
||
|
15
|
15
90109-06418-00 Bolt |
90109-06418-00 |
from US $1.70 |
||
|
16
|
16
904-30060-14-00 Gasket (Copper washer)ガスケツト ; ２５６−１１３９６−００ |
904-30060-14-00 |
from US $1.28 |
||
|
17
|
17
913-16060-25-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
913-17060-25-00 Boltボルト，ヘキサゴンソケツトヘツド; |
913-17060-25-00 |
from US $1.07 |
||
|
18
|
18
2J2-11197-00-00 Plug, Blindプラグ，ビユーワ; |
2J2-11197-00-00 |
from US $73.78 |
||
|
19
|
19
903-40140-38-00 Plug, Straight Scrwプラグ; |
903-40140-38-00 |
from US $4.68 |
||
|
20
|
20
904-30140-43-00 Gasketガスケツト ; ２５６−１３１６７−００ |
904-30140-43-00 |
from US $1.13 |
||
|
21
|
21
2J2-11186-00-00 Cover, Cylinder.head 2カバー，シリンダヘツドサイド; |
2J2-11186-00-00 |
from US $17.84 |
||
|
22
|
22
93210-49296-00 O-Ring．．Ｏ−リング ; ３０−４８５ |
93210-49296-00 |
from US $6.66 |
||
|
23
|
23
913-16060-18-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-18-00 |
— | ||
| replacement | |||||
|
23
|
23
91317-06018-00 Bolt,socketボルト，ヘキサゴンソケツトヘツド; |
91317-06018-00 |
from US $1.56 |
||
|
24
|
24
94703-00116-00 Plug, Spark (Ngk Bp6Es)プラグ，スパーク ; ＢＰ−６ＥＳ; 選択 |
94703-00116-00 |
US $5.81 |
||
| replacements | |||||
|
24
|
24
BP6-ES000-00-00 BP6ES NGK SPLUG 4Pプラグ，スパーク ; ＢＰ−６ＥＳ; 選択 |
BP6-ES000-00-00 |
US $3.65 |
||
|
24
|
24
BPR-6ES00-00-00 elementプラグ，スパーク ; ＢＰ−６ＥＳ; 選択 |
BPR-6ES00-00-00 |
US $20.08 |
||
|
24
|
24
94703-00136-00
Plug, Spark (Champion N8Y)
プラグ，スパーク ; Ｎ−８Ｙ; 選択 チヤピオン製 |
94703-00136-00 |
— | ||
|
25
|
25
583-11127-00-00 Absorber 3アプソーバ; |
583-11127-00-00 |
from US $3.26 |
||
|
26
|
26
583-12288-00-00 Cam, Decompressionカム，デコンプレツシヨン; |
583-12288-00-00 |
from US $18.13 |
||
| replacement | |||||
|
26
|
26
583-12288-01-00 Cam, Decompressionカム，デコンプレツシヨン; |
583-12288-01-00 |
from US $23.47 |
||
|
27
|
27
90508-16303-00 Spring, Torsionスプリング，トーシヨン; |
90508-16303-00 |
from US $1.84 |
||
|
28
|
28
583-12283-00-00 Bracket, Dcompブラケツト，デコンプレツシヨン; |
583-12283-00-00 |
from US $7.34 |
||
|
29
|
29
93104-12054-00 Oil Seal, So-Type．オイルシール ; ＳＯ−１２−１７−２５ |
93104-12054-00 |
from US $7.65 |
||
|
30
|
30
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $2.69 |
||
|
31
|
31
932-10141-04-00
O-Ring
．．Ｏ−リング ; ２４−１３８ |
932-10141-04-00 |
— | ||
| replacement | |||||
|
31
|
31
93210-14579-00 O-Ring (26H)．．Ｏ−リング ; ２４−１３８ |
93210-14579-00 |
from US $1.28 |
||
