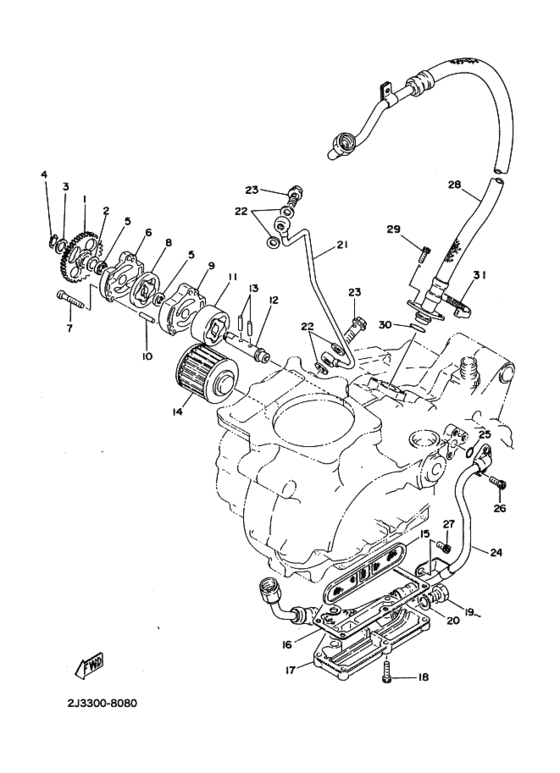

ｵｲﾙﾎﾟﾝﾌﾟ. ｵｲﾙｸﾘｰﾅ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-13325-00-00 Gear, Pump Drivenギヤ，ポンプドリブン; |
583-13325-00-00 |
from US $61.48 |
||
|
2
|
2
90201-12166-00 Washer, Plateワツシヤ，プレート ; １６４−１８５７２−００ |
90201-12166-00 |
from US $1.70 |
||
|
3
|
3
90201-10119-00 Washer, Plateワツシヤ，プレート; |
90201-10119-00 |
from US $1.42 |
||
|
4
|
4
93410-10025-00 Circlipサークリツプ ; Ｓ−１０ |
93410-10025-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
99009-10400-00 Circlipサークリツプ ; Ｓ−１０ |
99009-10400-00 |
from US $1.34 |
||
|
5
|
5
93104-11038-00 Oil Sealオイルシール ; ＳＯ−１１−１５−３ |
93104-11038-00 |
from US $5.67 |
||
|
6
|
6
583-13316-01-00 Cover, Pumpカバー，ポンプ; |
583-13316-01-00 |
US $118.26 |
||
| replacement | |||||
|
6
|
6
999-99009-96-00 Cvr/housing Compカバー，ポンプ; |
999-99009-96-00 |
from US $118.26 |
||
|
7
|
7
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
7
|
7
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
8
|
8
583-13310-01-00 Rotor Assembly 1ロータ１アセンブリ; |
583-13310-01-00 |
from US $35.37 |
||
|
9
|
9
583-13336-01-00 Housing, Rotorハウジング，ロータ; |
583-13336-01-00 |
US $118.26 |
||
| replacement | |||||
|
9
|
9
999-99009-96-00 Cvr/housing Compハウジング，ロータ; |
999-99009-96-00 |
from US $118.26 |
||
|
10
|
10
93604-22050-00 Pin, Dowel．ピン，ダウエル ; ４−２１８ |
93604-22050-00 |
from US $1.84 |
||
|
11
|
11
583-13320-00-00 Rotor Assembly 2ロータ２アセンブリ; |
583-13320-00-00 |
from US $38.41 |
||
|
12
|
12
583-13314-00-00 Shaft, Pump |
583-13314-00-00 |
from US $33.72 |
||
| replacement | |||||
|
12
|
12
583-13314-01-00 Shaft, Pump |
583-13314-01-00 |
from US $33.72 |
||
|
13
|
13
93603-17070-00 Pin, Dowel．ピン，ダウエル ; ３−１６８ |
93603-17070-00 |
from US $1.28 |
||
|
14
|
14
2H0-13440-90-00 Element Assy, Oil Cleanerオイルクリーナアセンブリ; |
2H0-13440-90-00 |
US $15.30 |
||
| replacement | |||||
|
14
|
14
4X7-13440-90-00 Element Assy, Oil Cleanerオイルクリーナアセンブリ; |
4X7-13440-90-00 |
from US $15.30 |
||
|
15
|
15
583-13411-00-00 Strainer, Oilストレーナ，オイル; |
583-13411-00-00 |
from US $33.29 |
||
|
16
|
16
583-13414-00-00 Gasket, Strainer Coverガスケツト，ストレーナ; |
583-13414-00-00 |
US $4.11 |
||
| replacement | |||||
|
16
|
16
3HT-13414-00-00 Gasket, Strainer Coverガスケツト，ストレーナ; |
3HT-13414-00-00 |
from US $4.11 |
||
|
17
|
17
583-13417-01-00 Cover, Strainerカバー，ストレーナ; |
583-13417-01-00 |
from US $56.65 |
||
|
18
|
18
913-16060-20-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
91317-06020-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91317-06020-00 |
from US $1.07 |
||
|
19
|
19
90340-14009-00 Plug, Straight Screwボルト，オイルドレン; |
90340-14009-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
903-40141-32-00 Plug, Straight Screwボルト，オイルドレン; |
903-40141-32-00 |
from US $1.42 |
||
|
20
|
20
214-11198-01-00 Washer-gasket．．ガスケツト ; １５７−１９５−２０ |
214-11198-01-00 |
from US $1.66 |
||
|
21
|
21
583-13161-01-00
Pipe, Delivery 1
パイプ，デリバリ; |
583-13161-01-00 |
— | ||
|
22
|
22
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
22
|
22
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
23
|
23
90401-08038-00 Bolt, Union |
90401-08038-00 |
from US $3.54 |
||
| replacement | |||||
|
23
|
23
90401-08006-00 Bolt, Union |
90401-08006-00 |
from US $3.54 |
||
|
24
|
24
583-13464-00-00 Hose, Oil 1ホース，オイル １; |
583-13464-00-00 |
US $312.19 |
||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
ホース，オイル １; |
999-99999-99-00 |
— | ||
|
25
|
25
93210-10197-00 O-Ring (371)．．Ｏ−リング ; １９−９８ |
93210-10197-00 |
from US $1.98 |
||
|
26
|
26
91316-06015-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91316-06015-00 |
US $1.07 |
||
| replacement | |||||
|
26
|
26
91317-06016-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91317-06016-00 |
from US $1.04 |
||
|
27
|
27
913-16060-12-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-12-00 |
— | ||
| replacement | |||||
|
27
|
27
91317-06012-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91317-06012-00 |
from US $1.07 |
||
|
28
|
28
583-13465-02-00
Hose, Oil 2
ホース，オイル ２; |
583-13465-02-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
ホース，オイル ２; |
999-99999-99-00 |
— | ||
|
29
|
29
91316-06015-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91316-06015-00 |
US $1.07 |
||
| replacement | |||||
|
29
|
29
91317-06016-00 Boltボルト，ヘキサゴンソケツトヘツド; |
91317-06016-00 |
from US $1.04 |
||
|
30
|
30
93210-15171-00 O-Ring．．Ｏーリング ; １９−１４５ |
93210-15171-00 |
from US $1.56 |
||
|
31
|
31
437-83936-00-00
Band, Switch Cord
バンド; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
31
|
31
437-83936-01-00 Band, Switch Cordバンド; |
437-83936-01-00 |
from US $1.56 |
||
