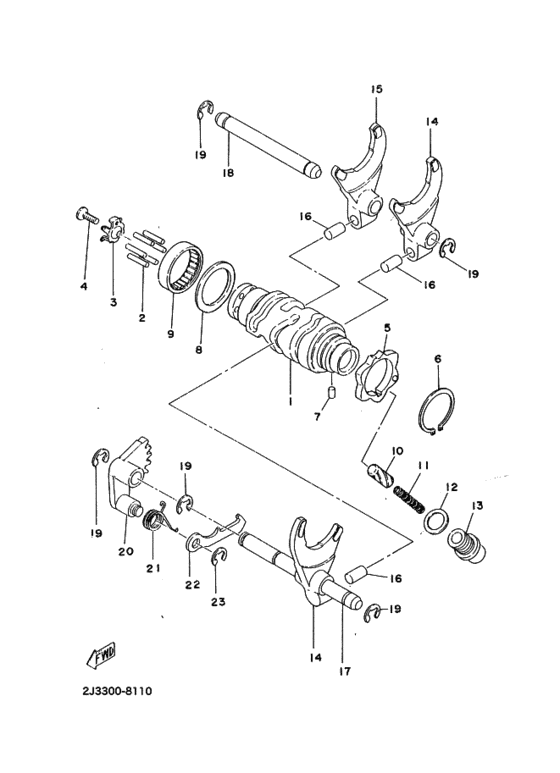

ｼﾌﾀ 1 Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-18541-00-00 Cam, Shift |
2J2-18541-00-00 |
US $128.35 |
||
| replacement | |||||
|
1
|
1
2J2-18540-00-00 Shift Cam Assembly |
2J2-18540-00-00 |
from US $128.35 |
||
|
2
|
2
93604-18100-00 Pin, Dowelピン，ダウエル ; ４−１８ |
93604-18100-00 |
from US $1.84 |
||
|
3
|
3
434-18561-00-00 Plate, Side 1プレート，サイト; |
434-18561-00-00 |
from US $2.98 |
||
|
4
|
4
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
4
|
4
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.98 |
||
|
5
|
5
2J2-18141-00-00 Plate, Stopperプレート，ストツパ; |
2J2-18141-00-00 |
from US $21.11 |
||
| replacement | |||||
|
5
|
5
2J2-W1814-00-00 Plate, Stopperプレート，ストツパ; |
2J2-W1814-00-00 |
from US $16.81 |
||
|
6
|
6
93410-30012-00 Clipサークリツプ ; Ｓ−３０ |
93410-30012-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
99009-30400-00 Circlipサークリツプ ; Ｓ−３０ |
99009-30400-00 |
from US $1.56 |
||
|
7
|
7
93604-08071-00 Pin, Dowelピン，ダウエル ; ４−８ |
93604-08071-00 |
from US $1.45 |
||
|
8
|
8
90201-32673-00 Washer, Plateワツシヤ，プレート; |
90201-32673-00 |
from US $5.18 |
||
|
9
|
9
93315-23208-00 Bearing |
93315-23208-00 |
from US $12.33 |
||
|
10
|
10
1J7-18547-00-00 Stopper, Cam |
1J7-18547-00-00 |
from US $10.06 |
||
|
11
|
11
90501-10062-00 Spring Compression278185570000（２７８−１８５５７−００） |
90501-10062-00 |
from US $1.70 |
||
|
12
|
12
137-15353-00-00
Gasket, Drain
ガスケツト，ドレンプラグ; |
137-15353-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4F4-14766-00-00 Washer, Protector (Gasket)ガスケツト，ドレンプラグ; |
4F4-14766-00-00 |
from US $5.95 |
||
|
13
|
13
90149-14031-00 Boltスクリユ ; ２７８−１８５７７−０３ |
90149-14031-00 |
from US $7.78 |
||
| replacement | |||||
|
13
|
13
90109-14002-00 Boltスクリユ ; ２７８−１８５７７−０３ |
90109-14002-00 |
from US $7.79 |
||
|
14
|
14
364-18511-00-00 Fork, Shift 1フオーク，シフト １; |
364-18511-00-00 |
from US $79.03 |
||
|
15
|
15
363-18511-00-00 Fork, Shift 1フオーク，シフト １; |
363-18511-00-00 |
from US $75.11 |
||
|
16
|
16
90250-08017-00 Pin 2781855200ピン ; ２７８−１８５５２−００ |
90250-08017-00 |
from US $1.70 |
||
|
17
|
17
363-18531-00-00 Bar, Shif Frk Gde 1バー，シフトフオークガイド １; |
363-18531-00-00 |
US $16.01 |
||
|
18
|
18
363-18535-00-00 Bar, Shift Fork Guide 2バー，シフトフオークガイド ２; |
363-18535-00-00 |
from US $11.02 |
||
|
19
|
19
93430-08006-00 Circlipサークリツプ ; Ｅ−８ |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
99001-08600-00 Circlipサークリツプ ; Ｅ−８ |
99001-08600-00 |
from US $1.42 |
||
|
20
|
20
434-18122-00-00 Lever, Shift 2レバー，シフト ２; |
434-18122-00-00 |
from US $46.56 |
||
|
21
|
21
90508-08334-00 Spring, Torsionスプリング，トーシヨン; |
90508-08334-00 |
from US $4.39 |
||
|
22
|
22
498-18151-03-00 Lever, Shift 3レバー，シフト ３; |
498-18151-03-00 |
from US $11.19 |
||
|
23
|
23
93430-07012-00 Circlipサークリツプ ; Ｅ−７ |
93430-07012-00 |
US $1.84 |
||
| replacement | |||||
|
23
|
23
99080-07600-00 Clipサークリツプ ; Ｅ−７ |
99080-07600-00 |
from US $1.66 |
||
