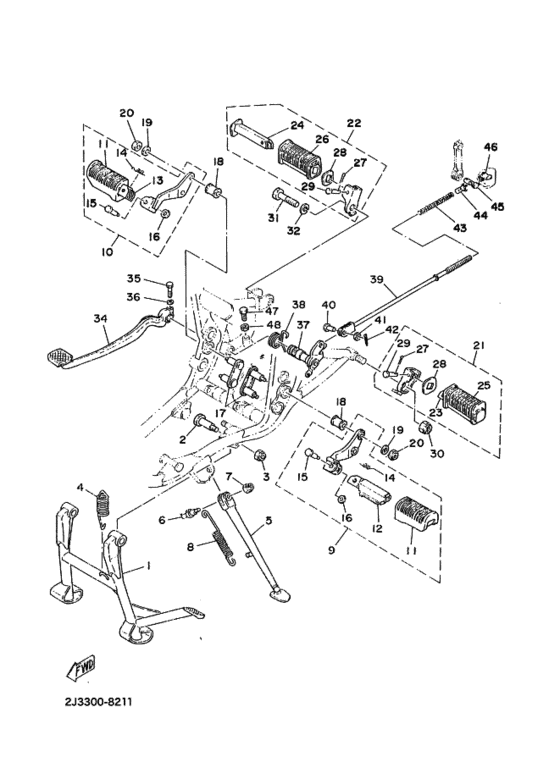

ｽﾀﾝﾄﾞ. ﾌｰﾄﾚｽﾄ. ﾌﾞﾚｰｷﾍﾟﾀﾞﾙ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-27111-00-00 Stand, Main |
2J2-27111-00-00 |
from US $124.62 |
||
|
2
|
2
90109-10497-00 Bolt |
90109-10497-00 |
from US $4.61 |
||
| replacement | |||||
|
2
|
2
90109-102G9-00 Bolt |
90109-102G9-00 |
from US $5.67 |
||
|
3
|
3
956-01101-00-00
Nut, U (737 Steering Column)
ナツト，ユー; |
956-01101-00-00 |
— | ||
| replacement | |||||
|
3
|
3
95617-10100-00 Nut, Uナツト，ユー; |
95617-10100-00 |
from US $4.11 |
||
|
4
|
4
90506-40175-00 Spring, Tension |
90506-40175-00 |
from US $9.35 |
||
|
5
|
5
2J2-27311-01-00
Stand, Side
スタンド，サイド; |
2J2-27311-01-00 |
— | ||
| replacement | |||||
|
5
|
5
1JN-27311-00-00
Stand, Side
スタンド，サイド; |
1JN-27311-00-00 |
— | ||
|
6
|
6
90109-10473-00 Bolt |
90109-10473-00 |
from US $3.54 |
||
|
7
|
7
90185-10037-00 Nut, Self-Lockingナツト; |
90185-10037-00 |
from US $3.83 |
||
|
8
|
8
90506-28146-00 Spring, Tension |
90506-28146-00 |
from US $10.48 |
||
|
9
|
9
2J2-27410-00-00 Front Footrest Assy (Left)フロントフートレストアセンブリ ; レフト |
2J2-27410-00-00 |
US $131.20 |
||
| replacement | |||||
|
9
|
9
48U-27410-00-33 elementフロントフートレストアセンブリ ; レフト |
48U-27410-00-33 |
US $131.20 |
||
|
10
|
10
2J2-27420-00-00 Front Footrest Assy (Right)フロントフートレストアセンブリ ; ライト |
2J2-27420-00-00 |
US $131.20 |
||
| replacement | |||||
|
10
|
10
48U-27420-00-33 elementフロントフートレストアセンブリ ; ライト |
48U-27420-00-33 |
US $131.20 |
||
|
11
|
11
1J7-27413-01-00 Cover, Footrest．カバー，フートレフト; |
1J7-27413-01-00 |
from US $32.76 |
||
| replacement | |||||
|
11
|
11
4L0-27423-00-00 Cover, Footrest．カバー，フートレフト; |
4L0-27423-00-00 |
from US $36.06 |
||
|
12
|
12
1T3-27451-00-00 Footrest, Bracket Left．フートレスト，フロント ; レフト |
1T3-27451-00-00 |
US $34.34 |
||
| replacement | |||||
|
12
|
12
3CK-27451-00-00
Footrest
．フートレスト，フロント ; レフト |
3CK-27451-00-00 |
— | ||
|
13
|
13
1T3-27461-00-00
Footrest, Bracket Right
．フートレスト，フロント ; ライト |
1T3-27461-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3N6-27461-00-00
Footrest
．フートレスト，フロント ; ライト |
3N6-27461-00-00 |
— | ||
|
14
|
14
90508-20023-00 Spring, Torsion．スプリング，トーシヨン; |
90508-20023-00 |
from US $1.70 |
||
|
15
|
15
90243-08006-00 Pin．ピン ; ２１１−２７１１８−００ |
90243-08006-00 |
from US $4.68 |
||
|
16
|
16
90201-06042-00 Washer, Plate．ワツシヤ，プレート ; ２１１−２７１１７−００ |
90201-06042-00 |
from US $1.70 |
||
|
17
|
17
2J2-27416-01-00 Bolt, Footrestボルト，フートレスト; |
2J2-27416-01-00 |
from US $8.82 |
||
| replacement | |||||
|
17
|
17
2J2-27416-10-00 Bolt, Footrestボルト，フートレスト; |
2J2-27416-10-00 |
from US $14.99 |
||
|
18
|
18
2J2-27414-01-00 Damper, Footrestダンパ，フートレスト; |
2J2-27414-01-00 |
from US $9.49 |
||
|
19
|
19
929-01082-00-00
Washer, Plain
ワツシヤ，プレーン; |
929-01082-00-00 |
— | ||
| replacements | |||||
|
19
|
19
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.07 |
||
|
19
|
19
92907-08200-00 Washerワツシヤ，プレーン; |
92907-08200-00 |
from US $1.56 |
||
|
20
|
20
95303-08800-00 Nut (Crown) (93501-08800-00)ナツト，ユー; |
95303-08800-00 |
from US $3.12 |
||
|
21
|
21
2J2-27430-02-00
Rr Footrest Assembly 1
リヤフートレストアセンブリ ; レフト |
2J2-27430-02-00 |
— | ||
|
22
|
22
2J2-27440-01-00
Rr Footrest Assembly 2
リヤフートレストアセンブリ ; ライト |
2J2-27440-01-00 |
— | ||
|
23
|
23
447-27431-00-00 Footrest, Rear 1．フートレスト，リヤ ; レフト |
447-27431-00-00 |
from US $21.15 |
||
|
24
|
24
447-27441-00-00 Footrest, Rear 2．フートレスト，リヤ ; ライト |
447-27441-00-00 |
from US $16.92 |
||
|
25
|
25
1J7-27433-00-00 Cover, Rr Footrest．カバー，リヤフートレスト ; レフト |
1J7-27433-00-00 |
US $46.12 |
||
|
26
|
26
1J7-27444-00-00 Cover, Rr Footrest．カバー，リヤフートレスト ; ライト |
1J7-27444-00-00 |
US $37.73 |
||
|
27
|
27
914-01160-12-00
Pin, Cotter
．ピン，コツタ; |
914-01160-12-00 |
— | ||
| replacement | |||||
|
27
|
27
914-90160-20-00 Pin, Cotter．ピン，コツタ; |
914-90160-20-00 |
from US $2.55 |
||
|
28
|
28
90209-18070-00 Washer, Spec'l Shape．ワツシヤ ; ４１７−２７１３７−００ |
90209-18070-00 |
from US $3.12 |
||
|
29
|
29
91701-06035-00 Pin, Clevis (2F9)．ピン，クレビス; |
91701-06035-00 |
from US $1.98 |
||
|
30
|
30
90185-12046-00 Nut, Self-Locking |
90185-12046-00 |
from US $6.38 |
||
| replacement | |||||
|
30
|
30
90185-12134-00 Nut, Self-Locking |
90185-12134-00 |
from US $6.30 |
||
|
31
|
31
97027-12050-00 Bolt, Hexagonボルト，ヘキサゴン; |
97027-12050-00 |
from US $7.51 |
||
|
32
|
32
929-01121-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01121-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-12100-00 Washer, Springワツシヤ，スプリング; |
92990-12100-00 |
from US $2.55 |
||
|
34
|
34
2J2-27211-01-93 Pedal, Brakeペダル，ブレーキ; |
2J2-27211-01-93 |
from US $68.69 |
||
| replacement | |||||
|
34
|
34
3HT-27211-00-00 Pedal, Brakeペダル，ブレーキ; |
3HT-27211-00-00 |
from US $111.36 |
||
|
35
|
35
90109-06468-00 Bolt |
90109-06468-00 |
from US $1.56 |
||
|
36
|
36
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
36
|
36
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
37
|
37
2J4-27212-00-00
Shaft, Brake Pedal
シヤフト，ブレーキペダル; |
2J4-27212-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
シヤフト，ブレーキペダル; |
999-99999-99-00 |
— | ||
|
38
|
38
90508-40381-00 Spring, Torsionスプリング，トーシヨン; |
90508-40381-00 |
from US $8.22 |
||
|
39
|
39
2J4-27231-00-00
Rod, Brake
ロツト，ブレーキ; |
2J4-27231-00-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
ロツト，ブレーキ; |
999-99999-99-00 |
— | ||
|
40
|
40
90240-08013-00 Pin, Clevisピン，ウイズホール; |
90240-08013-00 |
from US $1.66 |
||
|
41
|
41
90201-08083-00 Washer, Plateワツシヤ，ブレーキ; |
90201-08083-00 |
from US $1.60 |
||
|
42
|
42
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
42
|
42
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
42
|
42
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
43
|
43
90501-10518-00
Spring, Compression
|
90501-10518-00 |
— | ||
| replacement | |||||
|
43
|
43
905-01104-75-00
Spring (2E9)
|
905-01104-75-00 |
— | ||
|
44
|
44
1W2-27239-00-00
Seat, Spring
シート，スプリング; |
1W2-27239-00-00 |
— | ||
|
45
|
45
1W2-27237-00-00 Pin, Clevis |
1W2-27237-00-00 |
US $31.84 |
||
|
46
|
46
90175-06013-00 Nut, Wingナツト，ウインク; |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
46
|
46
90179-06411-00 Nutナツト，ウインク; |
90179-06411-00 |
from US $1.34 |
||
|
47
|
47
97301-06020-00 Boltボルト，ヘキサゴン; |
97301-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
47
|
47
970-17060-20-00 Boltボルト，ヘキサゴン; |
970-17060-20-00 |
from US $1.07 |
||
|
48
|
48
95301-06700-00 Nutナツト，ヘキサゴン; |
95301-06700-00 |
from US $1.43 |
||
| replacements | |||||
|
48
|
48
9538R-06700-00 Nutナツト，ヘキサゴン; |
9538R-06700-00 |
from US $1.42 |
||
|
48
|
48
953-80067-00-00 Nutナツト，ヘキサゴン; |
953-80067-00-00 |
from US $1.34 |
||
