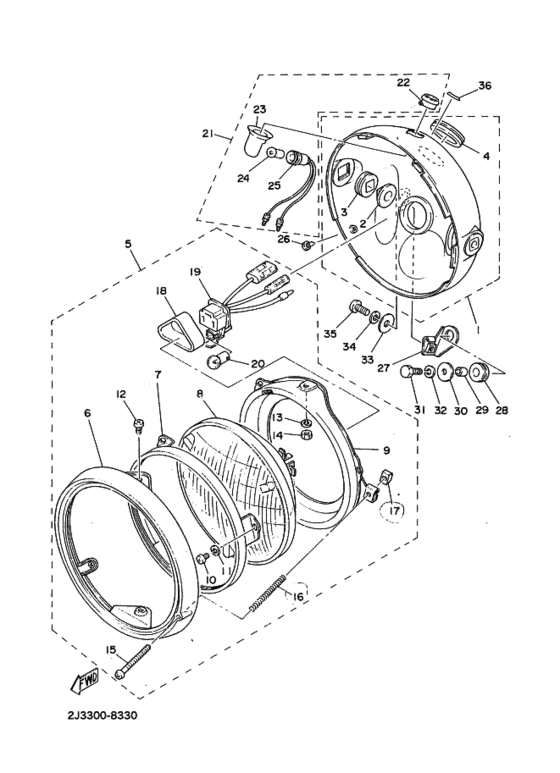

ﾍﾂﾄﾞﾗﾝﾌﾟ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2H6-84330-00-93
Body Assy
ボデイアセンブリ; |
2H6-84330-00-93 |
— | ||
|
2
|
2
584-84338-60-00 Collar, Body Ftng．カラー; |
584-84338-60-00 |
from US $7.79 |
||
|
3
|
3
584-84345-60-00 Damper, Headlight．ダンパ，ヘツドランプ; |
584-84345-60-00 |
from US $10.71 |
||
|
4
|
4
214-84153-60-00 Grommet, Wire Harness．フツシング; |
214-84153-60-00 |
from US $3.12 |
||
|
5
|
5
1J7-84310-01-00
Headlight Unit Assy
ヘツドランプユニツトアセンブリ; |
1J7-84310-01-00 |
— | ||
|
6
|
6
341-84315-40-00 Rim, Headlight．リム，ヘツドランプ; |
341-84315-40-00 |
from US $34.72 |
||
|
7
|
7
2F9-84395-00-00 Ring, Retaining．リング，リテーニング; |
2F9-84395-00-00 |
from US $46.28 |
||
|
8
|
8
341-81320-00-00
Lens assy
．レンズアセンブリ ; １２Ｖ−５０／４０Ｗ |
341-81320-00-00 |
— | ||
|
9
|
9
2F9-84394-00-00 Ring, Mounting．リング，マウンテイング; |
2F9-84394-00-00 |
from US $27.58 |
||
|
10
|
10
985-01040-08-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01040-08-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-04008-00 Screw, Pan Head (713)．スクリユ，パンヘツド; |
98580-04008-00 |
from US $1.21 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
98501-05010-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
12
|
12
97885-05010-00 Screw, Pan Head．スクリユ，パンヘツド; |
97885-05010-00 |
from US $1.01 |
||
|
13
|
13
929-01051-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
953-01056-00-00
Nut
．ナツト，ヘキサゴン; |
953-01056-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95380-05600-00 Nut．ナツト，ヘキサゴン; |
95380-05600-00 |
from US $1.42 |
||
|
15
|
15
2F9-84331-00-00 Screw, Lens Fitting．スクリユ，アジヤステイング; |
2F9-84331-00-00 |
from US $4.25 |
||
| replacement | |||||
|
15
|
15
98580-04055-00 Screw, Lens Fitting．スクリユ，アジヤステイング; |
98580-04055-00 |
from US $4.25 |
||
|
16
|
16
341-84332-60-00 Spring．スプリング，アジヤステイング; |
341-84332-60-00 |
from US $3.12 |
||
|
17
|
17
198-84334-60-00 Nut, Adjusting．ナツト; |
198-84334-60-00 |
from US $3.12 |
||
|
18
|
18
341-84397-61-00
Cover, Socket
．カバー，ソケツト; |
341-84397-61-00 |
— | ||
|
19
|
19
371-84312-00-00
Cord Assy
．コートアセンブリ; |
371-84312-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
．コートアセンブリ; |
999-99999-99-00 |
— | ||
|
20
|
20
254-84347-00-00
Bulb
．パルプ ; １２Ｖ−５Ｗ |
254-84347-00-00 |
— | ||
|
21
|
21
278-83582-00-00
Pilot Light Assy
パイロツトランプアセンブリ; |
278-83582-00-00 |
— | ||
|
22
|
22
309-83583-00-00
Lens, Pilot
．レンズ，パイロツトランプ; |
309-83583-00-00 |
— | ||
|
23
|
23
309-83587-00-00
Body, Pilot Light
．ボデイ，パイロツトランプ; |
309-83587-00-00 |
— | ||
|
24
|
24
123-83516-21-00 Bulb (12V3.4W)．．パルプ ; １２Ｖ−３１Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
24
|
24
123-83516-21-XX Bulb (12V-3.4W)．．パルプ ; １２Ｖ−３１Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
25
|
25
278-83586-00-00
Socket Assy
．ソケツトコードアセンブリ; |
278-83586-00-00 |
— | ||
|
26
|
26
90152-05005-00 Screw, Countersunkスクリユ，リムフイツテイング; |
90152-05005-00 |
from US $1.56 |
||
|
27
|
27
2J2-84318-00-00 Stay, Headlight 1ステー，ヘツドランプ; |
2J2-84318-00-00 |
from US $13.52 |
||
|
28
|
28
90480-14052-00 Grommet |
90480-14052-00 |
from US $1.35 |
||
|
29
|
29
903-87062-16-00
Collar
カラー; |
903-87062-16-00 |
— | ||
| replacement | |||||
|
29
|
29
90387-060A3-00 Collar (3H5)カラー; |
90387-060A3-00 |
from US $1.70 |
||
|
30
|
30
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
30
|
30
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
31
|
31
97301-06020-00 Boltボルト，ヘキサゴン; |
97301-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
31
|
31
970-17060-20-00 Boltボルト，ヘキサゴン; |
970-17060-20-00 |
from US $1.07 |
||
|
32
|
32
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
32
|
32
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
33
|
33
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
33
|
33
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
34
|
34
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
34
|
34
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
35
|
35
92501-06010-00 Screw, Pan Head |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
35
|
35
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
36
|
36
2H6-83585-50-00
Label, Warning
|
2H6-83585-50-00 |
— | ||
