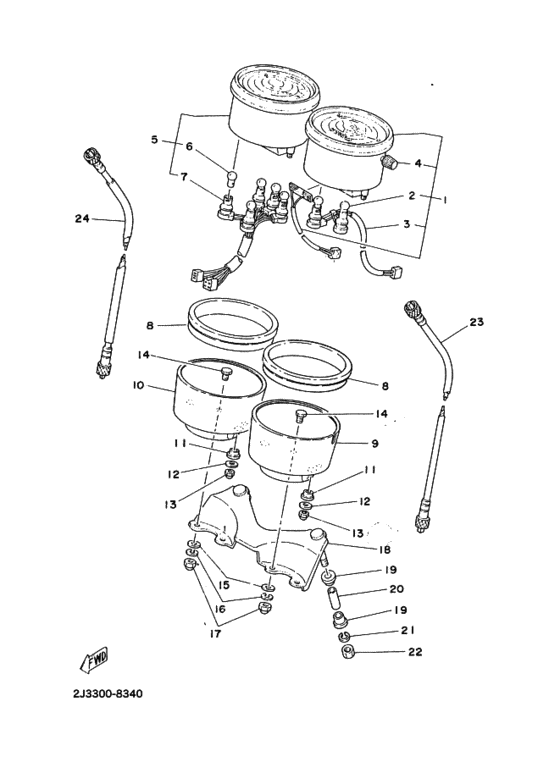

ｽﾋﾟｰﾄﾞﾒｰﾀ. ﾀｺﾒｰﾀ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2H6-83570-50-00
Speedometer Assy
スピードメータアセンブリ; ｋｍ／ｈ |
2H6-83570-50-00 |
— | ||
|
2
|
2
123-83516-21-00 Bulb (12V3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
2
|
2
123-83516-21-XX Bulb (12V-3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
3
|
3
2J2-83536-00-00
Socket, Meter
．ソケツトコードアセンブリ，スピードメータ; |
2J2-83536-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
．ソケツトコードアセンブリ，スピードメータ; |
999-99999-99-00 |
— | ||
|
4
|
4
584-83578-71-00 Knob, Trip Meter．ノブ; |
584-83578-71-00 |
from US $14.17 |
||
| replacement | |||||
|
4
|
4
4SV-83578-00-00 Knob, Trip Meter．ノブ; |
4SV-83578-00-00 |
from US $14.17 |
||
|
5
|
5
2J2-83540-F0-00
Tachometer Assy
タコメータアセンブリ; |
2J2-83540-F0-00 |
— | ||
|
6
|
6
123-83516-21-00 Bulb (12V3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
6
|
6
123-83516-21-XX Bulb (12V-3.4W)．．バルブ ; １２Ｖ−３４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
7
|
7
2J2-83520-00-00
Socket Cord Assembly
．ソケツトコードアセンブリ，タコメータ; |
2J2-83520-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
．ソケツトコードアセンブリ，タコメータ; |
999-99999-99-00 |
— | ||
|
8
|
8
584-83513-00-00 Damperダンパ，メータ; |
584-83513-00-00 |
US $21.39 |
||
| replacement | |||||
|
8
|
8
3H3-83513-00-00 Damperダンパ，メータ; |
3H3-83513-00-00 |
from US $21.39 |
||
|
9
|
9
2J2-83507-00-00 Cover, Speedometerカバー，スピードメータ; |
2J2-83507-00-00 |
from US $52.78 |
||
|
10
|
10
2J2-83508-00-00 Cover, Tachometerカバー，タコメータ; |
2J2-83508-00-00 |
from US $50.65 |
||
|
11
|
11
584-83523-00-00 Damper |
584-83523-00-00 |
from US $8.36 |
||
| replacement | |||||
|
11
|
11
21L-H3523-10-00
Damper
|
21L-H3523-10-00 |
— | ||
|
12
|
12
90201-05031-00 Washer, Plateワツシヤ，プレート ; ２５６−８２５１７−００ |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
12
|
12
90201-05725-00 Washer, Plateワツシヤ，プレート ; ２５６−８２５１７−００ |
90201-05725-00 |
from US $1.70 |
||
|
12
|
12
90201-05043-00 Washer, Plateワツシヤ，プレート ; ２５６−８２５１７−００ |
90201-05043-00 |
from US $1.70 |
||
|
13
|
13
95301-05800-00 Nut (Crown)ナツト，ウラウン; |
95301-05800-00 |
US $1.56 |
||
| replacement | |||||
|
13
|
13
953-04058-00-00 Nutナツト，ウラウン; |
953-04058-00-00 |
from US $1.56 |
||
|
14
|
14
584-83546-00-00 Bolt |
584-83546-00-00 |
from US $2.98 |
||
|
15
|
15
92901-06200-00 Washer, Plainワツシヤ，プレーン; |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.07 |
||
|
16
|
16
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
95301-06800-00 Nutナツト，クラウン; |
95301-06800-00 |
from US $0.90 |
||
| replacement | |||||
|
17
|
17
95380-06800-00 Nut (J17)ナツト，クラウン; |
95380-06800-00 |
from US $1.07 |
||
|
18
|
18
2J2-83519-00-00 Bracket, Meterブラケツト，メータ; |
2J2-83519-00-00 |
from US $41.74 |
||
|
19
|
19
2J2-83541-00-00 Damper |
2J2-83541-00-00 |
from US $7.23 |
||
| replacement | |||||
|
19
|
19
1JK-83541-00-00 Damper |
1JK-83541-00-00 |
from US $7.23 |
||
|
20
|
20
90387-06676-00 Collar．．カラー ; ６５−１０５−２８ |
90387-06676-00 |
from US $3.10 |
||
|
21
|
21
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
21
|
21
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
95301-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
22
|
22
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.07 |
||
|
23
|
23
341-83550-01-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
341-83550-01-00 |
from US $28.22 |
||
| replacement | |||||
|
23
|
23
16M-83550-01-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
16M-83550-01-00 |
from US $29.81 |
||
|
24
|
24
2J2-83560-00-00 Tachometer Cable Assyタコメータケーブルアセンブリ; |
2J2-83560-00-00 |
from US $17.96 |
||
| replacement | |||||
|
24
|
24
2J2-83560-10-00 Tachometer Cable Assyタコメータケーブルアセンブリ; |
2J2-83560-10-00 |
from US $21.60 |
||
