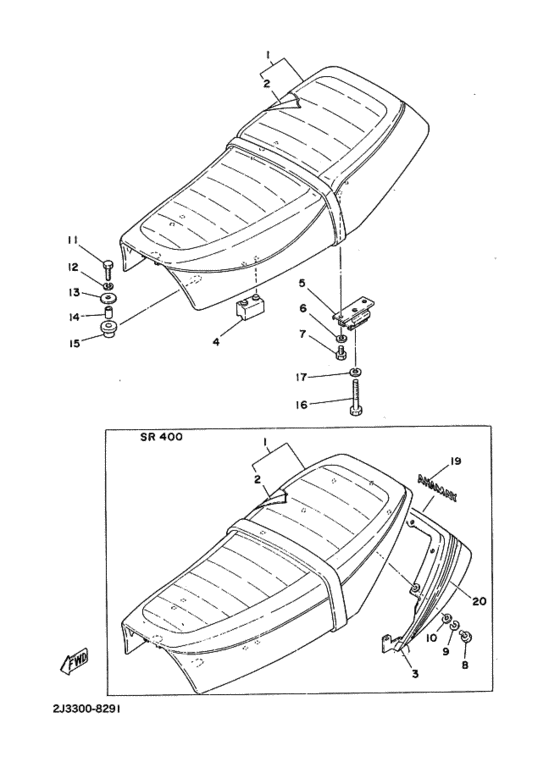

Seat Diagram Yamaha SR400
- Year
- 1978
- Colour
- Candy Maroon (CNM; 00H6)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-24730-91-00
Double Seat Assy
ダブルシートアセンブリ; |
2J2-24730-91-00 |
— | ||
| replacement | |||||
|
1
|
1
2J2-W2472-01-00
Double Seat Assembly (2J2-24730
ダブルシートアセンブリ; |
2J2-W2472-01-00 |
— | ||
|
2
|
2
2J3-24731-00-00
Cover, Seat
．カバー，ダブルシート; |
2J3-24731-00-00 |
— | ||
|
3
|
3
2J2-24756-00-H6
Cover, Tail
カバー，テール; マコーマルーン |
2J2-24756-00-H6 |
— | ||
|
4
|
4
2J2-24723-00-00 Damper, Seatダンパ，シート １; |
2J2-24723-00-00 |
from US $14.17 |
||
|
5
|
5
2J2-24724-01-00 Damper, Seatダンパ，シート ２; |
2J2-24724-01-00 |
from US $34.29 |
||
|
6
|
6
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
97301-06010-00 Boltボルト，ヘキサゴン; |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
97017-06010-00 Boltボルト，ヘキサゴン; |
97017-06010-00 |
from US $1.66 |
||
|
8
|
8
97301-05012-00 Boltボルト，ヘキサゴン; |
97301-05012-00 |
from US $1.53 |
||
| replacement | |||||
|
8
|
8
97013-05012-00 Boltボルト，ヘキサゴン; |
97013-05012-00 |
from US $1.57 |
||
|
9
|
9
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
10
|
10
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
10
|
10
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
11
|
11
97301-06030-00 Boltボルト，ヘキサゴン; |
97301-06030-00 |
from US $1.07 |
||
| replacements | |||||
|
11
|
11
970-17060-25-00 Boltボルト，ヘキサゴン; |
970-17060-25-00 |
from US $1.36 |
||
|
11
|
11
97017-06030-00 Boltボルト，ヘキサゴン; |
97017-06030-00 |
from US $1.07 |
||
|
12
|
12
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
90201-06075-00 Washer, Plateワツシヤ，プレート ; ８０８−２１１８６−００ |
90201-06075-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
90201-06074-00 Washer, Plateワツシヤ，プレート ; ８０８−２１１８６−００ |
90201-06074-00 |
from US $1.66 |
||
|
14
|
14
90387-06554-00 Collar, Lever 1カラー; |
90387-06554-00 |
from US $6.09 |
||
| replacement | |||||
|
14
|
14
36Y-83913-01-00 Collar, Lever 1カラー; |
36Y-83913-01-00 |
from US $6.09 |
||
|
15
|
15
2J2-24737-00-00 Damper, Seatダンパ，シート; |
2J2-24737-00-00 |
from US $6.94 |
||
|
16
|
16
97301-08070-00 Bolt, Flat Headボルト，ヘキサゴン; |
97301-08070-00 |
from US $4.68 |
||
| replacement | |||||
|
16
|
16
97027-08070-00 Bolt, Hexagonボルト，ヘキサゴン; |
97027-08070-00 |
from US $4.68 |
||
|
17
|
17
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
2H6-24786-00-00
Emblem
エンブレム，テールカバー; |
2H6-24786-00-00 |
— | ||
|
20
|
20
2H6-24757-00-00
Graphic, Tail Cover
グラフイツク，テールカバー; |
2H6-24757-00-00 |
— | ||
