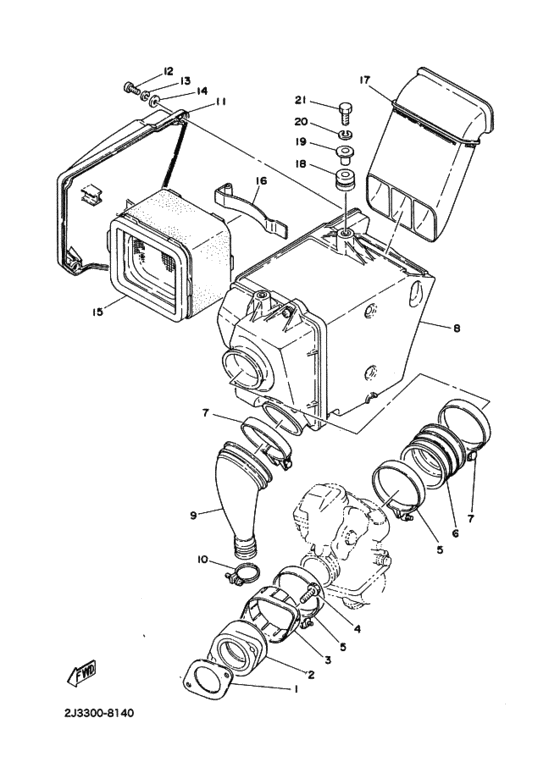

Intake Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-13556-01-00 Gasket, Manifoldガスケツト，マニホルド; |
583-13556-01-00 |
from US $5.58 |
||
| replacement | |||||
|
1
|
1
3HT-13556-00-00 Gasket, Manifoldガスケツト，マニホルド; |
3HT-13556-00-00 |
from US $8.93 |
||
|
2
|
2
583-13565-01-00 Joint, Carburetorマニホルド，インテーク; |
583-13565-01-00 |
from US $112.19 |
||
|
3
|
3
256-13564-00-00 Cover, Carb.jointカバー，ジヨイント; |
256-13564-00-00 |
from US $17.21 |
||
|
4
|
4
913-16060-25-00
Bolt
ボルト，ヘキサゴンソケツトヘツド; |
913-16060-25-00 |
— | ||
| replacement | |||||
|
4
|
4
913-17060-25-00 Boltボルト，ヘキサゴンソケツトヘツド; |
913-17060-25-00 |
from US $1.07 |
||
|
5
|
5
90460-58015-00 Hose Clamp Assyクランプ，ホース ; ３７１−１４４５６−００ |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
5
|
5
90450-58002-00 Hose Clamp Assyクランプ，ホース ; ３７１−１４４５６−００ |
90450-58002-00 |
from US $4.53 |
||
|
6
|
6
583-14453-00-00 Joint, Air Clnr 1ジヨイント，エアクリーナ; |
583-14453-00-00 |
from US $32.87 |
||
| replacement | |||||
|
6
|
6
583-14453-01-00 ジヨイント，エアクリーナ; |
583-14453-01-00 |
US $11.07 |
||
|
7
|
7
90460-61063-00 Hose Clamp Assyクランプ，ホース ; ２５６−１４４５５−００ |
90460-61063-00 |
from US $8.22 |
||
| replacements | |||||
|
7
|
7
90450-59009-00 Hose Clamp Assyクランプ，ホース ; ２５６−１４４５５−００ |
90450-59009-00 |
from US $8.22 |
||
|
7
|
7
90450-62006-00 Hose Clamp Assyクランプ，ホース ; ２５６−１４４５５−００ |
90450-62006-00 |
from US $8.22 |
||
|
8
|
8
2J2-14401-00-00
Air Clnr Case Assembly
エアクリーナケースセツト; |
2J2-14401-00-00 |
— | ||
|
9
|
9
2J2-14463-00-00
Joint, Air Clnr 2
ジヨイント，プリーザ; |
2J2-14463-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
ジヨイント，プリーザ; |
999-99999-99-00 |
— | ||
|
10
|
10
90460-22083-00 Clamp, Hoseクランプ，ホース; |
90460-22083-00 |
from US $5.24 |
||
|
11
|
11
2J2-14422-00-00
Cap, Cleaner Case 2
キヤツプ，エアクリーナケース; |
2J2-14422-00-00 |
— | ||
|
12
|
12
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
12
|
12
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
12
|
12
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
13
|
13
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
929-01056-00-00
Washer
ワツシヤ，プレート; |
929-01056-00-00 |
— | ||
| replacements | |||||
|
14
|
14
92990-05600-00 Washer, Plateワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.07 |
||
|
15
|
15
2J2-14451-00-00 Element, Air Clnrエレメント，エアクリーナ; |
2J2-14451-00-00 |
from US $25.70 |
||
| replacement | |||||
|
15
|
15
2J2-14451-01-00 エレメント，エアクリーナ; |
2J2-14451-01-00 |
US $24.34 |
||
|
16
|
16
2J2-14468-00-00
Plate, Element Ftng
プレート，エレメント; |
2J2-14468-00-00 |
— | ||
|
17
|
17
2J2-14437-00-00
Duct
|
2J2-14437-00-00 |
— | ||
|
18
|
18
904-80141-02-00
Grommet
グロメツト ; ２１４−２１７１７−００ |
904-80141-02-00 |
— | ||
| replacement | |||||
|
18
|
18
90480-14023-00 Grommet 839774310000グロメツト ; ２１４−２１７１７−００ |
90480-14023-00 |
from US $1.56 |
||
|
19
|
19
903-87073-91-00 Collarカラー ; ４３７−２１６３３−００ |
903-87073-91-00 |
from US $1.84 |
||
|
20
|
20
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
97301-06025-00 Boltボルト，ヘキサゴン; |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
970-17060-25-00 Boltボルト，ヘキサゴン; |
970-17060-25-00 |
from US $1.34 |
||
