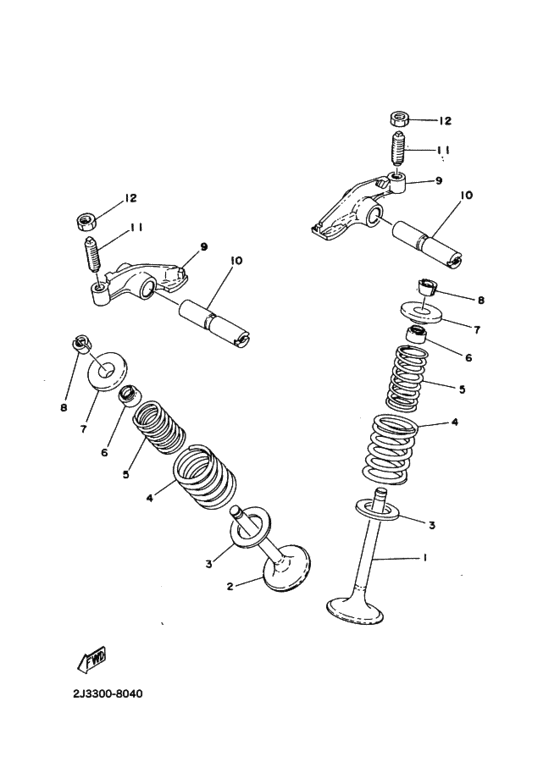

ﾊﾞﾙﾌﾞ. ﾛﾂｶｱｰﾑ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-12111-00-00 Valve, Intakeバルブ，インテーク; |
2J2-12111-00-00 |
US $61.20 |
||
| replacement | |||||
|
1
|
1
2J2-12111-01-00 Valve, Intakeバルブ，インテーク; |
2J2-12111-01-00 |
from US $36.38 |
||
|
2
|
2
583-12121-00-00 Valve, Exhaustバルブ，エキゾースト; |
583-12121-00-00 |
from US $175.75 |
||
|
3
|
3
256-12116-01-00
Seat, Valve Spring
シート，バルブスプリング; |
256-12116-01-00 |
— | ||
|
4
|
4
90501-44455-00 Spring, Compressionスプリング，アウタ; |
90501-44455-00 |
from US $11.62 |
||
|
5
|
5
90501-31454-00 Spring, Compressionスプリング，インナ; |
90501-31454-00 |
from US $7.65 |
||
|
6
|
6
341-12119-02-00 Seal, Valve Stemシール，バルブステムオイル; |
341-12119-02-00 |
from US $11.33 |
||
|
7
|
7
256-12117-00-00 Retainer, Valve Springリテーナ，バルブスプリング; |
256-12117-00-00 |
US $14.17 |
||
| replacement | |||||
|
7
|
7
256-12117-02-00 Retainer, Valve Sprリテーナ，バルブスプリング; |
256-12117-02-00 |
from US $14.17 |
||
|
8
|
8
341-12118-00-00 Cotter, Valveロツク，バルブスプリングリテーナ; |
341-12118-00-00 |
from US $4.39 |
||
|
9
|
9
583-12151-00-00 Arm, Valve Rockerアーム，バルブロツカ; |
583-12151-00-00 |
from US $149.94 |
||
|
10
|
10
583-12156-01-00 Shaft, Rocker 2 |
583-12156-01-00 |
from US $28.19 |
||
| replacement | |||||
|
10
|
10
583-12156-02-00 Shaft, Rocker 2 |
583-12156-02-00 |
from US $28.19 |
||
|
11
|
11
583-12159-00-00 Screw, Valve Adjustingスクリユ; |
583-12159-00-00 |
from US $15.58 |
||
| replacement | |||||
|
11
|
11
3HT-12159-R0-00 Screw, Valve Adjustingスクリユ; |
3HT-12159-R0-00 |
from US $15.58 |
||
|
12
|
12
90170-08173-00 Nut |
90170-08173-00 |
from US $1.28 |
||
