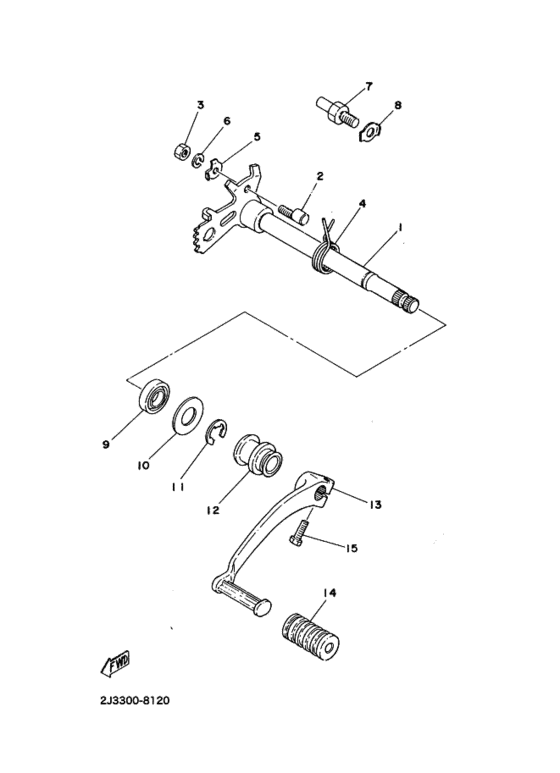

ｼﾌﾀ 2 Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-18103-00-00 Shaft, Shiftシフトシヤフトコンプリート; |
2J2-18103-00-00 |
from US $67.15 |
||
|
2
|
2
90149-06017-00 Screw, Spec''l Shape (214-18186スクリユ ; ２１４−１８１８６−００ |
90149-06017-00 |
from US $4.96 |
||
|
3
|
3
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
3
|
3
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
4
|
4
90508-32052-00 Spring, Torsion (214-18124-00)スプリング，トーシヨン ; ２１４−１８１２４−００ |
90508-32052-00 |
from US $6.09 |
||
|
5
|
5
90215-06016-00 Washer, Lock |
90215-06016-00 |
from US $1.84 |
||
|
6
|
6
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
278-18127-00-00 Stopper, Screw |
278-18127-00-00 |
from US $8.50 |
||
| replacement | |||||
|
7
|
7
278-18127-01-00 Stopper, Screw |
278-18127-01-00 |
from US $8.50 |
||
|
8
|
8
90215-08115-00 Washer, Lock |
90215-08115-00 |
from US $1.70 |
||
|
9
|
9
93109-14010-00 Oil Seal, Sdo-Typeオイルシール ; ＳＤＯ−１４−２４−６ |
93109-14010-00 |
from US $5.30 |
||
|
10
|
10
90201-14220-00 Washer Plate 248181370000ワツシヤ，プレート ; ２４８−１８１３７−００ |
90201-14220-00 |
from US $1.56 |
||
|
11
|
11
93430-12009-00 Circlipサークリツプ ; Ｅ−１２ |
93430-12009-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
99001-12600-00 Circlipサークリツプ ; Ｅ−１２ |
99001-12600-00 |
from US $1.56 |
||
|
12
|
12
583-18131-00-00 Boot, Sealingブーツ，シーリング; |
583-18131-00-00 |
from US $10.06 |
||
|
13
|
13
2J2-18111-00-93 Pedal, Shift |
2J2-18111-00-93 |
from US $57.34 |
||
| replacement | |||||
|
13
|
13
2J2-18111-01-00 Pedal, Shift |
2J2-18111-01-00 |
from US $57.34 |
||
|
14
|
14
132-18113-01-00 Cover, Shift Pedalカバー，シフトペダル; |
132-18113-01-00 |
from US $1.66 |
||
|
15
|
15
97321-06020-00 Boltボルト，ヘキサゴン; |
97321-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
970-17060-20-00 Boltボルト，ヘキサゴン; |
970-17060-20-00 |
from US $1.07 |
||
