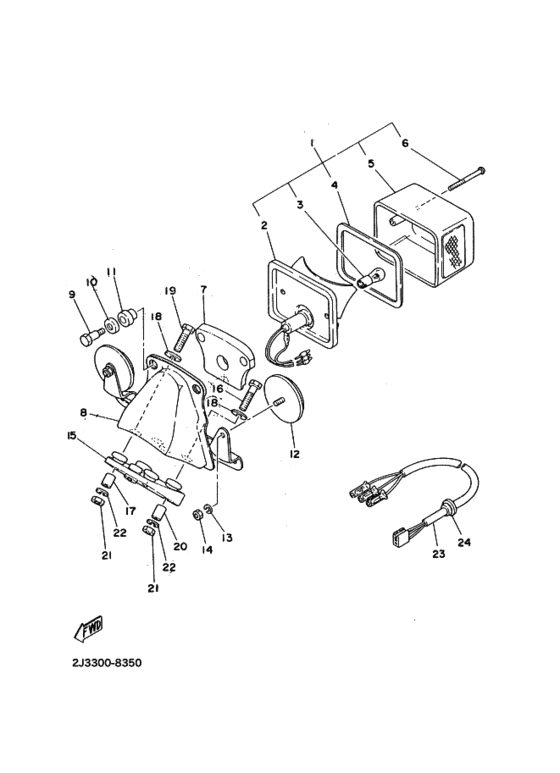

ﾃｰﾙﾗﾝﾌﾟ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-84710-60-00 Taillight Unit Assyテールランプユニツトアセンブリ; |
2J2-84710-60-00 |
from US $78.34 |
||
| replacement | |||||
|
1
|
1
1W9-84710-61-00 Taillight Unit Assyテールランプユニツトアセンブリ; |
1W9-84710-61-00 |
from US $78.34 |
||
|
2
|
2
2J2-84711-60-00 Taillight Unit Assy．ベース，テールランプ; |
2J2-84711-60-00 |
from US $77.31 |
||
| replacement | |||||
|
2
|
2
1W9-84710-61-00 Taillight Unit Assy．ベース，テールランプ; |
1W9-84710-61-00 |
from US $78.34 |
||
|
3
|
3
256-84714-61-00
Bulb (12V-27/8W)
．バルブ，テールランプ ; １２Ｖ−２７−８Ｗ |
256-84714-61-00 |
— | ||
| replacements | |||||
|
3
|
3
137-84714-61-XX
Bulb (12V-21/5W)
．バルブ，テールランプ ; １２Ｖ−２７−８Ｗ |
137-84714-61-XX |
— | ||
|
3
|
3
137-84714-61-00 Bulb (12V-21/5W)．バルブ，テールランプ ; １２Ｖ−２７−８Ｗ |
137-84714-61-00 |
from US $4.53 |
||
|
4
|
4
1M1-84523-60-00 Gasket, Lens．ガスケツト，テールランプ; |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
4
|
4
3TJ-14457-00-00 Seal．ガスケツト，テールランプ; |
3TJ-14457-00-00 |
from US $15.30 |
||
|
5
|
5
1M1-84521-60-00 Lens, Tail Lamp．レンズ，テールランプ; |
1M1-84521-60-00 |
from US $32.08 |
||
|
6
|
6
1M1-84524-60-00
Screw, Lens Fitting
．スクリユ，レンズフイツテイング; |
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
6
|
6
90157-04111-00 Screw, Pan Head(M80)Screw, pan head ．スクリユ，レンズフイツテイング; |
90157-04111-00 |
from US $2.27 |
||
|
6
|
6
5BF-8433E-00-00 Screw, Adjusting．スクリユ，レンズフイツテイング; |
5BF-8433E-00-00 |
from US $2.13 |
||
|
7
|
7
1M1-84512-60-00 Seat, Baseシート，ベース; |
1M1-84512-60-00 |
from US $10.71 |
||
|
8
|
8
2H6-84751-00-93
Bracket, License
|
2H6-84751-00-93 |
— | ||
|
9
|
9
1M1-84526-60-00 Bolt |
1M1-84526-60-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
10
|
10
437-84525-60-00 Washer, Special |
437-84525-60-00 |
US $3.40 |
||
| replacement | |||||
|
10
|
10
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
11
|
11
1M1-84527-60-00 Damper |
1M1-84527-60-00 |
from US $6.52 |
||
|
12
|
12
449-85131-01-00 Reflector, Rear 1レフレクタ; |
449-85131-01-00 |
from US $22.21 |
||
| replacement | |||||
|
12
|
12
449-85131-02-00 Reflector, Rear 1レフレクタ; |
449-85131-02-00 |
from US $9.60 |
||
|
13
|
13
92903-05100-00 Washer, Springワツシヤ，スプリング; |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
13
|
13
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
95303-05600-00 Nutナツト，ヘキサゴン; |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
95380-05600-00 Nutナツト，ヘキサゴン; |
95380-05600-00 |
from US $1.42 |
||
|
15
|
15
2J2-84753-00-00 Damperダンパ，テールランプ; |
2J2-84753-00-00 |
from US $16.86 |
||
|
16
|
16
97301-06030-00 Boltボルト，ヘキサゴン; |
97301-06030-00 |
from US $1.07 |
||
| replacements | |||||
|
16
|
16
970-17060-25-00 Boltボルト，ヘキサゴン; |
970-17060-25-00 |
from US $1.34 |
||
|
16
|
16
97017-06030-00 Boltボルト，ヘキサゴン; |
97017-06030-00 |
from US $1.07 |
||
|
17
|
17
903-87073-90-00
Collar
．カラー ; ７−１０−１１５ |
903-87073-90-00 |
— | ||
| replacement | |||||
|
17
|
17
90387-07020-00 Collar．カラー ; ７−１０−１１５ |
90387-07020-00 |
from US $1.98 |
||
|
18
|
18
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
19
|
19
97301-06025-00 Boltボルト，ヘキサゴン; |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
970-17060-25-00 Boltボルト，ヘキサゴン; |
970-17060-25-00 |
from US $1.34 |
||
|
20
|
20
90387-07004-00 Collar．カラー ; ７−１０−１５５ |
90387-07004-00 |
from US $3.83 |
||
| replacement | |||||
|
20
|
20
90387-07392-00 Collar．カラー ; ７−１０−１５５ |
90387-07392-00 |
from US $3.83 |
||
|
21
|
21
95301-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
21
|
21
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.07 |
||
|
22
|
22
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
22
|
22
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
2J2-84717-00-00 Cord, Taillightコード，テールランプ; |
2J2-84717-00-00 |
US $16.20 |
||
| replacement | |||||
|
23
|
23
3Y3-84517-00-00 Cord, Taillightコード，テールランプ; |
3Y3-84517-00-00 |
US $16.20 |
||
|
24
|
24
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
