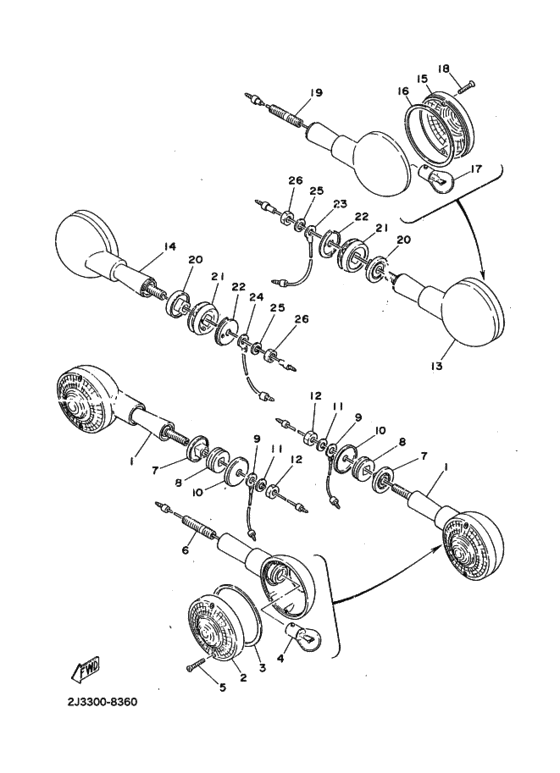

ﾌﾗﾂｼﾔﾗﾝﾌﾟ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
341-83310-72-93 R Flshr Lite Assemblyフロントフラツシヤランプアセンブリ; |
341-83310-72-93 |
US $144.25 |
||
| replacement | |||||
|
1
|
1
1E5-83330-20-93
R Flshr Lite Assembly
フロントフラツシヤランプアセンブリ; |
1E5-83330-20-93 |
— | ||
|
2
|
2
341-83312-70-00 Lens, Flasher．レンズ，フラツシヤ; |
341-83312-70-00 |
from US $7.28 |
||
|
3
|
3
341-83313-70-00 Gasket, Flshr Lens．ガスケツト，フラツシヤレンズ; |
341-83313-70-00 |
from US $4.07 |
||
| replacement | |||||
|
3
|
3
3Y6-83313-00-00 Gasket, Flshr Lens．ガスケツト，フラツシヤレンズ; |
3Y6-83313-00-00 |
from US $4.39 |
||
|
4
|
4
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $1.91 |
||
| replacement | |||||
|
4
|
4
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
5
|
5
341-83333-70-00 Screw, Special．スクリユ，レンズフイツテイング; |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
5
|
5
57M-83358-00-00 Screw, Special．スクリユ，レンズフイツテイング; |
57M-83358-00-00 |
from US $1.56 |
||
|
5
|
5
901-51030-03-00 Screw, Countersunk．スクリユ，レンズフイツテイング; |
901-51030-03-00 |
from US $1.40 |
||
|
6
|
6
341-83367-00-00
Bolt, Stud
．ボルト，スタツト; |
341-83367-00-00 |
— | ||
| replacement | |||||
|
6
|
6
341-83367-09-00
Bolt, Stud
．ボルト，スタツト; |
341-83367-09-00 |
— | ||
|
7
|
7
341-83316-01-00 Collar, Flasherカラー，フラツシヤ; |
341-83316-01-00 |
from US $11.33 |
||
| replacement | |||||
|
7
|
7
341-83316-02-00 COLLAR, FLASHER 1カラー，フラツシヤ; |
341-83316-02-00 |
from US $9.52 |
||
|
8
|
8
341-83321-01-00 Damper, Flasher 1ダンパ，フラツシヤ; |
341-83321-01-00 |
from US $2.69 |
||
|
9
|
9
371-82519-00-00
Wire, Earth
ワイヤ，アースリード; １２０Ｌ |
371-82519-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
ワイヤ，アースリード; １２０Ｌ |
999-99999-99-00 |
— | ||
|
10
|
10
90209-08098-00 Washer 341833480000ワツシヤ ; ３１１−８３３１８−００ |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
10
|
10
90209-08008-00 Washerワツシヤ ; ３１１−８３３１８−００ |
90209-08008-00 |
from US $5.24 |
||
|
11
|
11
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
12
|
12
95301-08600-00 Nut Hexagon (738)ナツト，ヘキサゴン; |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
12
|
12
997-80086-00-00 Nut, Hexナツト，ヘキサゴン; |
997-80086-00-00 |
from US $1.59 |
||
|
12
|
12
953-33086-00-00 Nutナツト，ヘキサゴン; |
953-33086-00-00 |
from US $1.42 |
||
|
13
|
13
371-83330-21-93
Rear Flasher Light Assy 1
リヤフラツシヤランプアセンブリ ; レフト |
371-83330-21-93 |
— | ||
| replacement | |||||
|
13
|
13
1E5-83330-20-93
R Flshr Lite Assembly
リヤフラツシヤランプアセンブリ ; レフト |
1E5-83330-20-93 |
— | ||
|
14
|
14
341-83330-21-93
R Flshr Lite Assembly
リヤフラツシヤランプアセンブリ ; ライト |
341-83330-21-93 |
— | ||
|
15
|
15
341-83312-70-00 Lens, Flasher．レンズ，フラツシヤ; |
341-83312-70-00 |
from US $7.28 |
||
|
16
|
16
341-83313-70-00 Gasket, Flshr Lens．ガスケツト，フラツシヤレンズ; |
341-83313-70-00 |
from US $4.07 |
||
| replacement | |||||
|
16
|
16
3Y6-83313-00-00 Gasket, Flshr Lens．ガスケツト，フラツシヤレンズ; |
3Y6-83313-00-00 |
from US $4.39 |
||
|
17
|
17
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $1.91 |
||
| replacement | |||||
|
17
|
17
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
18
|
18
341-83333-70-00 Screw, Special |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
18
|
18
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
18
|
18
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
19
|
19
371-83367-00-00
Bolt, Stud
．ボルト，スタツト; |
371-83367-00-00 |
— | ||
| replacements | |||||
|
19
|
19
360-83367-09-00
Bolt, Stud
．ボルト，スタツト; |
360-83367-09-00 |
— | ||
|
19
|
19
999-99999-99-00
Not Available
．ボルト，スタツト; |
999-99999-99-00 |
— | ||
|
20
|
20
341-83316-01-00 Collar, Flasherカラー，フラツシヤ; |
341-83316-01-00 |
from US $11.33 |
||
| replacement | |||||
|
20
|
20
341-83316-02-00 COLLAR, FLASHER 1カラー，フラツシヤ; |
341-83316-02-00 |
from US $9.52 |
||
|
21
|
21
1E6-83321-00-00 Damper, Flasherダンパ，フラツシヤ; |
1E6-83321-00-00 |
from US $10.19 |
||
|
22
|
22
1F6-83348-00-00
Washer
ワツシヤ，スペシヤル; |
1F6-83348-00-00 |
— | ||
|
23
|
23
1U4-83364-00-00 Wire, Earth Lead 2ワイヤ，アースリード; ３００Ｌ |
1U4-83364-00-00 |
from US $9.21 |
||
| replacement | |||||
|
23
|
23
3FU-83364-00-00 Wire, Earth (Ground) Lead 1ワイヤ，アースリード; ３００Ｌ |
3FU-83364-00-00 |
from US $9.21 |
||
|
24
|
24
1H2-83336-00-00 Cordワイヤ，アースリード; ５００Ｌ |
1H2-83336-00-00 |
from US $9.21 |
||
| replacement | |||||
|
24
|
24
3FU-83364-00-00 Wire, Earth (Ground) Lead 1ワイヤ，アースリード; ５００Ｌ |
3FU-83364-00-00 |
from US $9.21 |
||
|
25
|
25
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
26
|
26
95301-08600-00 Nut Hexagon (738)ナツト，ヘキサゴン; |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
26
|
26
997-80086-00-00 Nut, Hexナツト，ヘキサゴン; |
997-80086-00-00 |
from US $1.59 |
||
|
26
|
26
953-33086-00-00 Nutナツト，ヘキサゴン; |
953-33086-00-00 |
from US $1.42 |
||
