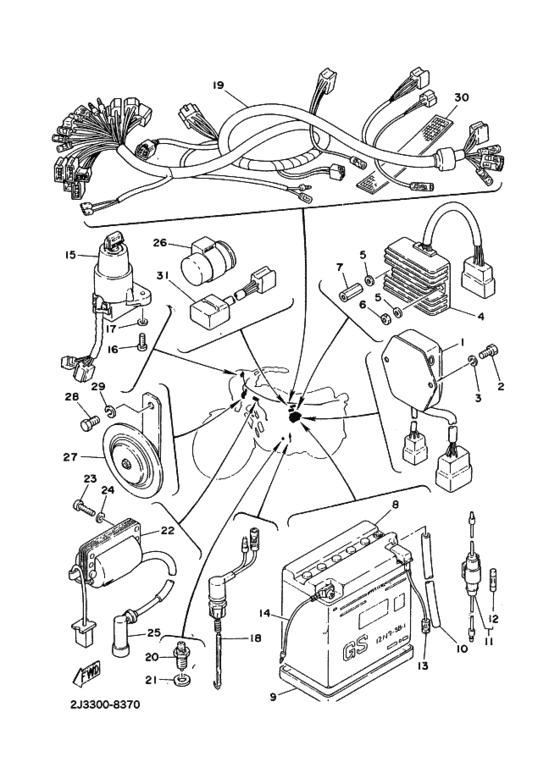

ｴﾚｸﾄﾘｶﾙ Diagram Yamaha SR400
- Year
- 1978
- Colour
- Black Gold (BG; 00H9)
- Model code
- 2H60
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-85540-50-00 Cdi Unit Assy．．．ＣＤＩユニツトアセンブリ; |
2J2-85540-50-00 |
US $599.80 |
||
| replacements | |||||
|
1
|
1
3H1-85540-51-00 C.d.i. Unit Assy．．．ＣＤＩユニツトアセンブリ; |
3H1-85540-51-00 |
US $598.82 |
||
|
1
|
1
999-99999-99-00
Not Available
．．．ＣＤＩユニツトアセンブリ; |
999-99999-99-00 |
— | ||
|
2
|
2
97301-06010-00 Boltボルト，ヘキサゴン; |
97301-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
97017-06010-00 Boltボルト，ヘキサゴン; |
97017-06010-00 |
from US $1.34 |
||
|
3
|
3
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
3
|
3
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
2J2-81960-A0-00 Rectifier/reg Assyレギユレタアセンブリ; |
2J2-81960-A0-00 |
from US $256.10 |
||
| replacement | |||||
|
4
|
4
2J2-81960-A1-00
Rectifier & Regulator Assy
レギユレタアセンブリ; |
2J2-81960-A1-00 |
— | ||
|
5
|
5
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
5
|
5
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
5
|
5
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
6
|
6
95301-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
6
|
6
95380-06600-00 Nut, Hexagonナツト，ヘキサゴン; |
95380-06600-00 |
from US $1.07 |
||
|
7
|
7
90170-06017-00 Nut |
90170-06017-00 |
US $8.08 |
||
| replacement | |||||
|
7
|
7
90170-06249-00
Nut
|
90170-06249-00 |
— | ||
|
8
|
8
165-82110-60-00
Battery Assy
バツテリアセンブリ; Ｇ．Ｓ．１２Ｎ７−３Ｂ−１ |
165-82110-60-00 |
— | ||
| replacements | |||||
|
8
|
8
12N-73BY0-00-00
CB3LB GS BATTERY
バツテリアセンブリ; Ｇ．Ｓ．１２Ｎ７−３Ｂ−１ |
12N-73BY0-00-00 |
— | ||
|
8
|
8
CB7-LB000-00-00
12N7-3B GS BATTERY
バツテリアセンブリ; Ｇ．Ｓ．１２Ｎ７−３Ｂ−１ |
CB7-LB000-00-00 |
— | ||
|
8
|
8
2G4-82110-09-00
Battery Assy (Yb7L-B)
バツテリアセンブリ; Ｇ．Ｓ．１２Ｎ７−３Ｂ−１ |
2G4-82110-09-00 |
— | ||
|
9
|
9
123-82122-00-00
Seat, Battery
シート，バツテリ; |
123-82122-00-00 |
— | ||
|
10
|
10
90445-08383-00 Hose．ホース ; ５０−７００ |
90445-08383-00 |
US $10.91 |
||
| replacement | |||||
|
10
|
10
90445-084J0-00 Pipe．ホース ; ５０−７００ |
90445-084J0-00 |
from US $8.28 |
||
|
11
|
11
2J2-82150-00-00
Fuse Holder Assy
フユーズホルダアセンブリ; |
2J2-82150-00-00 |
— | ||
| replacement | |||||
|
11
|
11
2J2-82150-10-00
Fuse Holder Assembly
フユーズホルダアセンブリ; |
2J2-82150-10-00 |
— | ||
|
12
|
12
1A0-82161-00-00 Fuse (12V-20A)．フユーズ ; １２Ｖ−２０Ａ |
1A0-82161-00-00 |
from US $11.96 |
||
|
13
|
13
2J2-82115-00-00 Wire, Plus Leadワイヤ，プラスリード; |
2J2-82115-00-00 |
US $26.21 |
||
| replacement | |||||
|
13
|
13
1M1-82115-00-00 Wire, Plus Leadワイヤ，プラスリード; |
1M1-82115-00-00 |
from US $26.21 |
||
|
14
|
14
2J2-82116-00-00 Wire, Minus Leadワイヤ，マイナスリード; |
2J2-82116-00-00 |
US $13.63 |
||
|
15
|
15
2J2-82508-00-00 Main Switch Assyメインスイツチ，ステアリングロツクアセンブリ; |
2J2-82508-00-00 |
US $259.92 |
||
| replacement | |||||
|
15
|
15
3GW-82501-00-00 Main Switch Assemblyassemblyメインスイツチ，ステアリングロツクアセンブリ; |
3GW-82501-00-00 |
US $258.64 |
||
|
16
|
16
92501-06015-00 Screw |
92501-06015-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
929-01066-00-00
Washer
ワツシヤ，プレート; |
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90201-061A5-00 Washer, Plate (4H7)ワツシヤ，プレート; |
90201-061A5-00 |
from US $1.84 |
||
|
17
|
17
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.04 |
||
|
18
|
18
2J2-82530-00-00 Stop Switch Assy |
2J2-82530-00-00 |
from US $41.03 |
||
| replacements | |||||
|
18
|
18
2J2-82530-03-00 Stop Switch Assy |
2J2-82530-03-00 |
from US $19.46 |
||
|
18
|
18
2J2-82530-04-00 Stop Switch Assy |
2J2-82530-04-00 |
US $19.73 |
||
|
19
|
19
2H6-82590-00-00
Wire Harness Assy
ワイヤハーネスアセンブリ; |
2H6-82590-00-00 |
— | ||
|
20
|
20
2H7-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
20
|
20
4KM-82540-00-00
Neutral Switch Assy
ニユートラルスイツチアセンブリ; |
4KM-82540-00-00 |
— | ||
|
20
|
20
4GY-82540-10-00 Neutral Switch Assyニユートラルスイツチアセンブリ; |
4GY-82540-10-00 |
from US $23.80 |
||
|
21
|
21
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
22
|
22
2J2-82310-50-00 Ignition Coil Assy |
2J2-82310-50-00 |
from US $205.86 |
||
| replacement | |||||
|
22
|
22
2J2-82310-51-00 Ignition Coil Assembly |
2J2-82310-51-00 |
from US $205.86 |
||
|
23
|
23
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
24
|
24
92901-06100-00 Washer, Springワツシヤ，プレート; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Springワツシヤ，プレート; |
929-95061-00-00 |
from US $0.99 |
||
|
25
|
25
1J7-82370-00-00 Plug Cap Assemblyプラグキヤツプ，アセンブリ; |
1J7-82370-00-00 |
from US $45.18 |
||
|
26
|
26
371-83350-71-00 Flasher Relay Assemblyフラツシヤリレーアセンブリ; |
371-83350-71-00 |
US $144.05 |
||
|
27
|
27
2J2-83371-00-00 Hornホーン; |
2J2-83371-00-00 |
US $112.95 |
||
| replacement | |||||
|
27
|
27
4V8-83371-20-00 Hornホーン; |
4V8-83371-20-00 |
US $112.95 |
||
|
28
|
28
973-01080-12-00
Bolt (661)
ボルト，ヘキサゴン; |
973-01080-12-00 |
— | ||
| replacements | |||||
|
28
|
28
999-99999-99-00
Not Available
ボルト，ヘキサゴン; |
999-99999-99-00 |
— | ||
|
28
|
28
97013-08012-00 Boltボルト，ヘキサゴン; |
97013-08012-00 |
from US $3.12 |
||
|
29
|
29
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
30
|
30
2J2-82589-00-00 Protecter, Wire Harnessプロテクタ，ワイヤハーネス; |
2J2-82589-00-00 |
US $1.70 |
||
| replacements | |||||
|
30
|
30
904-64151-95-00 Clampプロテクタ，ワイヤハーネス; |
904-64151-95-00 |
from US $1.35 |
||
|
30
|
30
90464-13077-00 Clampプロテクタ，ワイヤハーネス; |
90464-13077-00 |
from US $1.70 |
||
|
31
|
31
371-83581-00-00
Relay
リレー; |
371-83581-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
リレー; |
999-99999-99-00 |
— | ||
