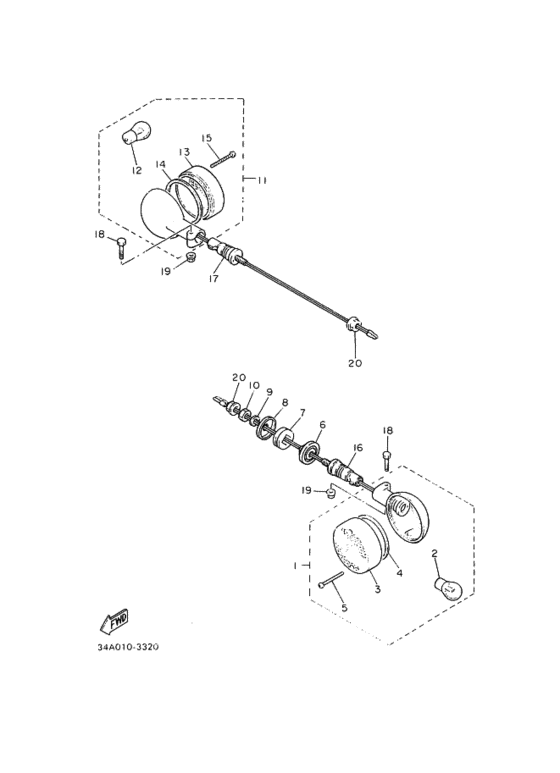

Flasher light Diagram Yamaha SR400
- Year
- 1983
- Colour
- Super Red (SUR; 002U)
- Model code
- 34E
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4X7-83310-K0-00 Front Flasher Light Assy 1 |
4X7-83310-K0-00 |
from US $75.59 |
||
| replacement | |||||
|
1
|
1
5K5-83330-K0-00 R Flshr Lite Assembly |
5K5-83330-K0-00 |
from US $36.58 |
||
|
2
|
2
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $1.91 |
||
| replacement | |||||
|
2
|
2
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
3
|
3
4H7-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
4H7-83312-00-00 |
from US $14.40 |
||
|
4
|
4
4H7-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; |
4H7-83313-00-00 |
from US $1.53 |
||
| replacement | |||||
|
4
|
4
1D6-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; |
1D6-83313-00-00 |
from US $3.12 |
||
|
5
|
5
98501-03030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-03030-00 |
from US $1.21 |
||
| replacements | |||||
|
5
|
5
98502-03530-00 Screw, Pan Head．スクリユ，パンヘツド; |
98502-03530-00 |
from US $1.21 |
||
|
5
|
5
98507-03030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-03030-00 |
from US $0.47 |
||
|
6
|
6
341-83316-01-00 Collar, Flasherカラー，フラツシヤ １; |
341-83316-01-00 |
from US $11.33 |
||
| replacement | |||||
|
6
|
6
341-83316-02-00 COLLAR, FLASHER 1カラー，フラツシヤ １; |
341-83316-02-00 |
from US $9.52 |
||
|
7
|
7
341-83321-01-00 Damper, Flasher 1 |
341-83321-01-00 |
from US $2.69 |
||
|
8
|
8
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
8
|
8
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
9
|
9
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
10
|
10
95301-08600-00 Nut Hexagon (738) |
95301-08600-00 |
from US $1.28 |
||
| replacements | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
10
|
10
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
11
|
11
4X7-83330-K0-00 R Flshr Lite Assemblyリヤフラツシヤライトアサンブリ １; |
4X7-83330-K0-00 |
from US $75.59 |
||
| replacement | |||||
|
11
|
11
5K5-83330-K0-00 R Flshr Lite Assemblyリヤフラツシヤライトアサンブリ １; |
5K5-83330-K0-00 |
from US $36.58 |
||
|
12
|
12
256-83311-70-00 Bulb (12V-27W)．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-00 |
from US $1.91 |
||
| replacement | |||||
|
12
|
12
256-83311-70-XX
Bulb (12V-27W)
．バルブ ; １２Ｖ−２７Ｗ |
256-83311-70-XX |
— | ||
|
13
|
13
4H7-83312-00-00 Lens, Flasher．レンズ，フラツシヤ; |
4H7-83312-00-00 |
from US $14.40 |
||
|
14
|
14
4H7-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; |
4H7-83313-00-00 |
from US $1.53 |
||
| replacement | |||||
|
14
|
14
1D6-83313-00-00 Gasket, Flasher Lens．ガスケツト，フラツシヤレンズ; |
1D6-83313-00-00 |
from US $3.12 |
||
|
15
|
15
98501-03030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-03030-00 |
from US $1.21 |
||
| replacements | |||||
|
15
|
15
98502-03530-00 Screw, Pan Head．スクリユ，パンヘツド; |
98502-03530-00 |
from US $1.21 |
||
|
15
|
15
98507-03030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-03030-00 |
from US $0.47 |
||
|
16
|
16
5K5-83318-00-00 Stay, Flasher 1ステー，フラツシヤ １; |
5K5-83318-00-00 |
from US $33.72 |
||
| replacement | |||||
|
16
|
16
1AA-83318-00-00 Stay,flasher 1ステー，フラツシヤ １; |
1AA-83318-00-00 |
from US $33.72 |
||
|
17
|
17
24M-83318-00-00 Stay, Flasher 1ステー，フラツシヤ １; |
24M-83318-00-00 |
from US $33.72 |
||
| replacement | |||||
|
17
|
17
1AA-83328-00-00 Stay, Flasher 2 (24M-83318-00)ステー，フラツシヤ １; |
1AA-83328-00-00 |
from US $33.72 |
||
|
18
|
18
97303-06030-00 Bolt |
97303-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
18
|
18
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
19
|
19
95701-06100-00 Nut, With Washer |
95701-06100-00 |
from US $1.13 |
||
| replacement | |||||
|
19
|
19
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
20
|
20
95701-12100-00 Nut, With Washer |
95701-12100-00 |
from US $1.98 |
||
| replacements | |||||
|
20
|
20
90179-12657-00 Nut |
90179-12657-00 |
from US $6.52 |
||
|
20
|
20
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $1.98 |
||
