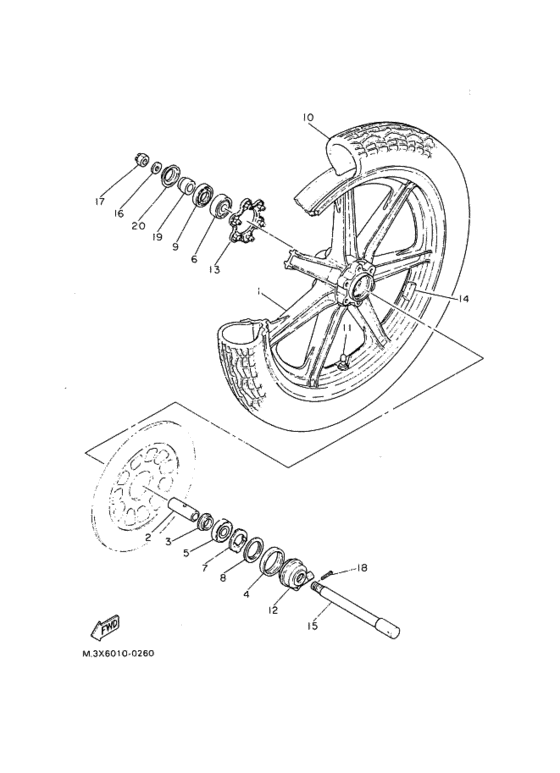

Front wheel (ｷﾔｽﾄﾎｲｰﾙｼﾔｾﾝﾖｳ) Diagram Yamaha SR400
- Year
- 1983
- Colour
- Super Red (SUR; 002U)
- Model code
- 34E
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3G5-25168-20-98
Cast Wheel, Front
キヤストホイール，フロント; ツヤケシブラツク |
3G5-25168-20-98 |
— | ||
|
2
|
2
90560-17126-00 Spacerスペーサ; |
90560-17126-00 |
from US $18.56 |
||
|
3
|
3
1A1-25115-00-00 Flange, Spacerフランジ，スペーサ １; |
1A1-25115-00-00 |
from US $3.40 |
||
| replacement | |||||
|
3
|
3
146-25315-00-00 Flange, Spacerフランジ，スペーサ １; |
146-25315-00-00 |
from US $3.40 |
||
|
4
|
4
93105-45017-00 Oil Sealオイルシール; |
93105-45017-00 |
from US $11.05 |
||
|
5
|
5
933-06303-09-00
Bearing
ベアリング ; Ｂ６３０３Ｚ |
933-06303-09-00 |
— | ||
| replacement | |||||
|
5
|
5
93306-30317-00 Bearingベアリング ; Ｂ６３０３Ｚ |
93306-30317-00 |
from US $28.19 |
||
|
6
|
6
93306-30303-00 Bearingベアリング ; Ｂ６３０３Ｚ |
93306-30303-00 |
from US $28.19 |
||
| replacement | |||||
|
6
|
6
93306-30317-00 Bearingベアリング ; Ｂ６３０３Ｚ |
93306-30317-00 |
from US $28.19 |
||
|
7
|
7
341-25149-00-00 Clutch, Meterクラツチ，メータ; |
341-25149-00-00 |
from US $3.54 |
||
|
8
|
8
341-25846-00-00 Retainer, Clutchリテーナ，クラツチ; |
341-25846-00-00 |
from US $2.98 |
||
|
9
|
9
93102-28022-00 Oil Sealオイルシール; |
93102-28022-00 |
from US $4.64 |
||
|
10
|
10
94132-19573-00
Tire (3.25-19)
タイヤ ; ３．２０−１９; ＵＲ ヨコハマ |
94132-19573-00 |
— | ||
|
10
|
10
94132-19579-00
Tire (3.25-19)
タイヤ ; ３．２０−１９; ＵＲ ブリジストン |
94132-19579-00 |
— | ||
|
11
|
11
93900-00001-00 Valve, RimＵＲ ブリジストン |
93900-00001-00 |
from US $12.75 |
||
| replacement | |||||
|
11
|
11
93900-00031-00 Valve, RimＵＲ ブリジストン |
93900-00031-00 |
from US $12.75 |
||
|
11
|
11
93900-00002-00 Valve, RimＵＲ ヨコハマ |
93900-00002-00 |
from US $12.75 |
||
| replacement | |||||
|
11
|
11
93900-00031-00 Valve, RimＵＲ ヨコハマ |
93900-00031-00 |
from US $12.75 |
||
|
12
|
12
341-25190-01-00 Gear Unit Assy |
341-25190-01-00 |
from US $82.51 |
||
| replacement | |||||
|
12
|
12
4TR-25190-20-00 Gear Unit Assy |
4TR-25190-20-00 |
from US $92.84 |
||
|
13
|
13
1U4-25847-00-00
Cover, Housing
カバー，ハウジング; |
1U4-25847-00-00 |
— | ||
|
14
|
14
1A1-25398-01-00 Balancer, Wheel (10G)バランサ，ホイール ; ２０Ｇ; ＵＮ |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
14
|
14
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイール ; ２０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $7.65 |
||
|
14
|
14
1A1-25399-00-00 Balancer, Wheel (10G)バランサ，ホイール ; １０Ｇ; ＵＮ |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
14
|
14
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイール ; １０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $7.65 |
||
|
14
|
14
2M0-25399-00-00 Balancer, Wheel (30G)バランサ，ホイール ; ３０Ｇ; ＵＮ |
2M0-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
14
|
14
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイール ; ３０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $7.65 |
||
|
15
|
15
341-25181-01-00 Axle, Wheelアクスル，ホイール; |
341-25181-01-00 |
from US $80.15 |
||
| replacement | |||||
|
15
|
15
999-99040-72-00 Axle, Wheelアクスル，ホイール; |
999-99040-72-00 |
from US $72.28 |
||
|
16
|
16
92901-14200-00 Washer, Plainワツシヤ，プレーン; |
92901-14200-00 |
US $1.42 |
||
| replacement | |||||
|
16
|
16
92990-14200-00 Washer, Plainワツシヤ，プレーン; |
92990-14200-00 |
from US $1.42 |
||
|
17
|
17
90171-14006-00 Nut, Castle |
90171-14006-00 |
US $9.07 |
||
| replacement | |||||
|
17
|
17
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
18
|
18
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
18
|
18
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
19
|
19
90387-17433-00
Collar
カラー; |
90387-17433-00 |
— | ||
|
20
|
20
341-25118-00-00
Cover, Hub Dust
カバー，ハブダスト; |
341-25118-00-00 |
— | ||
