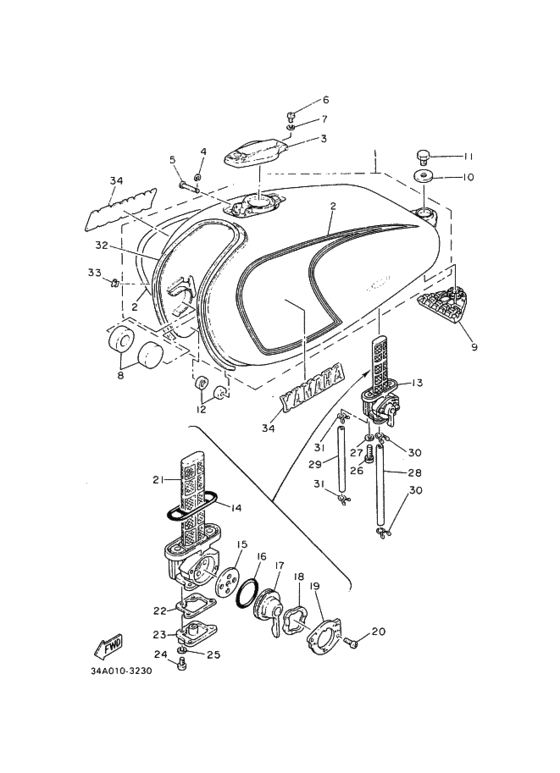

Fuel tank Diagram Yamaha SR400
- Year
- 1983
- Colour
- Super Red (SUR; 002U)
- Model code
- 34E
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-24110-T1-01
Fuel Tank Comp
フユエルタンクコンプリート; ＵＲ インジゴブルー |
2J2-24110-T1-01 |
— | ||
|
1
|
1
2J2-24110-T1-02
Fuel Tank Comp
フユエルタンクコンプリート; ＵＲ スーパーレッド |
2J2-24110-T1-02 |
— | ||
|
2
|
2
33Y-24240-00-00
Graphic Set
．グラフイツクセツト; ＵＲ インジゴブルー |
33Y-24240-00-00 |
— | ||
|
2
|
2
33Y-24240-10-00
Graphic Set
．グラフイツクセツト; ＵＲ スーパーレッド |
33Y-24240-10-00 |
— | ||
|
3
|
3
2J2-24602-01-00
Cap Assy
|
2J2-24602-01-00 |
— | ||
| replacements | |||||
|
3
|
3
4R0-24602-01-00
Cap Assembly
|
4R0-24602-01-00 |
— | ||
|
3
|
3
2M0-24602-01-00
Cap Assy
|
2M0-24602-01-00 |
— | ||
|
3
|
3
2M0-24602-00-00
Cap Assy
|
2M0-24602-00-00 |
— | ||
|
4
|
4
93430-02001-00 Circlipサークリツプ; |
93430-02001-00 |
from US $1.84 |
||
|
5
|
5
90249-03123-00
Pin, Special Shape
|
90249-03123-00 |
— | ||
|
6
|
6
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
6
|
6
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
6
|
6
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.50 |
||
|
7
|
7
929-01051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-05100-00 Washer, Springワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
8
|
8
2J2-24181-00-00 Damper, Locating 1ダンパ，ロケーテイング １; |
2J2-24181-00-00 |
from US $7.93 |
||
|
9
|
9
1J7-24182-01-00 Damper, Locating 2ダンパ，ロケーテイング ２; |
1J7-24182-01-00 |
from US $18.28 |
||
|
10
|
10
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
10
|
10
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
11
|
11
973-01080-12-00
Bolt (661)
|
973-01080-12-00 |
— | ||
| replacements | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
97013-08012-00 Bolt |
97013-08012-00 |
from US $3.12 |
||
|
12
|
12
2J2-24183-01-00 Damper, Locating 3 (2J2-24183-0ダンパ，ロケーテイング ３; |
2J2-24183-01-00 |
from US $6.38 |
||
|
13
|
13
2J2-24500-00-00 Fuel Cock Assy 1 |
2J2-24500-00-00 |
from US $146.32 |
||
| replacement | |||||
|
13
|
13
2J2-24500-01-00 Fuel Cock Assembly 1 |
2J2-24500-01-00 |
from US $149.21 |
||
|
14
|
14
1J7-24512-00-00 Gasket．Ｏ−リング; |
1J7-24512-00-00 |
from US $37.72 |
||
|
15
|
15
1J7-24523-00-00
Valve
．バルブ; |
1J7-24523-00-00 |
— | ||
| replacement | |||||
|
15
|
15
16G-24523-00-00 Valve．バルブ; |
16G-24523-00-00 |
from US $15.02 |
||
|
16
|
16
1J7-24534-00-00 Seal, Cock．シール，コツク; |
1J7-24534-00-00 |
from US $15.98 |
||
|
17
|
17
1J7-24524-00-00
Lever, Cock
．レバー，コツク; |
1J7-24524-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
．レバー，コツク; |
999-99999-99-00 |
— | ||
|
18
|
18
1J7-24518-00-00
Washer, Wave
．ワツシヤ，ウエーブ; |
1J7-24518-00-00 |
— | ||
|
19
|
19
1J7-24525-00-00
Plate, Lvr Fitting
．プレート，レバーフイツテイング; |
1J7-24525-00-00 |
— | ||
|
20
|
20
98501-03010-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-03010-00 |
from US $1.98 |
||
| replacement | |||||
|
20
|
20
98580-03010-00 Screw Pan Head．スクリユ，パンヘツド; |
98580-03010-00 |
from US $1.98 |
||
|
21
|
21
1J7-24514-02-00
Net, Filter 1
．ネツト，フイルタ １; |
1J7-24514-02-00 |
— | ||
|
22
|
22
1J7-24522-00-00 Gasket．ガスケツト; |
1J7-24522-00-00 |
from US $37.72 |
||
|
23
|
23
1L9-24521-00-00
Cup, Filter
．カバー，フユーエルコツクドレーン; |
1L9-24521-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
．カバー，フユーエルコツクドレーン; |
999-99999-99-00 |
— | ||
|
24
|
24
98501-04012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-04012-00 |
from US $1.07 |
||
| replacements | |||||
|
24
|
24
98517-04012-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04012-00 |
from US $1.07 |
||
|
24
|
24
985-11040-12-00 Screw, Panhead (4U5)．スクリユ，パンヘツド; |
985-11040-12-00 |
from US $1.07 |
||
|
25
|
25
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
26
|
26
90149-06008-00 Screw |
90149-06008-00 |
from US $1.70 |
||
|
27
|
27
902-02060-10-00
Washer Plate 178147660000
ワツシヤ，プレート; |
902-02060-10-00 |
— | ||
| replacement | |||||
|
27
|
27
902-02051-87-00 Washer, Plateワツシヤ，プレート; |
902-02051-87-00 |
from US $1.28 |
||
|
28
|
28
90445-10137-00 Hoseホース; |
90445-10137-00 |
from US $6.52 |
||
| replacement | |||||
|
28
|
28
904-45101-44-00 Hose (L450)ホース; |
904-45101-44-00 |
from US $4.64 |
||
|
29
|
29
90445-09497-00 Hoseホース; |
90445-09497-00 |
US $16.86 |
||
| replacement | |||||
|
29
|
29
90445-090G9-00 Hose (L685)ホース; |
90445-090G9-00 |
from US $16.86 |
||
|
30
|
30
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
30
|
30
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
31
|
31
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
32
|
32
2J2-24189-01-00 Mold, Fuel Tankモール，フユーエルタンク; |
2J2-24189-01-00 |
from US $27.32 |
||
| replacement | |||||
|
32
|
32
3EB-24189-00-00
Plate, Mold
モール，フユーエルタンク; |
3EB-24189-00-00 |
— | ||
|
33
|
33
90468-06063-00
Clip
クリツプ; |
90468-06063-00 |
— | ||
|
34
|
34
3X0-24161-01-00 Emblem 1 |
3X0-24161-01-00 |
from US $41.59 |
||
