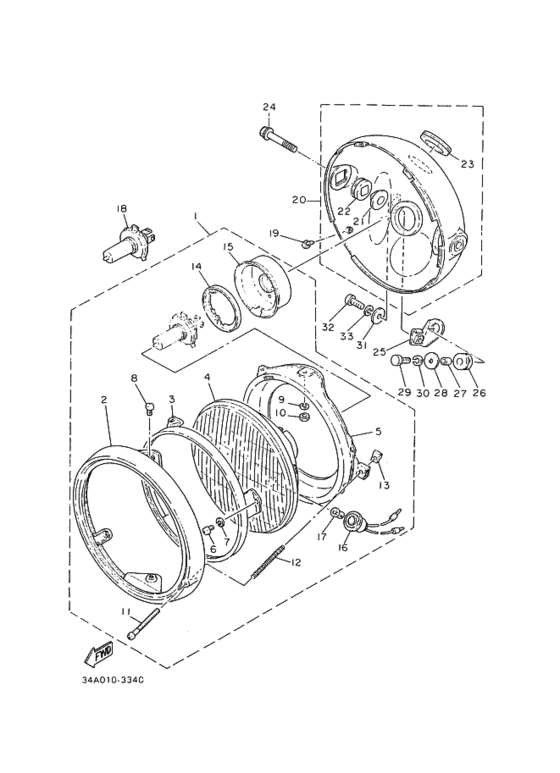

Headlight Diagram Yamaha SR400
- Year
- 1983
- Colour
- Super Red (SUR; 002U)
- Model code
- 34E
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J4-84303-30-00
Headlight Unit Assy
|
2J4-84303-30-00 |
— | ||
|
2
|
2
341-84315-40-00 Rim, Headlight．リムヘツドライト; |
341-84315-40-00 |
from US $34.72 |
||
|
3
|
3
2F9-84395-00-00 Ring, Retaining．リング，リテーニング; |
2F9-84395-00-00 |
from US $46.28 |
||
|
4
|
4
2F9-84321-00-00 Lens Assy．レンズ，ヘッドライト; |
2F9-84321-00-00 |
US $171.32 |
||
|
5
|
5
2F9-84394-00-00 Ring, Mounting．リング，マウンテイング; |
2F9-84394-00-00 |
from US $27.58 |
||
|
6
|
6
985-01040-08-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01040-08-00 |
— | ||
| replacement | |||||
|
6
|
6
98580-04008-00 Screw, Pan Head (713)．スクリユ，パンヘツド; |
98580-04008-00 |
from US $1.21 |
||
|
7
|
7
929-01041-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01041-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-04100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-04100-00 |
from US $1.21 |
||
|
8
|
8
98501-05010-00 Screw, Pan Head．スクリユ，パンヘツド; |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
8
|
8
97885-05010-00 Screw, Pan Head．スクリユ，パンヘツド; |
97885-05010-00 |
from US $1.01 |
||
|
9
|
9
929-01051-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-01051-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
953-01056-00-00
Nut
．ナツト; |
953-01056-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95380-05600-00 Nut．ナツト; |
95380-05600-00 |
from US $1.42 |
||
|
11
|
11
2F9-84331-00-00 Screw, Lens Fitting．スクリユ，リムアジヤステイング; |
2F9-84331-00-00 |
from US $4.25 |
||
| replacement | |||||
|
11
|
11
98580-04055-00 Screw, Lens Fitting．スクリユ，リムアジヤステイング; |
98580-04055-00 |
from US $4.25 |
||
|
12
|
12
341-84332-60-00 Spring．スプリング，スクリユ; |
341-84332-60-00 |
from US $3.12 |
||
|
13
|
13
198-84334-60-00 Nut, Adjusting．ナツト，アジヤステイング; |
198-84334-60-00 |
from US $3.12 |
||
|
14
|
14
2F9-84375-00-00 Setting Plate, Bulb．フイツテイングプレート，バルブ; |
2F9-84375-00-00 |
from US $18.42 |
||
|
15
|
15
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr．カバー，ソケツト; |
2F9-84397-01-00 |
from US $15.87 |
||
|
16
|
16
457-84397-01-00
Cover, Socket
．ソケツト，パイロツトライト; |
457-84397-01-00 |
— | ||
|
17
|
17
123-83516-21-00 Bulb (12V3.4W)．バルブ ; １２Ｖ−３．４Ｗ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
17
|
17
123-83516-21-XX Bulb (12V-3.4W)．バルブ ; １２Ｖ−３．４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
19
|
19
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
20
|
20
2J2-84330-60-93 Body Assyボデーアセンブリ; クロムメツキ |
2J2-84330-60-93 |
from US $102.79 |
||
| replacement | |||||
|
20
|
20
1JK-84330-00-93 Body Assemblyボデーアセンブリ; クロムメツキ |
1JK-84330-00-93 |
from US $123.10 |
||
|
21
|
21
584-84338-60-00 Collar, Body Ftng．カラー，ボデーフイツテイング; |
584-84338-60-00 |
from US $7.79 |
||
|
22
|
22
584-84345-60-00 Damper, Headlight．ダンパ，ヘツドライト; |
584-84345-60-00 |
from US $10.71 |
||
|
23
|
23
214-84153-60-00 Grommet, Wire Harness．グロメツト，ワイヤハーネス; |
214-84153-60-00 |
from US $3.12 |
||
|
24
|
24
90105-08091-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-08091-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
958-14080-40-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
958-14080-40-00 |
from US $1.56 |
||
|
25
|
25
2J2-84318-00-00 Stay, Headlight 1ステー，ヘツドライト １; |
2J2-84318-00-00 |
from US $13.52 |
||
|
26
|
26
90480-14052-00 Grommet |
90480-14052-00 |
from US $1.35 |
||
|
27
|
27
903-87062-16-00
Collar
カラー; |
903-87062-16-00 |
— | ||
| replacement | |||||
|
27
|
27
90387-060A3-00 Collar (3H5)カラー; |
90387-060A3-00 |
from US $1.70 |
||
|
28
|
28
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
28
|
28
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
29
|
29
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
29
|
29
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
30
|
30
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
30
|
30
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
|
31
|
31
90201-06067-00 Washer, Plateワツシヤ，プレート; |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
31
|
31
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
32
|
32
92501-06012-00 Screw, Pan Head |
92501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
32
|
32
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
33
|
33
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
33
|
33
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.99 |
||
