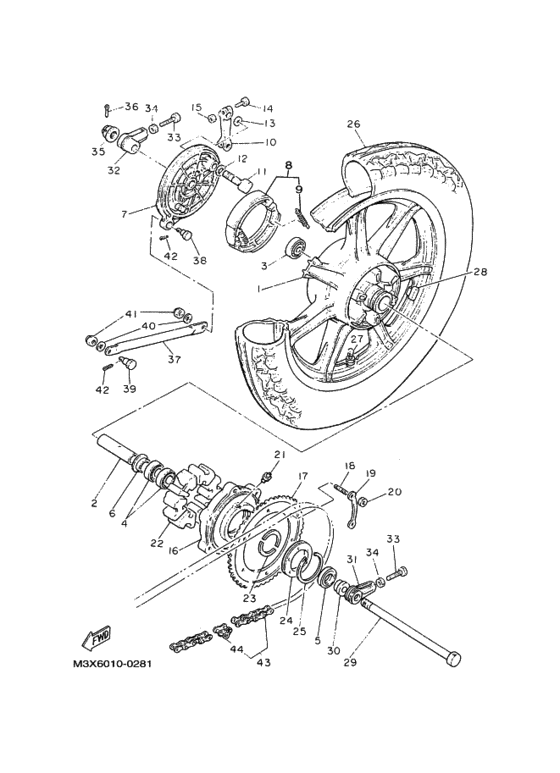

Rear wheel (ｷﾔｽﾄﾎｲｰﾙｼﾔｾﾝﾖｳ) Diagram Yamaha SR400
- Year
- 1983
- Colour
- Super Red (SUR; 002U)
- Model code
- 34E
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X4-25338-00-98
Cast Wheel, Rear
キヤストホイール，リヤ; ツヤケシブラツク |
3X4-25338-00-98 |
— | ||
|
2
|
2
275-25317-00-00 Spacerスペーサ，ベアリング; |
275-25317-00-00 |
from US $24.65 |
||
| replacement | |||||
|
2
|
2
90560-17311-00 Spacerスペーサ，ベアリング; |
90560-17311-00 |
from US $24.65 |
||
|
3
|
3
93306-20319-00
Bearing
ＵＲ |
93306-20319-00 |
— | ||
| replacement | |||||
|
3
|
3
93306-20320-00
Bearing
ＵＲ |
93306-20320-00 |
— | ||
|
3
|
3
93306-20320-00
Bearing
ベアリング ; Ｂ６２０３ＺＺ; ＵＲ |
93306-20320-00 |
— | ||
|
4
|
4
93306-20310-00 Bearingベアリング ; Ｂ６２０３ＲＳ |
93306-20310-00 |
from US $15.30 |
||
|
5
|
5
93102-25061-00 Oil Seal, Sd-Typeオイルシール; |
93102-25061-00 |
from US $3.32 |
||
|
6
|
6
152-25115-00-00 Flange, Spacerフランジ，スペーサ １; |
152-25115-00-00 |
from US $3.40 |
||
| replacement | |||||
|
6
|
6
146-25315-00-00 Flange, Spacerフランジ，スペーサ １; |
146-25315-00-00 |
from US $3.40 |
||
|
7
|
7
1E6-25321-01-38 Plate, Brake Shoeプレート，ブレーキシユー; クリヤ （バフアリ） |
1E6-25321-01-38 |
US $215.53 |
||
|
8
|
8
3GW-W253A-00-00 Brake Shoe Kitプレーキシユーコンプリート; |
3GW-W253A-00-00 |
from US $32.44 |
||
|
9
|
9
90507-20002-00 Spring, Tension 2462533300．スプリング，テンシヨン; |
90507-20002-00 |
from US $2 |
||
|
10
|
10
2J4-25355-00-00 Lever, Camshaftレバー，カムシヤフト; |
2J4-25355-00-00 |
from US $36.92 |
||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
レバー，カムシヤフト; |
999-99999-99-00 |
— | ||
|
11
|
11
278-25351-00-00 Camshaft |
278-25351-00-00 |
from US $36 |
||
| replacement | |||||
|
11
|
11
4L0-25351-00-00 Camshaft |
4L0-25351-00-00 |
from US $29.38 |
||
|
12
|
12
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
13
|
13
148-25359-00-00 Seal, Camshaftシール，カムシヤフト; |
148-25359-00-00 |
from US $2.69 |
||
|
14
|
14
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
15
|
15
95301-06700-00 Nut |
95301-06700-00 |
from US $1.43 |
||
| replacements | |||||
|
15
|
15
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
15
|
15
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
16
|
16
1E6-25366-00-39
Clutch, Hub
クリヤ （バフナシ） |
1E6-25366-00-39 |
— | ||
| replacement | |||||
|
16
|
16
1E6-25366-00-98
Clutch, Hub
クリヤ （バフナシ） |
1E6-25366-00-98 |
— | ||
|
17
|
17
2H6-25447-20-00
Sprocket, Driven (47T)
スプロケツト，ドリブン ; ４７Ｔ |
2H6-25447-20-00 |
— | ||
|
18
|
18
90116-08218-00 Bolt, Stud |
90116-08218-00 |
from US $1.84 |
||
|
19
|
19
583-25412-00-00 Washerワツシヤ ; １２Ｔ |
583-25412-00-00 |
from US $5.24 |
||
| replacement | |||||
|
19
|
19
2XJ-25412-00-00 Washerワツシヤ ; １２Ｔ |
2XJ-25412-00-00 |
from US $5.24 |
||
|
20
|
20
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
21
|
21
937-00060-04-00
Nipple, Grease
ニツプル，グリース; |
937-00060-04-00 |
— | ||
| replacement | |||||
|
21
|
21
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.66 |
||
|
22
|
22
2J2-25364-00-00 Damper |
2J2-25364-00-00 |
from US $15.58 |
||
|
23
|
23
1E6-25318-00-00 Stopper, Hub |
1E6-25318-00-00 |
from US $6.39 |
||
| replacement | |||||
|
23
|
23
1E6-25318-01-00 Stopper, Hub |
1E6-25318-01-00 |
from US $9.36 |
||
|
24
|
24
1E6-25319-01-00 Seal, Hub Dustシール，ハブダスト; |
1E6-25319-01-00 |
from US $15.87 |
||
|
25
|
25
93450-78080-00 Circlip, Innerサークリツプ; |
93450-78080-00 |
from US $7.23 |
||
|
26
|
26
94140-18574-00
Tire (4.00-18)
タイヤ ; ４．００−１８; ＵＲ ヨコハマ |
94140-18574-00 |
— | ||
|
26
|
26
94140-18580-00
Tire (4.00-18)
タイヤ ; ４．００−１８; ＵＲ ブリジストン |
94140-18580-00 |
— | ||
|
27
|
27
93900-00001-00 Valve, RimＵＲ ブリジストン |
93900-00001-00 |
from US $12.75 |
||
| replacement | |||||
|
27
|
27
93900-00031-00 Valve, RimＵＲ ブリジストン |
93900-00031-00 |
from US $12.75 |
||
|
27
|
27
93900-00002-00 Valve, RimＵＲ ヨコハマ |
93900-00002-00 |
from US $12.75 |
||
| replacement | |||||
|
27
|
27
93900-00031-00 Valve, RimＵＲ ヨコハマ |
93900-00031-00 |
from US $12.75 |
||
|
28
|
28
1A1-25398-01-00 Balancer, Wheel (10G)バランサ，ホイール ; ２０Ｇ; ＵＮ |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
28
|
28
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイール ; ２０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $7.65 |
||
|
28
|
28
1A1-25399-00-00 Balancer, Wheel (10G)バランサ，ホイール ; １０Ｇ; ＵＮ |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
28
|
28
5MT-25398-00-00 Balancer, Wheel (10G)バランサ，ホイール ; １０Ｇ; ＵＮ |
5MT-25398-00-00 |
from US $7.65 |
||
|
28
|
28
2M9-25399-00-00 Balancer, Wheelバランサ，ホイール; ＵＮ |
2M9-25399-00-00 |
US $7.65 |
||
|
29
|
29
150-25381-00-00 Axle,wheelアクスル，ホイール; |
150-25381-00-00 |
US $58.36 |
||
| replacement | |||||
|
29
|
29
150-25381-01-00 Axle, Wheelアクスル，ホイール; |
150-25381-01-00 |
US $57.15 |
||
|
30
|
30
90387-17530-00 Collarカラー; |
90387-17530-00 |
from US $8.93 |
||
|
31
|
31
2J2-25389-00-00 Puller, Chain 2プラー，チエン ２; |
2J2-25389-00-00 |
from US $14.88 |
||
| replacement | |||||
|
31
|
31
48U-25388-00-00 Puller, Chain 1プラー，チエン ２; |
48U-25388-00-00 |
from US $14.88 |
||
|
32
|
32
3H0-25389-00-00 Puller, Chain 2プラー，チエン ２; |
3H0-25389-00-00 |
US $20.54 |
||
| replacement | |||||
|
32
|
32
48U-25389-01-00 Puller, Chain 2プラー，チエン ２; |
48U-25389-01-00 |
from US $20.54 |
||
|
33
|
33
90101-08034-00 Bolt |
90101-08034-00 |
from US $3.42 |
||
| replacements | |||||
|
33
|
33
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
33
|
33
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.66 |
||
|
34
|
34
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
34
|
34
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
35
|
35
90171-16024-00 Nut, Castle |
90171-16024-00 |
from US $16.01 |
||
|
36
|
36
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
36
|
36
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
37
|
37
3H0-25371-00-00 Bar, Tensionバー，テンシヨン; |
3H0-25371-00-00 |
from US $31.03 |
||
|
38
|
38
90109-08406-00 Bolt |
90109-08406-00 |
from US $9.92 |
||
|
39
|
39
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
40
|
40
929-01082-00-00
Washer, Plain
ワツシヤ，プレーン; |
929-01082-00-00 |
— | ||
| replacements | |||||
|
40
|
40
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.07 |
||
|
40
|
40
92907-08200-00 Washerワツシヤ，プレーン; |
92907-08200-00 |
from US $1.56 |
||
|
41
|
41
90185-08055-00 Nut, Self-Locking |
90185-08055-00 |
from US $1.35 |
||
| replacement | |||||
|
41
|
41
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
42
|
42
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
42
|
42
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
42
|
42
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
43
|
43
94580-53106-00
Chain (D.i.d.50Hdl-106L)
チエーン; |
94580-53106-00 |
— | ||
| replacement | |||||
|
43
|
43
945-81271-06-00
Chain(34F)
チエーン; |
945-81271-06-00 |
— | ||
|
44
|
44
94680-53031-00
Joint, Chain (D.i.d. 50Hdl.2)
．ジヨイント，チエン; |
94680-53031-00 |
— | ||
| replacement | |||||
|
44
|
44
946-81270-31-00
Joint, Chain(34F)
．ジヨイント，チエン; |
946-81270-31-00 |
— | ||
