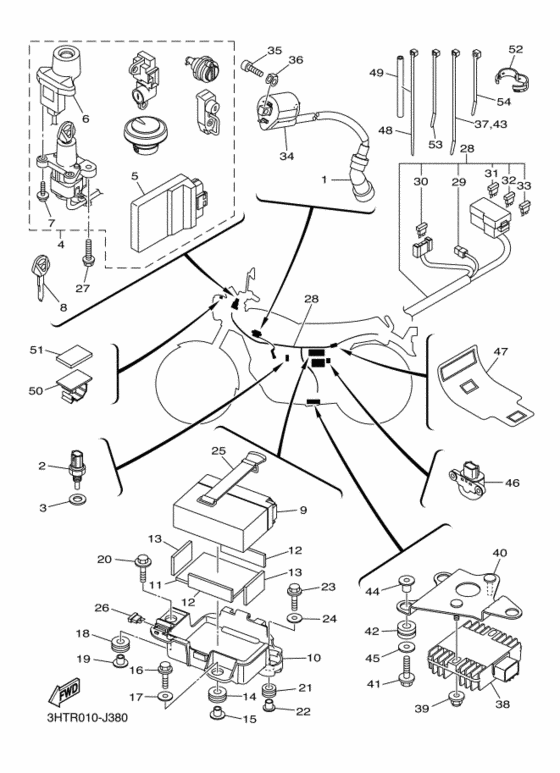

Electrical 1 Diagram Yamaha SR400
- Year
- 2010
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3HTR
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
| replacement | |||||
|
1
|
1
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $23.82 |
||
|
2
|
2
4P9-83591-00-00
Thermo Unit
サーモユニツト; |
4P9-83591-00-00 |
— | ||
| replacements | |||||
|
2
|
2
54P-H3591-00-00 Thermo Unitサーモユニツト; |
54P-H3591-00-00 |
from US $20.12 |
||
|
2
|
2
52B-H3591-00-00 Thermo Unitサーモユニツト; |
52B-H3591-00-00 |
from US $19.18 |
||
|
3
|
3
90201-10128-00 Washer Plate 341839090000ワツシヤ，プレート; |
90201-10128-00 |
from US $1.56 |
||
|
4
|
4
3HT-W8250-10-00 Main Sw. Immobilizer Kit |
3HT-W8250-10-00 |
US $1,590.60 |
||
|
5
|
5
3HT-8591A-00-00 Engine Control Unit Assy．エンジンコントロールユニツトアセンブリ; |
3HT-8591A-00-00 |
US $819.72 |
||
|
6
|
6
5UX-8255P-00-00 Immobilizer. Unit Comp．イモビライザーユニツトコンプリート; |
5UX-8255P-00-00 |
US $353.69 |
||
|
7
|
7
5SL-82113-01-00 Screw．スクリユ; |
5SL-82113-01-00 |
from US $1.56 |
||
|
8
|
8
5SL-82511-08-00 Blank KeyＡＰ |
5SL-82511-08-00 |
from US $19.84 |
||
|
9
|
9
90793-25007-00
Battery Assy(Gt4B-5 12V-2.5Ah)
バツテリアセンブリ ; ＧＴ４Ｂ−５ １２Ｖ−２．５ＡＨ; ＧＳ |
90793-25007-00 |
— | ||
| replacements | |||||
|
9
|
9
GT4-B5000-00-00
Battery
バツテリアセンブリ ; ＧＴ４Ｂ−５ １２Ｖ−２．５ＡＨ; ＧＳ |
GT4-B5000-00-00 |
— | ||
|
9
|
9
4JS-82100-00-00
Battery Assy
バツテリアセンブリ ; ＧＴ４Ｂ−５ １２Ｖ−２．５ＡＨ; ＧＳ |
4JS-82100-00-00 |
— | ||
|
10
|
10
3HT-8212B-00-00 Box, Battery 1ボツクス，バツテリー １; |
3HT-8212B-00-00 |
from US $25.60 |
||
|
11
|
11
905-20040-05-00 Damper, Plateダンパ，プレート; |
905-20040-05-00 |
from US $3.40 |
||
|
12
|
12
7NJ-14757-00-00 Damper, Muffler 2ダンパ，マフラー ２; |
7NJ-14757-00-00 |
from US $1.84 |
||
|
13
|
13
5TG-84553-00-00 Damper |
5TG-84553-00-00 |
from US $1.42 |
||
|
14
|
14
90480-16004-00 Grommet |
90480-16004-00 |
from US $1.40 |
||
|
15
|
15
90387-067K8-00 Collarカラー; |
90387-067K8-00 |
from US $2.69 |
||
|
16
|
16
90105-06169-00 Bolt, Flange |
90105-06169-00 |
from US $1.70 |
||
|
17
|
17
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
18
|
18
90480-16004-00 Grommet |
90480-16004-00 |
from US $1.40 |
||
|
19
|
19
90387-067K8-00 Collarカラー; |
90387-067K8-00 |
from US $2.69 |
||
|
20
|
20
90119-06138-00 Bolt, With Washer |
90119-06138-00 |
from US $1.98 |
||
|
21
|
21
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
22
|
22
90387-085W0-00 Collarカラー; |
90387-085W0-00 |
from US $4.68 |
||
|
23
|
23
90105-06169-00 Bolt, Flange |
90105-06169-00 |
from US $1.70 |
||
|
24
|
24
90201-06380-00 Washer Plainワツシヤ，プレート; |
90201-06380-00 |
from US $0.86 |
||
|
25
|
25
7H3-82131-00-00 Band, Batteryバンド，バツテリ; |
7H3-82131-00-00 |
from US $4.64 |
||
|
26
|
26
1AE-82151-00-00 Fuse (30A-Bl)フユーズ ; ３０Ａ−ＢＬ |
1AE-82151-00-00 |
from US $1.66 |
||
|
27
|
27
901-09080-G5-00
Bolt
ボルト; |
901-09080-G5-00 |
— | ||
| replacement | |||||
|
27
|
27
901-09081-96-00 Boltボルト; |
901-09081-96-00 |
from US $1.70 |
||
|
28
|
28
3HT-82590-20-00 Wire Harness Assyワイヤハーネスアセンブリ; |
3HT-82590-20-00 |
US $558.36 |
||
|
29
|
29
3XV-81980-00-00 Diode Assy．ダイオード アセンブリ; |
3XV-81980-00-00 |
from US $15.02 |
||
|
30
|
30
1AE-82151-00-00 Fuse (30A-Bl)．フユーズ ; ３０Ａ−ＢＬ |
1AE-82151-00-00 |
from US $1.66 |
||
|
31
|
31
5JJ-82151-10-00 Fuse (15A-Bl)．フユーズ ; １５Ａ−ＢＬ |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
31
|
31
67F-82151-50-00 Fuse (15A)．フユーズ ; １５Ａ−ＢＬ |
67F-82151-50-00 |
from US $1.98 |
||
|
32
|
32
5JJ-82151-30-00
Fuse (10A-Bl)
．フユーズ ; １０Ａ−ＢＬ |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
32
|
32
67F-82151-40-00 Fuse (10A)．フユーズ ; １０Ａ−ＢＬ |
67F-82151-40-00 |
from US $1.98 |
||
|
33
|
33
5JJ-82151-00-00 Fuse (7.5A-Bl)．フユーズ ; ７．５Ａ−ＢＬ |
5JJ-82151-00-00 |
from US $2.98 |
||
|
34
|
34
3D8-82310-10-00 Ignition Coil Assy |
3D8-82310-10-00 |
from US $53.47 |
||
| replacement | |||||
|
34
|
34
3D8-82310-11-00 |
3D8-82310-11-00 |
US $60.88 |
||
|
35
|
35
91380-06020-00 Bolt, Hexagon Socket Headボルト; |
91380-06020-00 |
from US $4.53 |
||
| replacement | |||||
|
35
|
35
90110-06114-00 Bolt, Hexagon Socket Headボルト; |
90110-06114-00 |
from US $2.66 |
||
|
36
|
36
4BR-82317-00-00 Damper, Ignition Coil |
4BR-82317-00-00 |
from US $4.11 |
||
|
37
|
37
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
38
|
38
4XY-81960-00-00 Rectifier & Regulator Assyレクチフアイヤアンドレギユレータアセンブリ; |
4XY-81960-00-00 |
from US $93.90 |
||
|
39
|
39
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
39
|
39
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
40
|
40
3HT-8711E-10-00 Stay, Rectifier |
3HT-8711E-10-00 |
from US $14.29 |
||
|
41
|
41
95827-06025-00 Bolt, Flangeボルト，フランジ; |
95827-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
41
|
41
958-17060-25-00
Bolt, Flange
ボルト，フランジ; |
958-17060-25-00 |
— | ||
|
41
|
41
95822-06025-00 Bolt, Flangeボルト，フランジ; |
95822-06025-00 |
from US $0.99 |
||
|
42
|
42
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.66 |
||
|
43
|
43
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
44
|
44
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.56 |
||
|
45
|
45
90201-06063-00 Washer, Plateワツシヤ，プレート; |
90201-06063-00 |
from US $1.70 |
||
| replacement | |||||
|
45
|
45
90201-06095-00 Washer, Plateワツシヤ，プレート; |
90201-06095-00 |
from US $1.70 |
||
|
46
|
46
3HT-82576-00-00 Sensor, Lean Angle |
3HT-82576-00-00 |
from US $63.69 |
||
|
47
|
47
2D1-82589-00-00 Protecter, Wire Harnessプロテクタ，ワイヤハーネス; |
2D1-82589-00-00 |
US $11.05 |
||
|
48
|
48
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
48
|
48
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
49
|
49
904-45070-36-00
Hose (L200)
ホース ; Ｌ１３０ |
904-45070-36-00 |
— | ||
| replacements | |||||
|
49
|
49
904-45072-G8-00 Hose (L310)ホース ; Ｌ１３０ |
904-45072-G8-00 |
from US $10.91 |
||
|
49
|
49
90445-07176-00 Hose (L200)ホース ; Ｌ１３０ |
90445-07176-00 |
from US $1.82 |
||
|
50
|
50
904-64170-02-00 Clamp |
904-64170-02-00 |
from US $3.68 |
||
|
51
|
51
5S7-28428-00-00 Seal 1 |
5S7-28428-00-00 |
from US $2.41 |
||
|
52
|
52
90464-16001-00 Clamp |
90464-16001-00 |
from US $1.84 |
||
|
53
|
53
90464-35132-00 Clamp |
90464-35132-00 |
from US $1.42 |
||
|
54
|
54
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
| replacement | |||||
|
54
|
54
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
