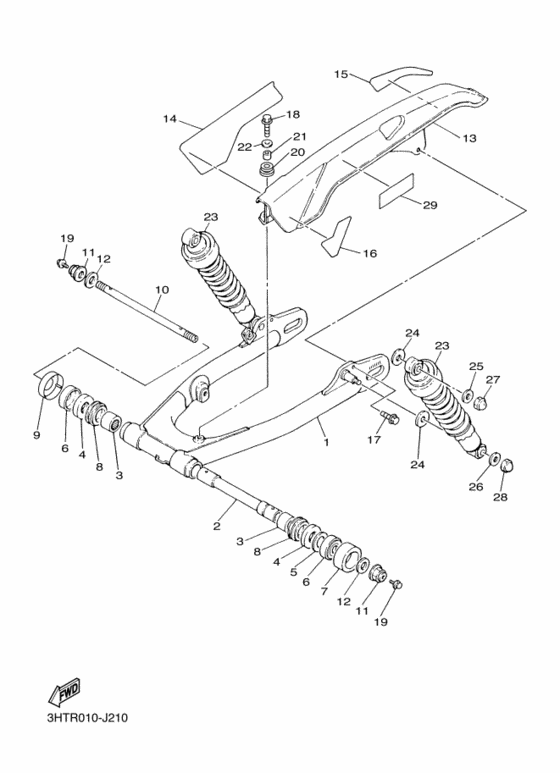

ﾘﾔｱ-ﾑ Diagram Yamaha SR400
- Year
- 2012
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3HTU
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3H0-22110-01-00 Rear Armヤマハブラック |
3H0-22110-01-00 |
from US $270.22 |
||
|
2
|
2
33Y-22124-00-00 Bush 2 |
33Y-22124-00-00 |
from US $56.09 |
||
|
3
|
3
93317-22208-00 Bearing, Cylinder.#17 |
93317-22208-00 |
from US $24.09 |
||
|
4
|
4
93342-22205-00 Bearing, Flat #42 |
93342-22205-00 |
from US $61.62 |
||
|
5
|
5
90201-22284-00 Washer, Plate |
90201-22284-00 |
US $3.54 |
||
| replacements | |||||
|
5
|
5
648-45533-00-03 Shim |
648-45533-00-03 |
from US $3.97 |
||
|
5
|
5
902-01222-84-04 Washer, Plate |
902-01222-84-04 |
US $3.82 |
||
|
6
|
6
2K8-22129-00-00 Cover, Thrust 2 |
2K8-22129-00-00 |
from US $17.14 |
||
|
7
|
7
431-22151-03-00 Seal, Guard |
431-22151-03-00 |
from US $19.41 |
||
|
8
|
8
93108-35004-00 Oil Seal (35-41-8)オイルシ−ル ; ３５−４１−８ |
93108-35004-00 |
from US $7.37 |
||
|
9
|
9
3HT-22156-10-00 Washer, PlateＵＮ |
3HT-22156-10-00 |
from US $30.32 |
||
|
10
|
10
33Y-22141-01-00 Shaft, Pivot |
33Y-22141-01-00 |
from US $80.27 |
||
|
11
|
11
95604-16100-00 Nut, Uナツト，Ｕ; |
95604-16100-00 |
from US $7.51 |
||
|
12
|
12
90201-164H4-00 Washer, Plate(33Y) |
90201-164H4-00 |
from US $1.70 |
||
|
13
|
13
2J2-22311-01-00 Case, Chain |
2J2-22311-01-00 |
from US $113.27 |
||
|
14
|
14
3HT-2214F-00-00 Damper 1 |
3HT-2214F-00-00 |
from US $8.78 |
||
|
15
|
15
3HT-2214G-00-00 Damper 2 |
3HT-2214G-00-00 |
from US $3.62 |
||
|
16
|
16
3HT-22358-00-00 Seal 1 |
3HT-22358-00-00 |
from US $13.74 |
||
|
17
|
17
95807-06014-00 Bolt, Flange |
95807-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
18
|
18
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
18
|
18
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
19
|
19
95024-06010-00 Bolt, Flange (Small Head)ボルト，フランジ; スモールヘツド |
95024-06010-00 |
from US $1.56 |
||
|
20
|
20
90480-13197-00 Grommet |
90480-13197-00 |
from US $2.27 |
||
| replacement | |||||
|
20
|
20
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
21
|
21
90387-060A3-00 Collar (3H5) |
90387-060A3-00 |
from US $1.70 |
||
|
22
|
22
90201-06008-00 Washer, Plate |
90201-06008-00 |
US $2.27 |
||
| replacement | |||||
|
22
|
22
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
23
|
23
1JN-22210-20-00 Shock Absorber Assy, Rear（＊１） |
1JN-22210-20-00 |
from US $243.83 |
||
|
24
|
24
90201-14215-00 Washer, Plate |
90201-14215-00 |
from US $1.56 |
||
|
25
|
25
90201-10696-00 Washer, Plate |
90201-10696-00 |
from US $3.26 |
||
|
26
|
26
90201-105R9-00 Washer, Plateワツシヤ，プレ−ト; |
90201-105R9-00 |
from US $1.70 |
||
|
27
|
27
90176-10009-00 Nut, Cap (371)ナツト，キヤツプ; |
90176-10009-00 |
from US $1.56 |
||
|
28
|
28
90176-10073-00 Nut, Crown |
90176-10073-00 |
from US $1.66 |
||
| replacement | |||||
|
28
|
28
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.56 |
||
|
29
|
29
3HT-2218G-01-00 Label, Tire |
3HT-2218G-01-00 |
US $1.98 |
||
