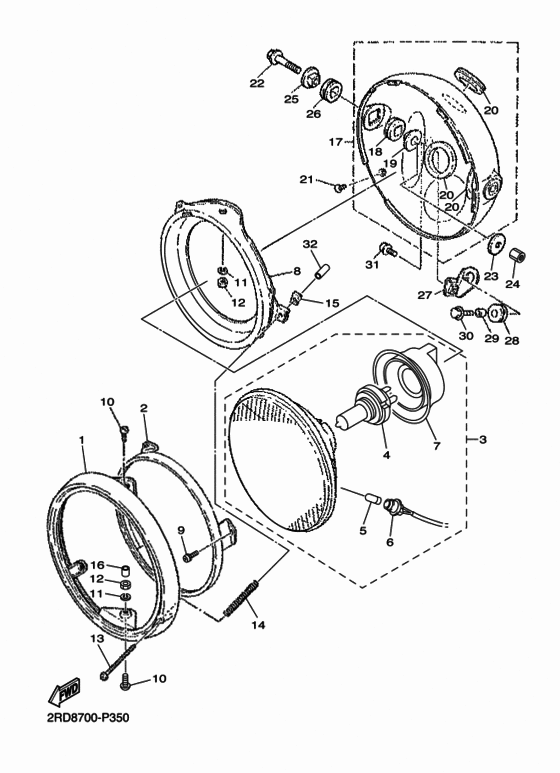

Headlight Diagram Yamaha SR400
- Year
- 2016
- Colour
- Light Reddish Yellow Solid 1
- Model code
- 2RDB
- Sales region
- Europe (050)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
341-84315-40-00 Rim, Headlight |
341-84315-40-00 |
from US $34.72 |
||
|
2
|
2
2F9-84395-00-00 Ring, Retaining |
2F9-84395-00-00 |
from US $46.28 |
||
|
3
|
3
4KE-84320-00-00 Lens Assy |
4KE-84320-00-00 |
US $254.21 |
||
|
3
|
3
4KE-84320-10-00
Lens Assy
CYP,GBR,IRL,ZAF |
4KE-84320-10-00 |
— | ||
|
4
|
4
2F9-84314-00-00 Bulb (12V 60/55W Halogen)(H4)HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
4
|
4
5V2-84314-00-XX
Bulb (12V-60/55W)
(H4)HALOGEN |
5V2-84314-00-XX |
— | ||
|
4
|
4
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
(H4)HALOGEN |
YMC-00903-00-00 |
— | ||
|
4
|
4
5VK-H4314-00-00 Bulb, Headlight(H4)HALOGEN |
5VK-H4314-00-00 |
US $42.42 |
||
|
4
|
4
8V0-84314-10-00 Bulb, Headlight(H4)HALOGEN |
8V0-84314-10-00 |
from US $42.42 |
||
|
5
|
5
169-84347-10-00 Bulb (12V-4W) |
169-84347-10-00 |
US $4.82 |
||
| replacement | |||||
|
5
|
5
4E2-84347-00-00 Bulb (12V-4W) |
4E2-84347-00-00 |
US $4.82 |
||
|
6
|
6
306-84346-30-00 Socket, Pilot Light |
306-84346-30-00 |
US $21.11 |
||
| replacement | |||||
|
6
|
6
52E-84346-00-00 Socket, Pilot Light |
52E-84346-00-00 |
US $21.11 |
||
|
7
|
7
3SX-84397-00-00 Cover, Socket |
3SX-84397-00-00 |
from US $21.25 |
||
|
8
|
8
2F9-84394-00-00 Ring, Mounting |
2F9-84394-00-00 |
from US $27.58 |
||
|
9
|
9
97602-04108-00 Screw, Pan Head W/w |
97602-04108-00 |
from US $1.98 |
||
| replacements | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
97607-04108-00 Screw, Pan Head W/w |
97607-04108-00 |
from US $1.98 |
||
|
10
|
10
1JK-84365-09-00 Screw |
1JK-84365-09-00 |
from US $4.68 |
||
|
11
|
11
92902-05100-00 Washer, Spring |
92902-05100-00 |
US $1.21 |
||
| replacement | |||||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
95302-04600-00 Nut |
95302-04600-00 |
US $1.70 |
||
| replacement | |||||
|
12
|
12
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
13
|
13
2F9-84331-00-00 Screw, Lens Fitting |
2F9-84331-00-00 |
from US $4.25 |
||
| replacement | |||||
|
13
|
13
98580-04055-00 Screw, Lens Fitting |
98580-04055-00 |
from US $4.25 |
||
|
14
|
14
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
15
|
15
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.12 |
||
|
16
|
16
2RR-84178-00-00 Plug |
2RR-84178-00-00 |
from US $2.13 |
||
|
17
|
17
2J2-84330-60-93 Body AssyCM |
2J2-84330-60-93 |
from US $102.79 |
||
| replacement | |||||
|
17
|
17
1JK-84330-00-93 Body AssemblyCM |
1JK-84330-00-93 |
from US $123.10 |
||
|
18
|
18
584-84345-60-00 Damper, Headlight |
584-84345-60-00 |
from US $10.71 |
||
|
19
|
19
584-84338-60-00 Collar, Body Ftng |
584-84338-60-00 |
from US $7.79 |
||
|
20
|
20
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $3.12 |
||
|
21
|
21
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
22
|
22
901-05082-44-00 Bolt, Flange |
901-05082-44-00 |
US $1.56 |
||
| replacement | |||||
|
22
|
22
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.56 |
||
|
23
|
23
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
23
|
23
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
24
|
24
901-70080-09-00 Nut |
901-70080-09-00 |
from US $7.23 |
||
|
25
|
25
341-83316-01-00 Collar, Flasher |
341-83316-01-00 |
from US $11.33 |
||
| replacement | |||||
|
25
|
25
341-83316-02-00 COLLAR, FLASHER 1 |
341-83316-02-00 |
from US $9.52 |
||
|
26
|
26
341-83321-01-00 Damper, Flasher 1 |
341-83321-01-00 |
from US $2.69 |
||
|
27
|
27
3HT-84318-00-00 Stay, Headlight 1 |
3HT-84318-00-00 |
from US $6.39 |
||
|
28
|
28
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.66 |
||
|
29
|
29
90387-0714B-00 Collar |
90387-0714B-00 |
from US $1.98 |
||
| replacement | |||||
|
29
|
29
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
30
|
30
90119-06038-00 Bolt, With Washer |
90119-06038-00 |
from US $1.56 |
||
|
31
|
31
90159-06160-00 Screw, With Washer |
90159-06160-00 |
from US $1.70 |
||
|
32
|
32
3HT-84385-00-00 Cap, 1 |
3HT-84385-00-00 |
from US $1.42 |
||
