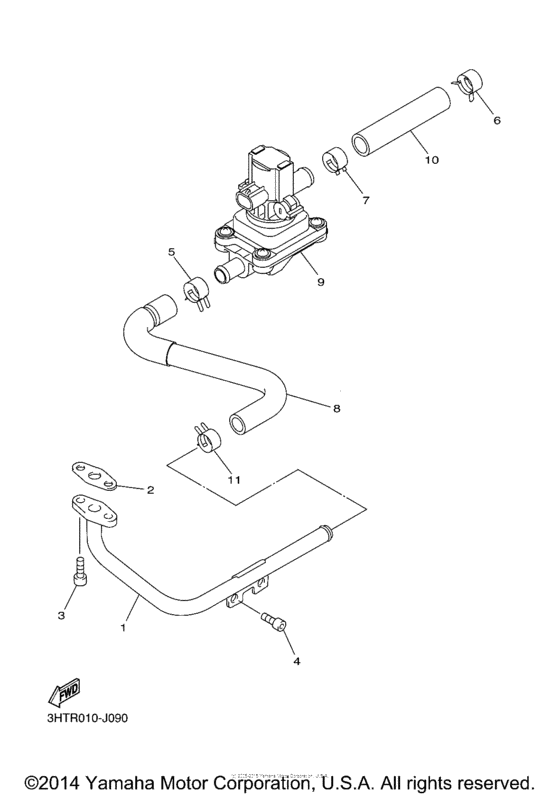

Air induction system Diagram Yamaha SR400
- Year
- 2015
- Model code
- 2RD3
- Sales region
- USA
- Базовая модель
- SR400FCGY
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HT-14871-00-00 Pipe 1 |
3HT-14871-00-00 |
from US $101.75 |
||
|
2
|
2
3HT-14815-00-00 Gasket |
3HT-14815-00-00 |
from US $2.81 |
||
|
3
|
3
91380-06016-00 Bolt |
91380-06016-00 |
from US $1.42 |
||
|
4
|
4
91314-06012-00 Bolt, Hexagon Socket Head |
91314-06012-00 |
from US $1.21 |
||
|
5
|
5
904-68081-04-00 Clip |
904-68081-04-00 |
from US $1.81 |
||
|
6
|
6
90467-16009-00 Clip |
90467-16009-00 |
from US $1.90 |
||
|
7
|
7
90467-160A1-00 Clip |
90467-160A1-00 |
from US $1.98 |
||
|
8
|
8
3HT-14881-R0-00 Hose, Bend 1 |
3HT-14881-R0-00 |
from US $121.58 |
||
|
9
|
9
3HT-14803-R0-00 Air Induction System Assy |
3HT-14803-R0-00 |
from US $180.81 |
||
|
10
|
10
3HT-14882-R0-00 Hose, Bend 2 |
3HT-14882-R0-00 |
from US $3.68 |
||
|
11
|
11
90467-140A5-00 Clip |
90467-140A5-00 |
from US $1.40 |
