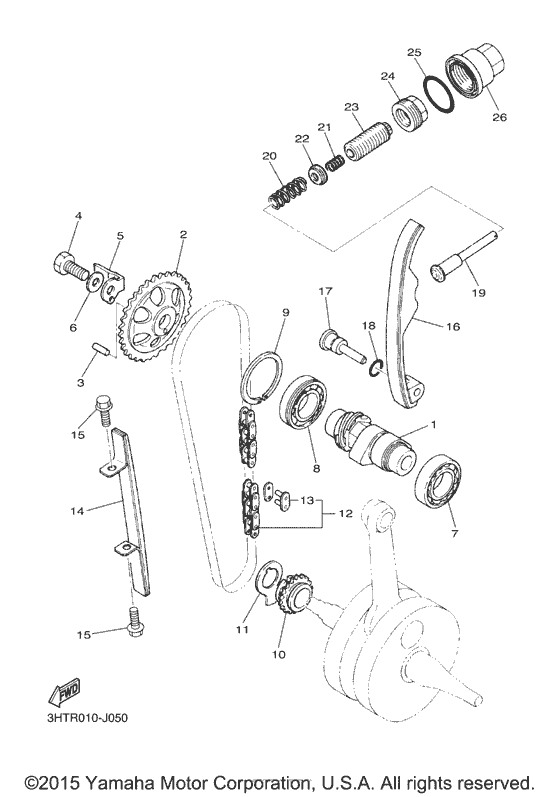

Camshaft & chain Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5F0-12171-01-00
Camshaft 1
|
5F0-12171-01-00 |
— | ||
| replacement | |||||
|
1
|
1
5F0-12171-02-00 Camshaft 1 |
5F0-12171-02-00 |
from US $160.16 |
||
|
2
|
2
583-12176-00-00 Sprocket, Cam Chain |
583-12176-00-00 |
from US $62.31 |
||
|
3
|
3
93604-16092-00 Pin, Dowel |
93604-16092-00 |
from US $1.56 |
||
|
4
|
4
90101-10303-00 Bolt |
90101-10303-00 |
from US $3.40 |
||
|
5
|
5
3HT-12279-00-00 Plate |
3HT-12279-00-00 |
from US $13.21 |
||
|
6
|
6
90201-10591-00 Washer, Plate |
90201-10591-00 |
from US $1.35 |
||
| replacement | |||||
|
6
|
6
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
|
7
|
7
93306-00518-00 Bearing(1Kj) |
93306-00518-00 |
from US $14.88 |
||
| replacement | |||||
|
7
|
7
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.88 |
||
|
8
|
8
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.88 |
||
|
9
|
9
93440-47044-00 Circlip, Outer |
93440-47044-00 |
from US $7.37 |
||
|
10
|
10
583-11549-00-00 Sprocket, Cam Chain |
583-11549-00-00 |
from US $50.11 |
||
|
11
|
11
583-11533-00-00 Plate, Absorber |
583-11533-00-00 |
from US $4.39 |
||
|
12
|
12
94500-02106-00 ChainTSUBAKIMOTO |
94500-02106-00 |
from US $35.78 |
||
|
13
|
13
94600-02001-00 Joint, Chain (Bf05M)TSUBAKIMOTO |
94600-02001-00 |
from US $2.98 |
||
|
14
|
14
583-12231-00-00
Guide, Stopper 1
|
583-12231-00-00 |
— | ||
| replacement | |||||
|
14
|
14
583-12231-01-00
Guide, Stopper 1
|
583-12231-01-00 |
— | ||
|
15
|
15
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.56 |
||
|
16
|
16
341-12241-03-00 Guide, Stopper 2 |
341-12241-03-00 |
from US $73.09 |
||
|
17
|
17
583-12247-00-00 Shaft, Tensioner |
583-12247-00-00 |
from US $10.91 |
||
|
18
|
18
93210-12152-00 O-Ring |
93210-12152-00 |
from US $1.70 |
||
|
19
|
19
583-12217-00-00 Rod, Chn Tensioner |
583-12217-00-00 |
from US $10.53 |
||
|
20
|
20
90501-14095-00 Spring, Compression |
90501-14095-00 |
from US $1.70 |
||
|
21
|
21
905-01237-90-00 Spring, Compression |
905-01237-90-00 |
from US $1.84 |
||
|
22
|
22
2H0-12232-00-00 Damper |
2H0-12232-00-00 |
from US $16.58 |
||
|
23
|
23
90149-18191-00 Screw, Spec''l Shape |
90149-18191-00 |
from US $12.89 |
||
|
24
|
24
90179-18199-00 Nut, Spec''l Shape |
90179-18199-00 |
from US $10.63 |
||
|
25
|
25
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.70 |
||
|
26
|
26
1JN-12212-00-00 Case, Chain Tensioner |
1JN-12212-00-00 |
from US $47.83 |
||
