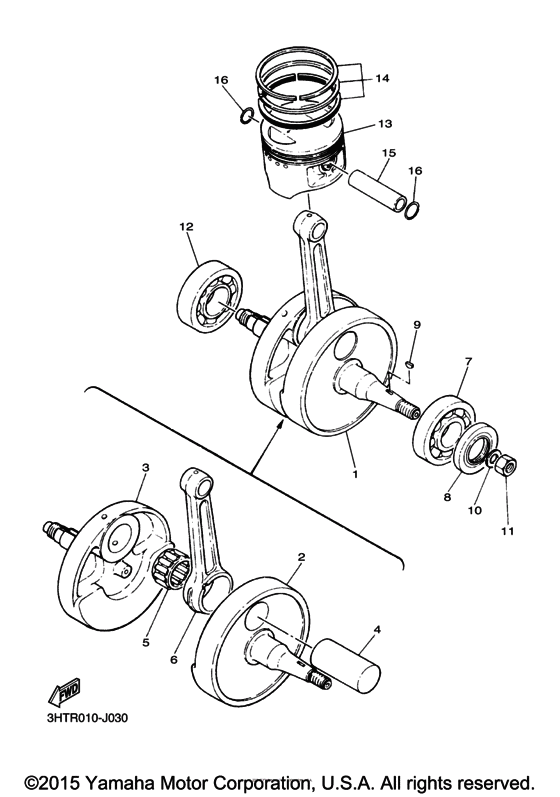

Crankshaft & Piston Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2H6-11400-01-00 Crankshaft Assy |
2H6-11400-01-00 |
from US $617.90 |
||
|
2
|
2
2H6-11412-00-00 Crank 1 |
2H6-11412-00-00 |
from US $284.60 |
||
|
3
|
3
2H6-11422-01-00 Crank 2 |
2H6-11422-01-00 |
from US $298.01 |
||
|
4
|
4
583-11681-01-00 Pin, Crank 1 |
583-11681-01-00 |
from US $56.65 |
||
|
5
|
5
93310-635A5-00 Bearing, Cylinder.#10 |
93310-635A5-00 |
from US $31.59 |
||
|
6
|
6
2H6-11651-00-00 Rod, Connecting |
2H6-11651-00-00 |
from US $95.35 |
||
|
7
|
7
933-06306-30-00 Bearing(3Kw) |
933-06306-30-00 |
from US $49.18 |
||
|
8
|
8
93102-30145-00 Oil Seal, Sd-Type |
93102-30145-00 |
from US $12.61 |
||
|
9
|
9
902-80050-48-00
Key, Woodruff
|
902-80050-48-00 |
— | ||
| replacement | |||||
|
9
|
9
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
10
|
10
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
11
|
11
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
12
|
12
93306-30702-00 Bearing |
93306-30702-00 |
from US $42.83 |
||
|
13
|
13
2H6-11631-01-96 Piston (Std) |
2H6-11631-01-96 |
from US $86.63 |
||
|
14
|
14
583-11610-02-00 STD Piston Ring Set (583-11610-0) |
583-11610-02-00 |
from US $59.27 |
||
|
15
|
15
2J2-11633-01-00 Pin, Piston |
2J2-11633-01-00 |
from US $20.26 |
||
|
16
|
16
934-50220-27-00 Circlip |
934-50220-27-00 |
from US $1.66 |
||
