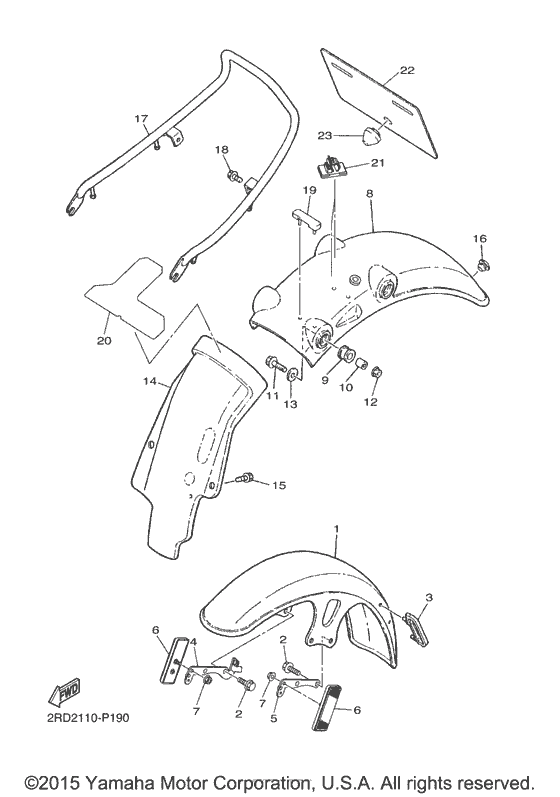

Fender Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1JN-21510-20-93 Front Fender CompUse for Color CHROME PLATED ( CM / 0093 ) |
1JN-21510-20-93 |
from US $248.38 |
||
|
2
|
2
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
2
|
2
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
2
|
2
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
3
|
3
3Y6-21518-00-00 Holder, Cable |
3Y6-21518-00-00 |
from US $7.65 |
||
|
4
|
4
2RD-25887-00-00 Holder, Brake Hose |
2RD-25887-00-00 |
from US $12.89 |
||
|
5
|
5
2RD-2588F-00-00 Holder, Brake Hose 5 |
2RD-2588F-00-00 |
from US $5.67 |
||
|
6
|
6
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $11.92 |
||
|
7
|
7
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
8
|
8
2J2-21610-11-93 Rear Fender CompUse for Color CHROME PLATED ( CM / 0093 ) |
2J2-21610-11-93 |
from US $281.85 |
||
|
9
|
9
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $2 |
||
|
10
|
10
903-87082-58-00 Collar |
903-87082-58-00 |
from US $3.40 |
||
|
11
|
11
95807-08035-00 Bolt, Flange |
95807-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
12
|
12
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
12
|
12
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
13
|
13
90201-08766-00 Washer, Plate |
90201-08766-00 |
from US $2.61 |
||
| replacement | |||||
|
13
|
13
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
14
|
14
2J2-21629-01-00 Guard, Mud |
2J2-21629-01-00 |
from US $57.89 |
||
|
15
|
15
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
15
|
15
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
15
|
15
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
16
|
16
90338-07043-00 Plug |
90338-07043-00 |
from US $1.71 |
||
|
17
|
17
3GW-21645-00-00 Stay, Rear |
3GW-21645-00-00 |
from US $78.98 |
||
| replacement | |||||
|
17
|
17
3GW-21645-01-00 |
3GW-21645-01-00 |
from US $79.42 |
||
|
18
|
18
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
18
|
18
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
18
|
18
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
19
|
19
3HT-21637-00-00 Clamp, Wire |
3HT-21637-00-00 |
from US $4.07 |
||
|
20
|
20
3HT-21669-00-00 Seal |
3HT-21669-00-00 |
from US $14.45 |
||
|
21
|
21
90464-62085-00 Clamp |
90464-62085-00 |
from US $1.84 |
||
|
22
|
22
2RD-28189-00-00 Plate, Number Support |
2RD-28189-00-00 |
US $46.93 |
||
|
23
|
23
3HT-21649-00-00 Damper |
3HT-21649-00-00 |
from US $5.38 |
||
