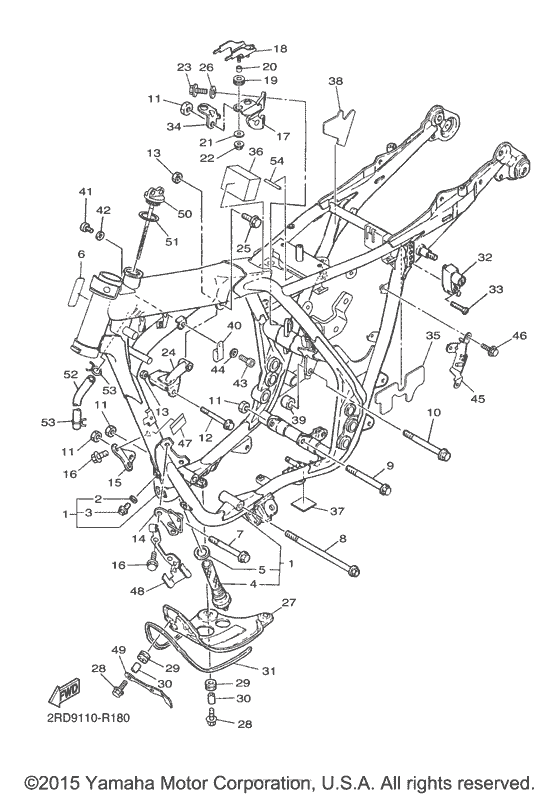

Frame Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2RD-21110-10-00 Frame Comp |
2RD-21110-10-00 |
from US $2,534.40 |
||
|
2
|
2
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
2
|
2
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
3
|
3
90105-08151-00 Bolt, Flange |
90105-08151-00 |
from US $1.70 |
||
|
4
|
4
583-21756-00-00 Net, Filter |
583-21756-00-00 |
from US $46.28 |
||
|
5
|
5
90430-22123-00 Gasket |
90430-22123-00 |
from US $4.53 |
||
|
6
|
6
3D8-2117G-00-00 Protector |
3D8-2117G-00-00 |
from US $4.97 |
||
|
7
|
7
90105-10747-00 Bolt, Washer Based(1Ru) |
90105-10747-00 |
from US $5.78 |
||
| replacement | |||||
|
7
|
7
95817-10100-00 Bolt, Flange |
95817-10100-00 |
from US $4.25 |
||
|
8
|
8
901-05103-70-00 Bolt, Flange |
901-05103-70-00 |
from US $9.35 |
||
|
9
|
9
901-05101-05-00 Bolt, Washer Based (2H7) |
901-05101-05-00 |
from US $5.81 |
||
| replacement | |||||
|
9
|
9
95817-10110-00 Bolt, Flange(6Ta) |
95817-10110-00 |
from US $3.54 |
||
|
10
|
10
90105-10119-00 Bolt,washer Based |
90105-10119-00 |
from US $7.69 |
||
| replacement | |||||
|
10
|
10
90109-101A0-00 Bolt(30W) |
90109-101A0-00 |
from US $9.21 |
||
|
11
|
11
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
|
12
|
12
90105-08118-00 Bolt, Washer Based |
90105-08118-00 |
from US $8.22 |
||
|
13
|
13
90185-08054-00 Nut, Self-Locking |
90185-08054-00 |
from US $4.53 |
||
| replacements | |||||
|
13
|
13
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
13
|
13
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
|
14
|
14
2J2-21315-40-00 Stay, Engine 1 |
2J2-21315-40-00 |
from US $30.60 |
||
|
15
|
15
2J2-21316-10-00 Stay, Engine 2 |
2J2-21316-10-00 |
from US $9.76 |
||
|
16
|
16
90105-08190-00 Bolt, Flange |
90105-08190-00 |
from US $1.07 |
||
| replacements | |||||
|
16
|
16
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
16
|
16
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
17
|
17
3HT-21317-00-00 Stay, Engine 3 |
3HT-21317-00-00 |
from US $19.55 |
||
|
18
|
18
3HT-2134V-00-00 Bracket |
3HT-2134V-00-00 |
from US $10.31 |
||
|
19
|
19
90480-10289-00 Grommet |
90480-10289-00 |
from US $1.70 |
||
|
20
|
20
90387-0600V-00 Collar(4Dn) |
90387-0600V-00 |
from US $1.70 |
||
|
21
|
21
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.70 |
||
|
22
|
22
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
22
|
22
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
23
|
23
90105-08129-00 Bolt, Flange |
90105-08129-00 |
from US $1.70 |
||
|
24
|
24
2J2-21318-10-00 Stay, Engine 4 |
2J2-21318-10-00 |
from US $19.04 |
||
|
25
|
25
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
26
|
26
90201-083P5-00 Washer, Plate |
90201-083P5-00 |
from US $1.70 |
||
|
27
|
27
3GW-21471-00-33 Protector, Engine (0033, Yb)YB |
3GW-21471-00-33 |
from US $55.66 |
||
|
28
|
28
90119-06227-00 Bolt, With Washer |
90119-06227-00 |
from US $1.56 |
||
| replacement | |||||
|
28
|
28
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
29
|
29
90480-13275-00 Grommet |
90480-13275-00 |
from US $2.98 |
||
|
30
|
30
90387-060A3-00 Collar (3H5) |
90387-060A3-00 |
from US $1.70 |
||
|
31
|
31
42N-28376-00-00 Trim |
42N-28376-00-00 |
US $11.33 |
||
| replacements | |||||
|
31
|
31
52E-28376-00-00
Trim
|
52E-28376-00-00 |
— | ||
|
31
|
31
46X-28376-01-00
Trim
|
46X-28376-01-00 |
— | ||
|
32
|
32
4R8-21308-01-00 Helmet Hanger Assy |
4R8-21308-01-00 |
from US $46.70 |
||
|
33
|
33
901-51060-77-00 Screw, Countersunk |
901-51060-77-00 |
from US $2.69 |
||
|
34
|
34
2J2-2144G-00-00 Stay, Stop Switch |
2J2-2144G-00-00 |
from US $8.78 |
||
|
35
|
35
3HT-2139X-01-00 Damper |
3HT-2139X-01-00 |
from US $2.30 |
||
|
36
|
36
3HT-2113B-00-00 Damper |
3HT-2113B-00-00 |
from US $3.26 |
||
|
37
|
37
3KJ-24723-00-00 Damper, Seat |
3KJ-24723-00-00 |
from US $2.13 |
||
|
38
|
38
3HT-2117F-10-00 Cover |
3HT-2117F-10-00 |
from US $7.23 |
||
|
39
|
39
2J2-21459-01-00 Spacer |
2J2-21459-01-00 |
from US $4.25 |
||
|
40
|
40
90461-08113-00 Clamp |
90461-08113-00 |
from US $7.51 |
||
|
41
|
41
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
41
|
41
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
42
|
42
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
43
|
43
97007-05010-00 Bolt |
97007-05010-00 |
from US $1.70 |
||
| replacement | |||||
|
43
|
43
97027-05010-00 Bolt, Hexagon |
97027-05010-00 |
from US $1.70 |
||
|
44
|
44
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
45
|
45
3HT-2137F-00-00 Stay 1 |
3HT-2137F-00-00 |
from US $30.47 |
||
|
46
|
46
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
46
|
46
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
47
|
47
32C-21686-00-00 Plate, Routing 2FOR CALIFORNIA |
32C-21686-00-00 |
US $10.13 |
||
|
48
|
48
2RD-2419F-00-00 Bracket, CanistorFOR CALIFORNIA |
2RD-2419F-00-00 |
US $541.37 |
||
|
49
|
49
2RD-2413X-00-00 PlateFOR CALIFORNIA |
2RD-2413X-00-00 |
US $374.47 |
||
|
50
|
50
2J2-21771-10-00 Body, Cap |
2J2-21771-10-00 |
from US $15.12 |
||
|
51
|
51
90430-27124-00 Gasket |
90430-27124-00 |
from US $1.70 |
||
|
52
|
52
90445-11289-00 Hose (L200) |
90445-11289-00 |
from US $8.36 |
||
|
53
|
53
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
53
|
53
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
53
|
53
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
54
|
54
5VN-24188-00-00 Mold, Fuel Tank |
5VN-24188-00-00 |
from US $3.12 |
||
