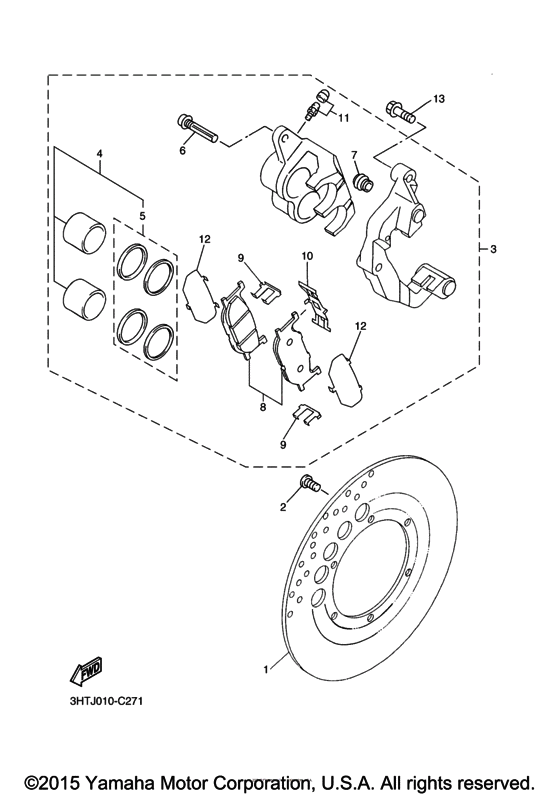

Front brake caliper Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3JB-2582U-10-00 Disc, Brake (Right) |
3JB-2582U-10-00 |
from US $356 |
||
|
2
|
2
901-11080-03-00
Bolt,hex. Socket But
|
901-11080-03-00 |
— | ||
| replacement | |||||
|
2
|
2
901-11080-80-00 Bolt,hex. Socket Button |
901-11080-80-00 |
from US $1.28 |
||
|
3
|
3
3HT-2580U-20-00 Caliper Assy (Right) |
3HT-2580U-20-00 |
from US $384.57 |
||
|
4
|
4
3YX-W0057-00-00 Piston Assy, Caliper |
3YX-W0057-00-00 |
from US $46.70 |
||
|
5
|
5
3JB-W0047-00-00
Caliper Seal Kit
|
3JB-W0047-00-00 |
— | ||
| replacement | |||||
|
5
|
5
3JB-25803-00-00 Caliper Seal Kit |
3JB-25803-00-00 |
from US $26.49 |
||
|
6
|
6
5JW-25914-00-00 Pin, Slide |
5JW-25914-00-00 |
from US $5.10 |
||
| replacement | |||||
|
6
|
6
5JW-25914-10-00 Pin, Slide |
5JW-25914-10-00 |
from US $5.10 |
||
|
7
|
7
4TT-25937-00-00 Boot 2 |
4TT-25937-00-00 |
from US $8.50 |
||
|
8
|
8
4TR-W0045-00-00
Brake Pad Kit
|
4TR-W0045-00-00 |
— | ||
| replacement | |||||
|
8
|
8
3LP-25805-00-00 Brake Pad Kit |
3LP-25805-00-00 |
from US $49.19 |
||
|
9
|
9
4BP-25919-00-00 Support, Pad |
4BP-25919-00-00 |
from US $15.87 |
||
|
10
|
10
3YX-25929-00-00 Spring, Anti Rattle |
3YX-25929-00-00 |
from US $20.12 |
||
|
11
|
11
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
11
|
11
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $8.08 |
||
|
12
|
12
4DN-25827-00-00 Shim, Caliper |
4DN-25827-00-00 |
from US $18.28 |
||
|
13
|
13
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.13 |
||
