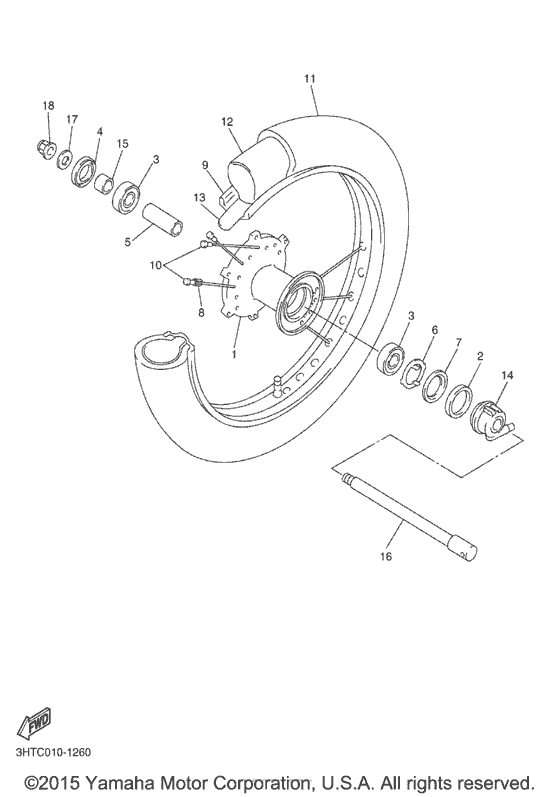

Front wheel Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3JB-25111-00-00 Hub, Front |
3JB-25111-00-00 |
from US $259.74 |
||
|
2
|
2
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $11.05 |
||
|
3
|
3
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
4
|
4
93106-28023-00 Oil Seal |
93106-28023-00 |
from US $4.82 |
||
|
5
|
5
90560-17126-00 Spacer |
90560-17126-00 |
from US $18.56 |
||
|
6
|
6
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $3.54 |
||
|
7
|
7
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $2.98 |
||
|
8
|
8
3HT-25398-00-00 Balancer, Wheel (15G)UN |
3HT-25398-00-00 |
from US $8.08 |
||
|
9
|
9
94418-18003-00 Rim (1.85-18) |
94418-18003-00 |
from US $298.43 |
||
|
10
|
10
5JX-25104-00-00 Spoke Set, Front |
5JX-25104-00-00 |
from US $70.19 |
||
|
11
|
11
941-09180-15-00 Tire (90/100-18M/c 54S Bt45F)BRIDGESTONE |
941-09180-15-00 |
US $299.97 |
||
|
12
|
12
942-09180-03-00 TubeBRIDGESTONE |
942-09180-03-00 |
US $45.68 |
||
|
13
|
13
94330-18087-00 Band, Rim (2.15-18)BRIDGESTONE |
94330-18087-00 |
from US $4.39 |
||
| replacement | |||||
|
13
|
13
94340-18086-00 Band, Rim (2.50-18)BRIDGESTONE |
94340-18086-00 |
from US $4.39 |
||
|
14
|
14
1FK-25190-02-00 Gear Unit Assy |
1FK-25190-02-00 |
from US $88.01 |
||
|
15
|
15
90387-177R1-00 Collar |
90387-177R1-00 |
from US $9.35 |
||
|
16
|
16
341-25181-02-00 Axle, Wheel |
341-25181-02-00 |
from US $69.55 |
||
| replacement | |||||
|
16
|
16
999-99040-72-00 Axle, Wheel |
999-99040-72-00 |
from US $72.28 |
||
|
17
|
17
92903-14200-00 Washer, Plain |
92903-14200-00 |
US $1.42 |
||
| replacement | |||||
|
17
|
17
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
18
|
18
95604-14200-00 Nut, Self-Locking |
95604-14200-00 |
from US $5.30 |
||
