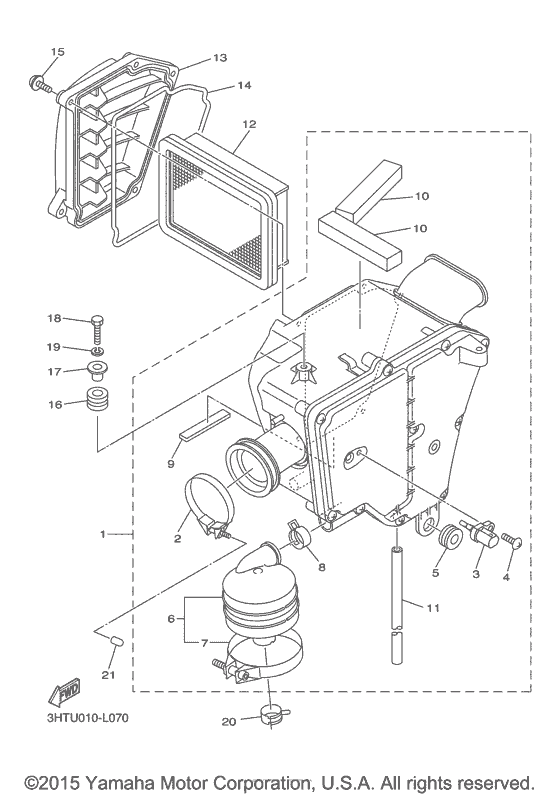

Intake Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HT-14401-R0-00 Air Cleaner Case Assy |
3HT-14401-R0-00 |
from US $281.86 |
||
|
2
|
2
90450-55001-00 Hose Clamp Assy |
90450-55001-00 |
from US $7.63 |
||
| replacement | |||||
|
2
|
2
904-50550-03-00 Hose Clamp Assy |
904-50550-03-00 |
from US $7.63 |
||
|
3
|
3
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.81 |
||
|
4
|
4
98902-05012-00 Screw,binding |
98902-05012-00 |
from US $1.26 |
||
| replacements | |||||
|
4
|
4
98904-05012-00 Screw, Bind |
98904-05012-00 |
from US $2.21 |
||
|
4
|
4
98907-05012-00 Screw, Bind |
98907-05012-00 |
from US $1.42 |
||
|
5
|
5
90480-14329-00 Grommet |
90480-14329-00 |
from US $1.84 |
||
|
6
|
6
3HT-15370-R0-00 Breather Assy |
3HT-15370-R0-00 |
from US $53.93 |
||
|
7
|
7
90450-73002-00 Hose Clamp Assy |
90450-73002-00 |
from US $9.78 |
||
|
8
|
8
90467-20154-00 Clip |
90467-20154-00 |
from US $0.93 |
||
|
9
|
9
3HT-14425-R0-00 Damper 1 |
3HT-14425-R0-00 |
from US $7.65 |
||
|
10
|
10
3HT-14426-R0-00 Damper 2 |
3HT-14426-R0-00 |
from US $4.68 |
||
|
11
|
11
90445-10140-00 Hose (L280) |
90445-10140-00 |
from US $6.52 |
||
| replacement | |||||
|
11
|
11
904-45101-44-00 Hose (L450) |
904-45101-44-00 |
from US $4.64 |
||
|
12
|
12
4B5-14451-00-00 Element, Air Cleaner |
4B5-14451-00-00 |
from US $34.40 |
||
|
13
|
13
3HT-1441A-R0-00 Cover, Cleaner Case 1 |
3HT-1441A-R0-00 |
from US $29.11 |
||
|
14
|
14
3HT-14462-R0-00 Seal |
3HT-14462-R0-00 |
from US $8.78 |
||
|
15
|
15
98902-05020-00 Screw, Bind |
98902-05020-00 |
from US $1.42 |
||
|
16
|
16
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
16
|
16
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
17
|
17
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
18
|
18
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
19
|
19
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
20
|
20
90467-20154-00 Clip |
90467-20154-00 |
from US $0.93 |
||
|
21
|
21
895-14169-00-00 Cap |
895-14169-00-00 |
from US $4.11 |
||
