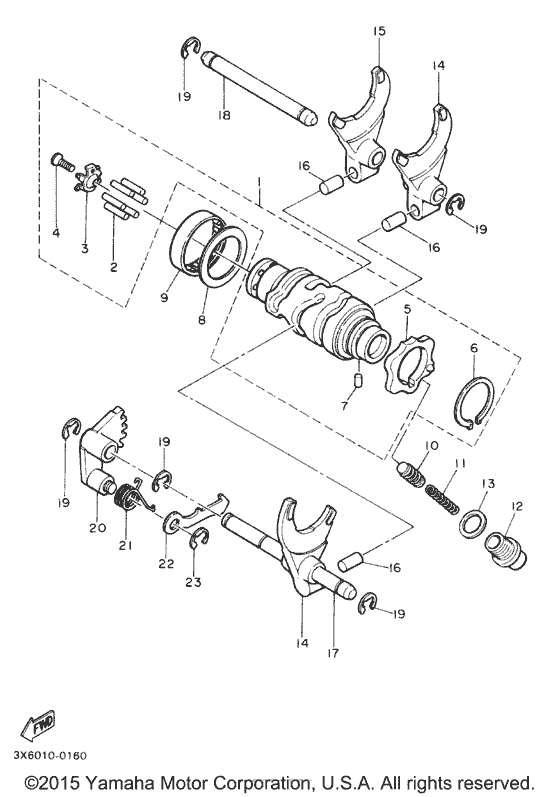

Shift shaft Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2J2-18540-00-00 Shift Cam Assembly |
2J2-18540-00-00 |
from US $128.35 |
||
|
2
|
2
93604-18100-00 Pin, Dowel |
93604-18100-00 |
from US $1.84 |
||
|
3
|
3
434-18561-00-00 Plate, Side 1 |
434-18561-00-00 |
from US $2.98 |
||
|
4
|
4
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
4
|
4
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.98 |
||
|
5
|
5
2J2-W1814-00-00 Plate, Stopper |
2J2-W1814-00-00 |
from US $16.81 |
||
|
6
|
6
93410-30012-00 Clip |
93410-30012-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
7
|
7
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
8
|
8
90201-32673-00 Washer, Plate |
90201-32673-00 |
from US $5.18 |
||
|
9
|
9
93315-23208-00 Bearing |
93315-23208-00 |
from US $12.33 |
||
|
10
|
10
1J7-18547-00-00 Stopper, Cam |
1J7-18547-00-00 |
from US $10.06 |
||
|
11
|
11
90501-10062-00 Spring Compression278185570000 |
90501-10062-00 |
from US $1.70 |
||
|
12
|
12
90109-14001-00 Bolt |
90109-14001-00 |
from US $7.79 |
||
|
13
|
13
904-30140-43-00 Gasket |
904-30140-43-00 |
from US $1.13 |
||
|
14
|
14
364-18511-00-00 Fork, Shift 1 |
364-18511-00-00 |
from US $79.03 |
||
|
15
|
15
363-18511-00-00 Fork, Shift 1 |
363-18511-00-00 |
from US $75.11 |
||
|
16
|
16
90250-08017-00 Pin 2781855200 |
90250-08017-00 |
from US $1.70 |
||
|
17
|
17
363-18531-00-00 Bar, Shif Frk Gde 1 |
363-18531-00-00 |
US $16.01 |
||
|
18
|
18
363-18535-00-00 Bar, Shift Fork Guide 2 |
363-18535-00-00 |
from US $11.02 |
||
|
19
|
19
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
20
|
20
434-18122-00-00 Lever, Shift 2 |
434-18122-00-00 |
from US $46.56 |
||
|
21
|
21
90508-08334-00 Spring, Torsion |
90508-08334-00 |
from US $4.39 |
||
|
22
|
22
498-18151-03-00 Lever, Shift 3 |
498-18151-03-00 |
from US $11.19 |
||
|
23
|
23
990-01076-00-00
Clip
|
990-01076-00-00 |
— | ||
| replacement | |||||
|
23
|
23
99080-07600-00 Clip |
99080-07600-00 |
from US $1.66 |
||
