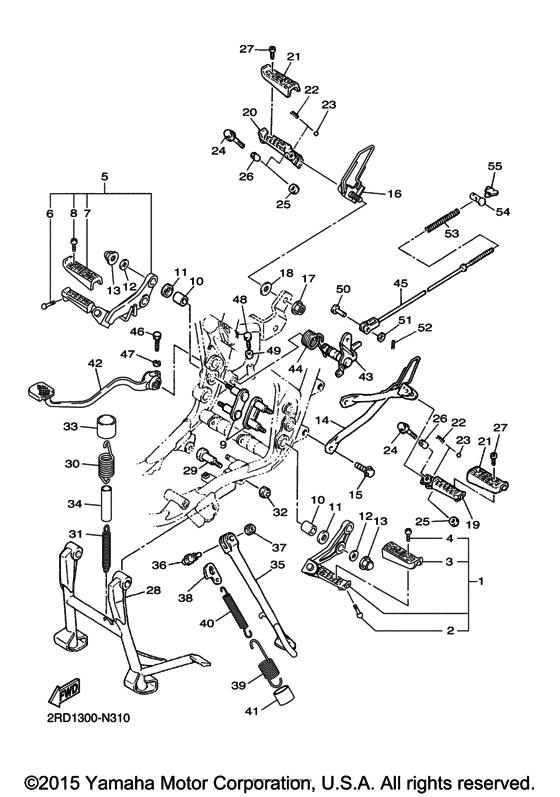

Stand & Footrest Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GW-27410-20-00 Front Footrest Assy (Left)レフト |
3GW-27410-20-00 |
from US $151.98 |
||
|
2
|
2
90109-08018-00 Bolt |
90109-08018-00 |
from US $3.40 |
||
| replacement | |||||
|
2
|
2
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.40 |
||
|
3
|
3
1JK-27413-00-00 Cover, Footrest |
1JK-27413-00-00 |
from US $18.70 |
||
|
4
|
4
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
4
|
4
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
5
|
5
3GW-27420-20-00 Front Footrest Assy (Right)ライト |
3GW-27420-20-00 |
from US $151.98 |
||
|
6
|
6
90109-08018-00 Bolt |
90109-08018-00 |
from US $3.40 |
||
| replacement | |||||
|
6
|
6
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.40 |
||
|
7
|
7
1JK-27413-00-00 Cover, Footrest |
1JK-27413-00-00 |
from US $18.70 |
||
|
8
|
8
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
8
|
8
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
9
|
9
2J2-27416-10-00 Bolt, Footrest |
2J2-27416-10-00 |
from US $14.99 |
||
|
10
|
10
2J2-27414-01-00 Damper, Footrest |
2J2-27414-01-00 |
from US $9.49 |
||
|
11
|
11
90209-12102-00 Washer, Spec''l Shap |
90209-12102-00 |
from US $1.84 |
||
|
12
|
12
90201-08043-00 Washer, Plate |
90201-08043-00 |
from US $1.34 |
||
|
13
|
13
90176-08068-00 Nut, Crown |
90176-08068-00 |
from US $2.55 |
||
|
14
|
14
3GW-27432-00-33 Bracket 1 (0033,yb)YB |
3GW-27432-00-33 |
from US $122.69 |
||
|
15
|
15
95807-10020-00 Bolt, Flange |
95807-10020-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
16
|
16
3HT-27442-00-00 Bracket 2 |
3HT-27442-00-00 |
from US $71.80 |
||
|
17
|
17
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
18
|
18
90201-12027-00 Washer, Plate |
90201-12027-00 |
from US $2.32 |
||
|
19
|
19
4BR-27431-01-00 Footrest, Rear 1 |
4BR-27431-01-00 |
from US $25.22 |
||
|
20
|
20
4BR-27441-01-00 Footrest, Rear 2 |
4BR-27441-01-00 |
from US $25.22 |
||
|
21
|
21
2GH-27413-00-00 Cover, Footrest |
2GH-27413-00-00 |
from US $21.54 |
||
|
22
|
22
90501-15001-00 Spring, Compression |
90501-15001-00 |
from US $1.56 |
||
|
23
|
23
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
23
|
23
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
24
|
24
95027-06035-00 Bolt, Flange |
95027-06035-00 |
from US $1.42 |
||
| replacement | |||||
|
24
|
24
90105-06X19-00 Bolt, FlangeBolt, washer based |
90105-06X19-00 |
US $2.81 |
||
|
25
|
25
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
26
|
26
90387-064H8-00 Collar |
90387-064H8-00 |
from US $1.35 |
||
|
27
|
27
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
27
|
27
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
28
|
28
2J2-27111-00-00 Stand, Main |
2J2-27111-00-00 |
from US $124.62 |
||
|
29
|
29
90109-102G9-00 Bolt |
90109-102G9-00 |
from US $5.67 |
||
|
30
|
30
905-06450-02-00 Spring, Tension |
905-06450-02-00 |
US $30.83 |
||
|
31
|
31
905-06290-07-00 Spring, Tension |
905-06290-07-00 |
US $21.51 |
||
|
32
|
32
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $3.83 |
||
|
33
|
33
904-45420-02-00 Hose |
904-45420-02-00 |
US $7.43 |
||
|
34
|
34
90445-217G3-00 Hose (L70) |
90445-217G3-00 |
from US $5.85 |
||
| replacement | |||||
|
34
|
34
90445-212G3-00 Hose (L95) |
90445-212G3-00 |
from US $9.74 |
||
|
35
|
35
2RD-27311-00-00 Stand, Side |
2RD-27311-00-00 |
US $138.40 |
||
|
36
|
36
90109-10005-00 Bolt |
90109-10005-00 |
from US $3.54 |
||
| replacement | |||||
|
36
|
36
90109-10473-00 Bolt |
90109-10473-00 |
from US $3.54 |
||
|
37
|
37
90185-10037-00 Nut, Self-Locking |
90185-10037-00 |
from US $3.83 |
||
|
38
|
38
3VD-27315-00-00 Link, Side Stand |
3VD-27315-00-00 |
from US $5.81 |
||
|
39
|
39
90506-26225-00 Spring, Tension |
90506-26225-00 |
from US $6.52 |
||
|
40
|
40
90506-18224-00 Spring, Tension |
90506-18224-00 |
from US $5.10 |
||
|
41
|
41
90445-266H4-00 Hose (L55) |
90445-266H4-00 |
from US $30.46 |
||
|
42
|
42
3HT-27211-00-00 Pedal, Brake |
3HT-27211-00-00 |
from US $111.36 |
||
|
43
|
43
3H0-27212-00-00 Shaft, Brake Pedal |
3H0-27212-00-00 |
from US $46.28 |
||
|
44
|
44
90508-40381-00 Spring, Torsion |
90508-40381-00 |
from US $8.22 |
||
|
45
|
45
3H0-27231-00-00 Rod, Brake |
3H0-27231-00-00 |
from US $20.69 |
||
|
46
|
46
90109-06468-00 Bolt |
90109-06468-00 |
from US $1.56 |
||
|
47
|
47
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
48
|
48
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
48
|
48
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
49
|
49
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
49
|
49
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
50
|
50
90240-08067-00 Pin, Clevis |
90240-08067-00 |
from US $4.45 |
||
|
51
|
51
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
52
|
52
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
52
|
52
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
52
|
52
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
53
|
53
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
54
|
54
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
55
|
55
90175-06013-00 Nut, Wing |
90175-06013-00 |
from US $1.84 |
||
| replacement | |||||
|
55
|
55
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
