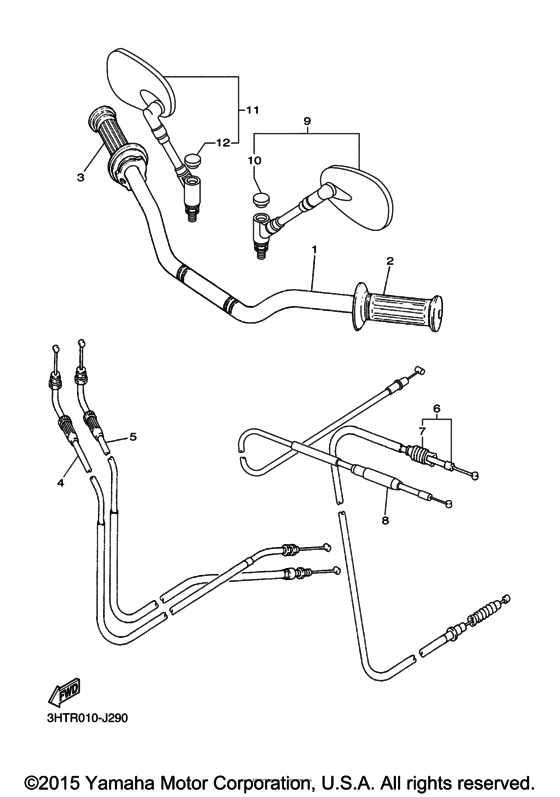

Steering handle & cable Diagram Yamaha SR400
- Year
- 2016
- Sales region
- USA
- Базовая модель
- SR400GB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33Y-26111-10-00
Handlebar
|
33Y-26111-10-00 |
— | ||
| replacement | |||||
|
1
|
1
33Y-26111-11-00 Handlebar |
33Y-26111-11-00 |
from US $50.44 |
||
|
2
|
2
2H7-26241-00-00 Grip Lh |
2H7-26241-00-00 |
from US $11.33 |
||
| replacement | |||||
|
2
|
2
2H7-26241-01-00 |
2H7-26241-01-00 |
from US $11.33 |
||
|
3
|
3
2J2-26240-00-00 Grip Assembly Rh |
2J2-26240-00-00 |
from US $17.96 |
||
| replacement | |||||
|
3
|
3
2J2-26240-01-00 |
2J2-26240-01-00 |
from US $19.13 |
||
|
4
|
4
3HT-26311-00-00 Cable, Throttle 1 |
3HT-26311-00-00 |
from US $40.20 |
||
|
5
|
5
3HT-26312-00-00 Cable, Throttle 2 |
3HT-26312-00-00 |
from US $38.96 |
||
|
6
|
6
3HT-26335-00-00 Cable, clutch |
3HT-26335-00-00 |
from US $30.60 |
||
|
7
|
7
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
8
|
8
2H6-26331-10-00 Cable, Starter 1 |
2H6-26331-10-00 |
from US $19.71 |
||
|
9
|
9
5YU-26280-11-00 Rear View Mirror Assy (Left)レフト |
5YU-26280-11-00 |
from US $105.83 |
||
|
10
|
10
5PS-26133-20-00 Cap |
5PS-26133-20-00 |
from US $4.53 |
||
|
11
|
11
5YU-26290-11-00 Rear View Mirror Assy (Right)ライト |
5YU-26290-11-00 |
from US $105.83 |
||
|
12
|
12
5PS-26133-20-00 Cap |
5PS-26133-20-00 |
from US $4.53 |
||
