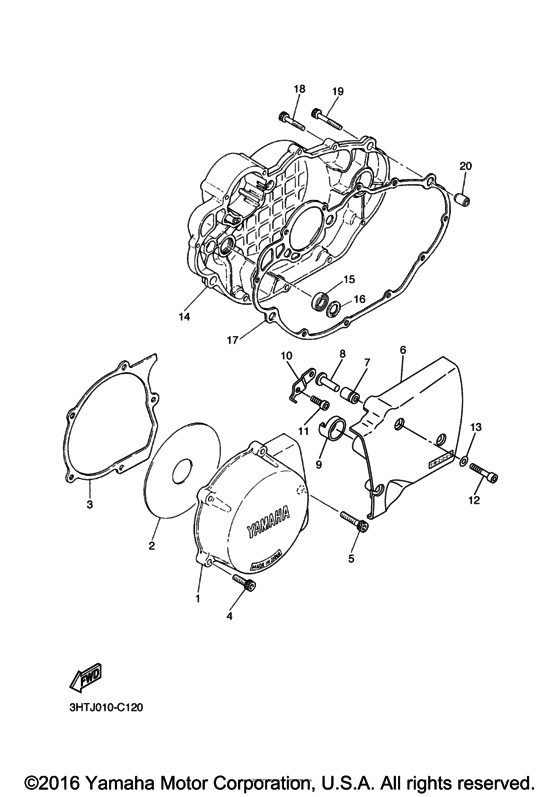

Crankcase cover 1 Diagram Yamaha SR400
- Year
- 2017
- Model code
- 2RDD
- Sales region
- USA
- Базовая модель
- SR400HB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GW-15411-00-00 Cover, Crankcase 1 |
3GW-15411-00-00 |
from US $90.77 |
||
|
2
|
2
3HT-15326-00-00 Damper 2 |
3HT-15326-00-00 |
from US $11.33 |
||
|
3
|
3
3GW-15451-00-00 Gasket, Crankcase Cover 1 |
3GW-15451-00-00 |
from US $10.20 |
||
|
4
|
4
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.56 |
||
|
5
|
5
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.42 |
||
|
6
|
6
3HT-15421-10-00 Cover, Crankcase 2 |
3HT-15421-10-00 |
from US $74.39 |
||
|
7
|
7
3HT-15486-00-00 Grommet |
3HT-15486-00-00 |
from US $7.79 |
||
|
8
|
8
90387-0609L-00 Collar |
90387-0609L-00 |
from US $4.68 |
||
|
9
|
9
3HT-15663-00-00 Seal |
3HT-15663-00-00 |
from US $2.77 |
||
|
10
|
10
3HT-15544-00-00 Stay 1 |
3HT-15544-00-00 |
from US $4.73 |
||
|
11
|
11
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
12
|
12
91314-06035-00 Bolt, Hexagon Socket Head |
91314-06035-00 |
from US $1.42 |
||
|
13
|
13
90201-065F1-00 Washer, Plate |
90201-065F1-00 |
US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
14
|
14
2J2-15431-01-00
Cover, Crankcase 3 (2J2-15431-0
|
2J2-15431-01-00 |
— | ||
| replacement | |||||
|
14
|
14
2J2-W1542-00-00 Cover, Crankcase 3 (2J2-15431-0) |
2J2-W1542-00-00 |
from US $510.36 |
||
|
15
|
15
93101-14089-00 Oil Seal |
93101-14089-00 |
from US $9.07 |
||
|
16
|
16
99009-25500-00 Circlip |
99009-25500-00 |
from US $1.56 |
||
|
17
|
17
3HT-15462-R0-00
Gasket, Crankcase Cover 3
|
3HT-15462-R0-00 |
— | ||
| replacement | |||||
|
17
|
17
3HT-15462-R1-00 Gasket, Crankcase Cover 3 |
3HT-15462-R1-00 |
from US $21.89 |
||
|
18
|
18
91314-06030-00 Bolt, Hexagon Socket Head |
91314-06030-00 |
from US $1.42 |
||
|
19
|
19
91314-06040-00 Bolt, Hexagon Socket Head |
91314-06040-00 |
from US $1.42 |
||
|
20
|
20
91812-16001-00 Pin, Dowel(J38) |
91812-16001-00 |
from US $3.83 |
||
