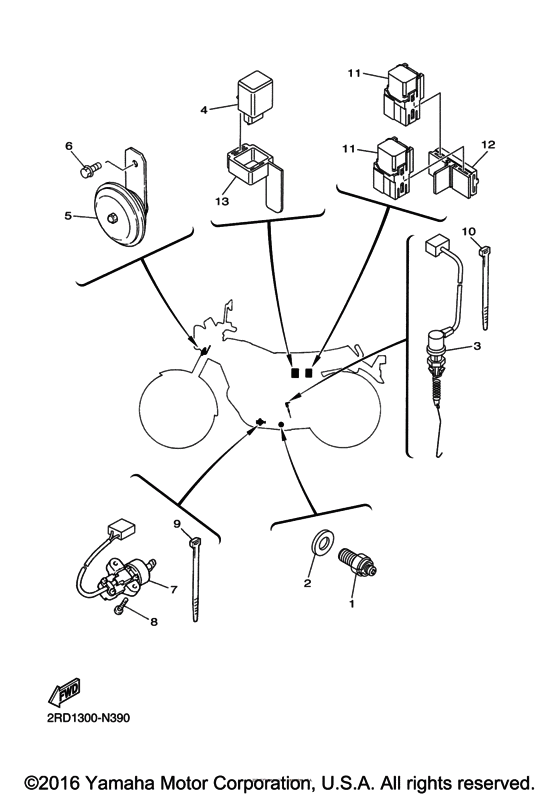

Electrical 2 Diagram Yamaha SR400
- Year
- 2017
- Model code
- 2RDD
- Sales region
- USA
- Базовая модель
- SR400HB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
2
|
2
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
3
|
3
3HT-82530-00-00 Stop Switch Assy |
3HT-82530-00-00 |
from US $30.11 |
||
|
4
|
4
3HT-83350-00-00 Flasher Relay Assy |
3HT-83350-00-00 |
from US $51.95 |
||
| replacement | |||||
|
4
|
4
3HT-83350-01-00 Flasher Relay Assy |
3HT-83350-01-00 |
from US $51.12 |
||
|
5
|
5
25G-83371-00-00 Horn |
25G-83371-00-00 |
from US $58.17 |
||
|
6
|
6
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
7
|
7
3D8-82566-70-00 Switch, Side Stand |
3D8-82566-70-00 |
from US $64.52 |
||
|
8
|
8
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
8
|
8
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
9
|
9
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
10
|
10
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
11
|
11
5UM-81950-E0-00 Relay Assy (5Um-E0) |
5UM-81950-E0-00 |
from US $7.94 |
||
|
12
|
12
5XT-81952-00-00 Holder, Relay |
5XT-81952-00-00 |
from US $16.86 |
||
|
13
|
13
3HT-82176-00-00 Damper |
3HT-82176-00-00 |
from US $13.88 |
||
